IN32E332-S

IN32E332-S
Available

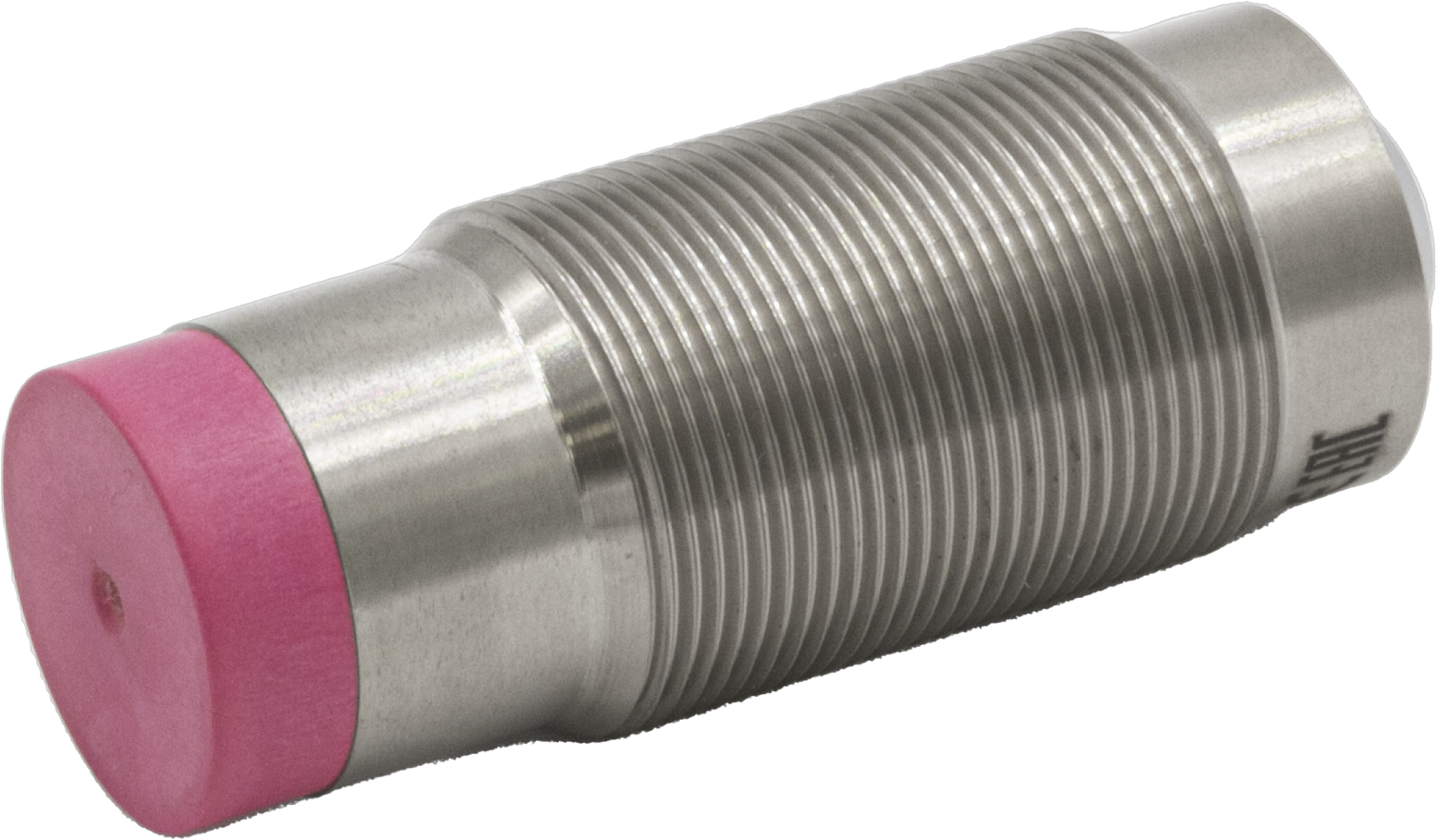

Sensor inductive, M32x1.5 83.5long, non-flush, Sn: 13, 0-230°C, connection to amplifier, lemo connector, IP67, stainl. steel
circuit diagram

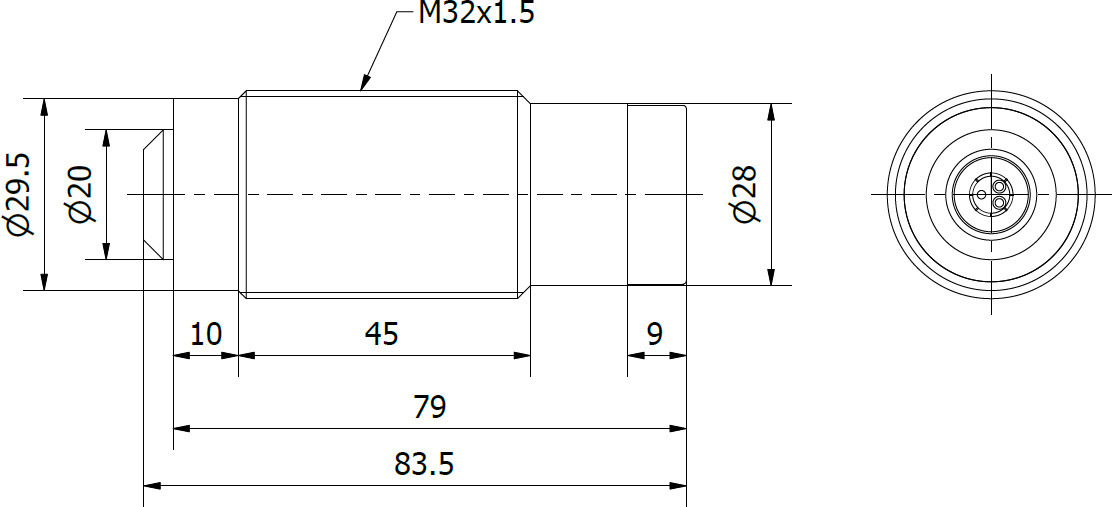

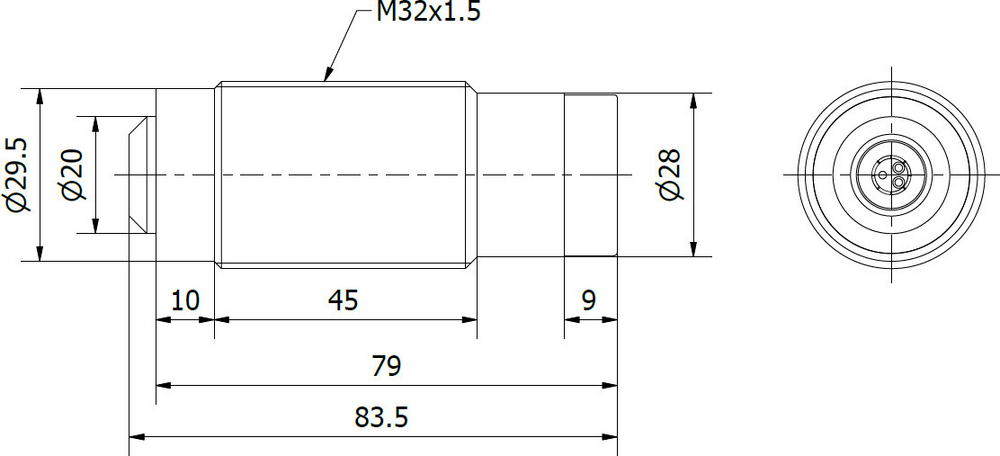

dimensional drawing
3D model
Compare

Inductive sensors - Increased ambient temperature

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Type of switching function
Type of electrical connection
Lemo plug connector
Relative hysteresis
20%
Switching distance
13mm
Switching frequency
200Hz
Electrical connection

Mechanical properties

Alignment of cable entry
axial
Design
Cylinder, screw-thread
Thread length
45mm
Thread pitch
1.5mm
Length
83.5mm
Mechanical mounting condition for sensor
non-flush
Degree of protection (IP)
IP67
Active area material of sensor
Plastic (Vectra®)
Housing material
Stainless steel 1.4305
Thread dimension
M32
dimensions

Other properties

Ambient temperature
0 - 230°C
Classification Class
eClass-7.0 27270101
eClass-7.1 27270101
eClass-8.0 27270101
eClass-9.0 27270101
eClass-9.1 27270101
ETIM-6.0 EC002714
ETIM-7.0 EC002714
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 700 special devices
packaging dimensions 97 x 58 x 157mm
gross weight 331g
1,78kg CO₂e
Customs tariff number 85365019
WEEE number 40951076
