Inductive sensors - Full-metal housing
IO120128
| amount | price | discount |
|---|---|---|
| 1 | 107,70 € | – |
| 5 | 104,47 € | 3% / 3,23 € |
| 10 | 102,32 € | 5% / 5,39 € |
| 20 | 99,08 € | 8% / 8,62 € |
| 50 | 94,78 € | 12% / 12,92 € |
Scarce

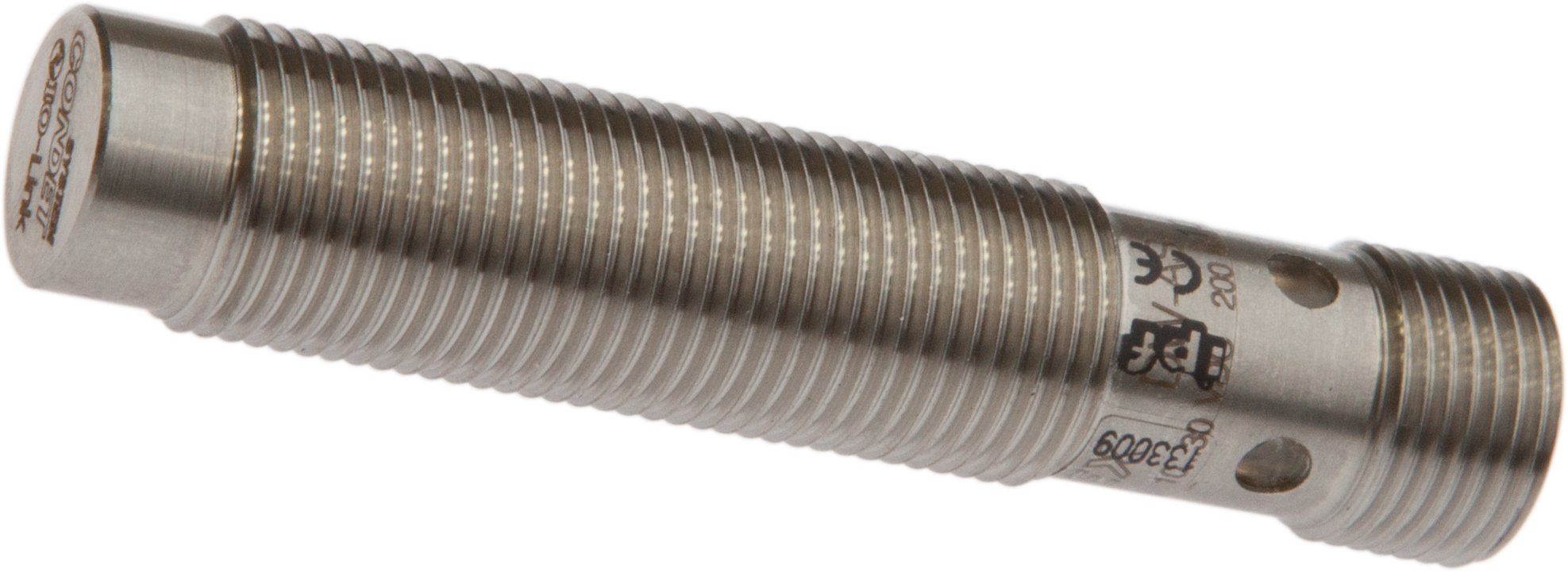

Sensor inductive, all-steel, M12x1 60long, non-flush, Sn: 15, 10-30V DC, -25-85°C, PNP NO, IO-Link, M12 plug connector 4-pin, stainl. steel
including Nut, Toothed washer
Compare
Inductive sensors - Full-metal housing
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Readiness delay
- 10ms
- Relative hysteresis
- 15%
- Correction factor (aluminum)
- 1
- Correction factor (copper)
- 0.7
- Correction factor (brass)
- 1.2
- Correction factor (St37)
- 1
- Correction factor (stainless steel V2A: 1mm)
- 0.5
- Correction factor (stainless steel V2A: 2mm)
- 0.95
- No-load current
- 10mA
- Max. line length
- 300m
- Number of pins
- 4
- Relative repeat accuracy
- 5%
- Residual ripple
- 20%
- Switching distance
- 15mm
- Switching frequency
- 300Hz
- Voltage drop
- 2V
- Supported communication interface
- IO-Link
- Display
- LED display
- Short circuit protection, Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Pressure resistance
- 80bar
- Thread length
- 36mm
- Thread pitch
- 1mm
- Cable infeed
- axial
- Length
- 60mm
- Material thickness
- 0.4mm
- Mechanical mounting condition for sensor
- non-flush
- Active area material of sensor
- Stainless steel 1.4305
- Housing material
- Stainless steel 1.4305
- Thread dimension
- M12

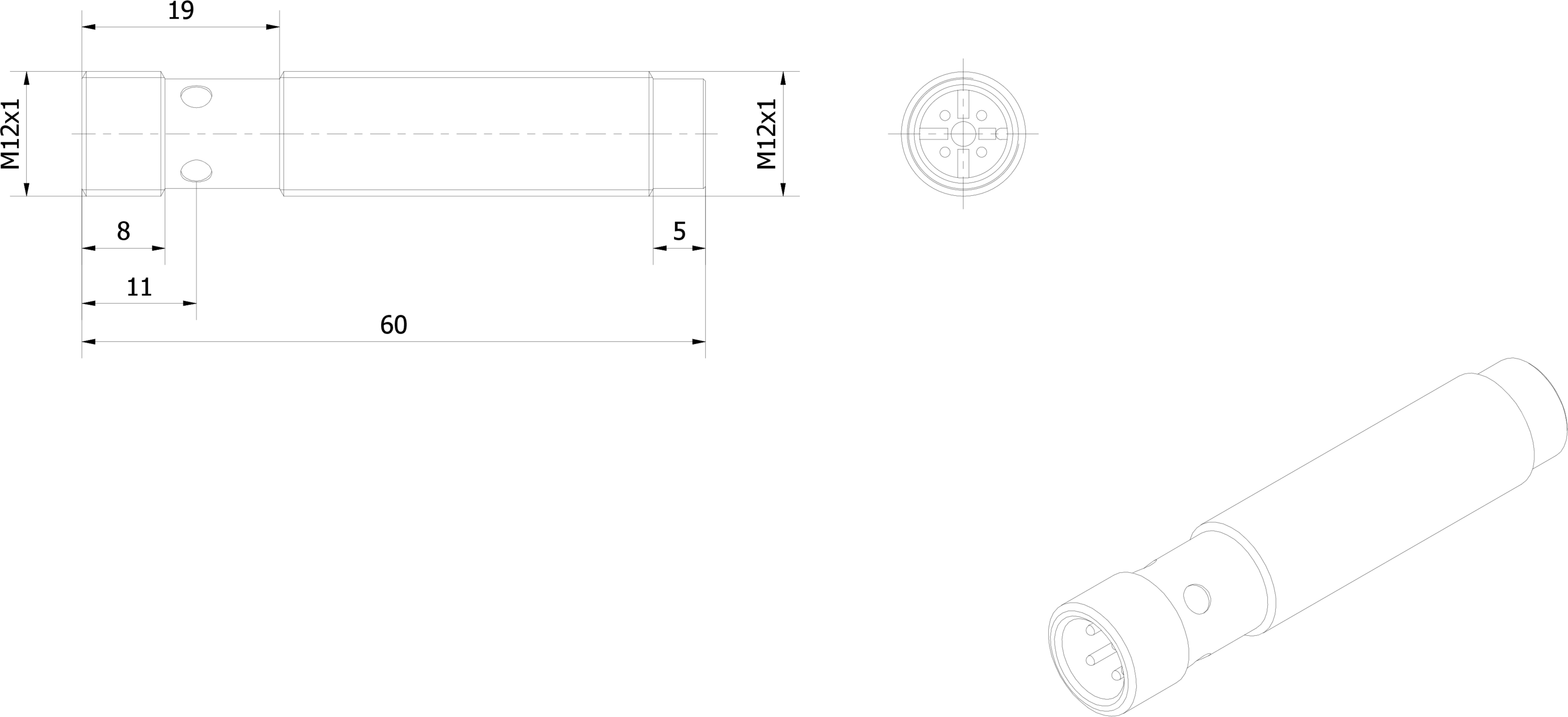

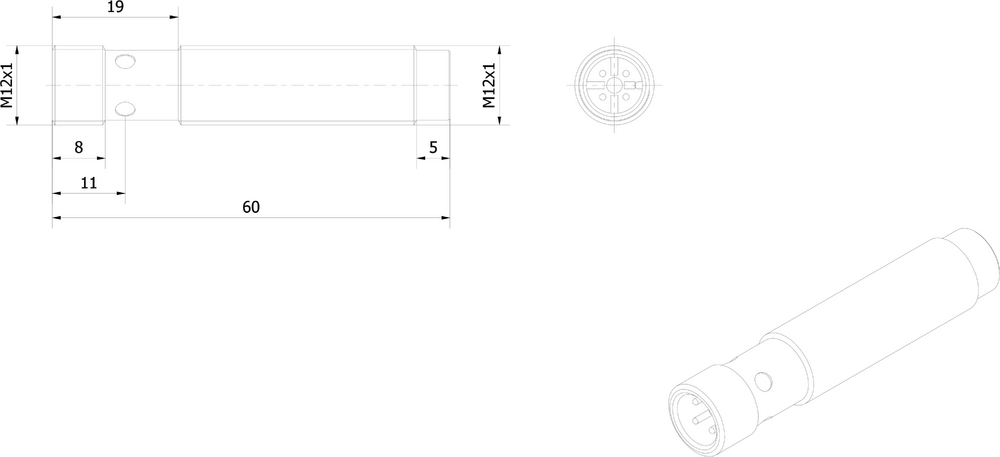

- dimensions
Other properties
- Ambient temperature
- -25 - 85°C
- Reference medium / object
- Standard measuring plate FE360 45x45x1mm
- IO-Link version
- V1.0.1
- Harsh environmental conditions
- Yes
