Inductive sensors - Chip resistant

IO12012F

IO12012F
List price
107,80 €
amount price discount
1 107,80 €
5 104,57 € 3% / 3,23 €
10 102,41 € 5% / 5,39 €
20 99,18 € 8% / 8,62 €
50 94,86 € 12% / 12,94 €
Available

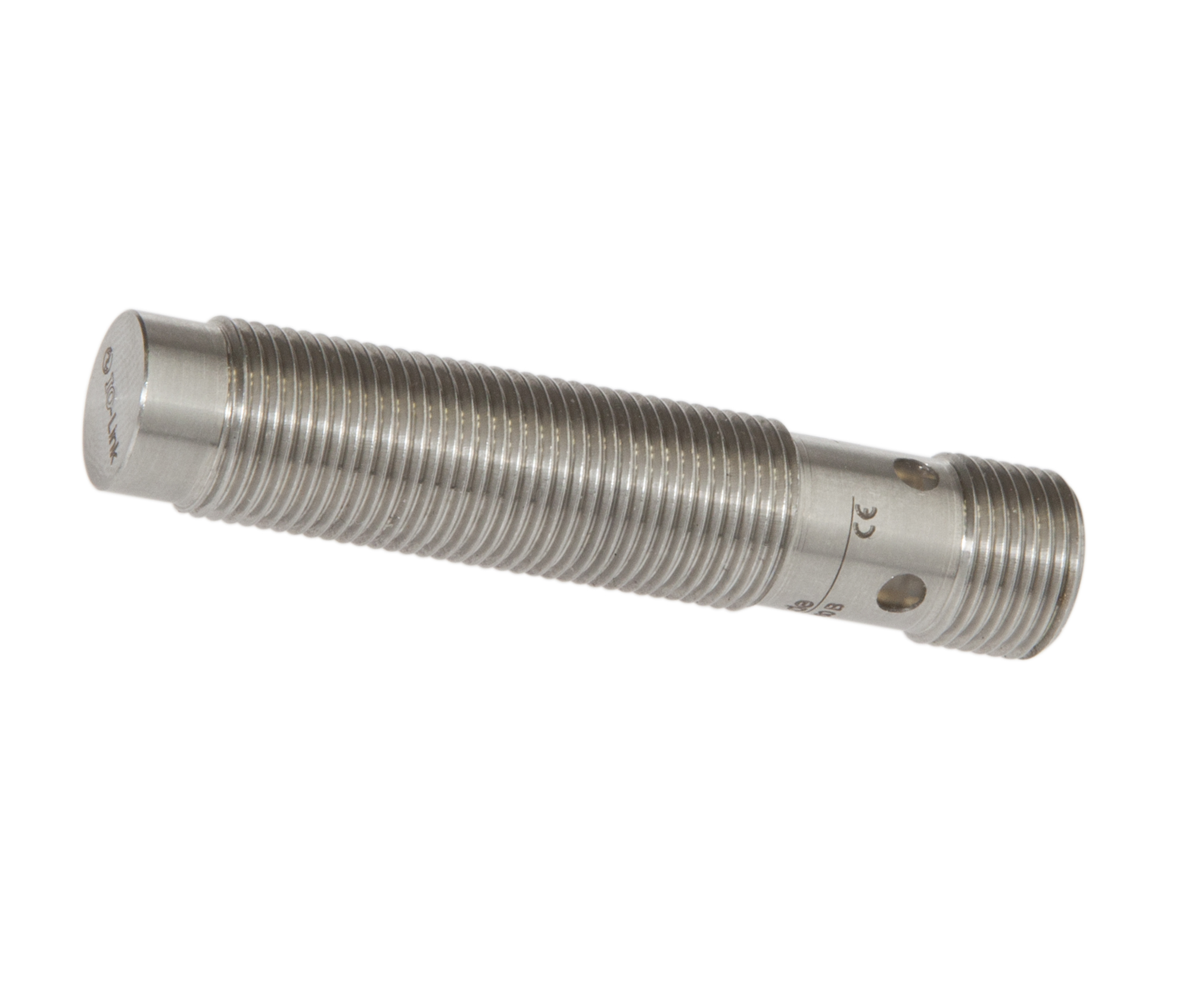

sensor inductive, all-steel, M12x1 60long, Non-flush, Sn: 3, 10-30V DC, PNP NO, IO-Link, Connector M12 4pin, IP67, Stainless steel 1.4305, Static
including Nut
Compare

Inductive sensors - Chip resistant

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M12
Type of switching output
PNP
Rated switching current
200mA
Relative hysteresis
15%
Correction factor (aluminum)
1.7
Correction factor (copper)
1.5
Correction factor (brass)
1.8
Correction factor (St37)
1
Short-circuit protection
Yes
No-load current
10mA
Max. line length
300m
Number of pins
4
Relative repeat accuracy
7%
Residual ripple
20%
Switching distance
3mm
Switching frequency
400Hz
Switching behavior of the output
Static
Voltage drop
2V
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 30V
Display
LED display

Mechanical properties

Alignment of cable entry
axial
Design
Cylinder, screw-thread
Pressure resistance
80bar

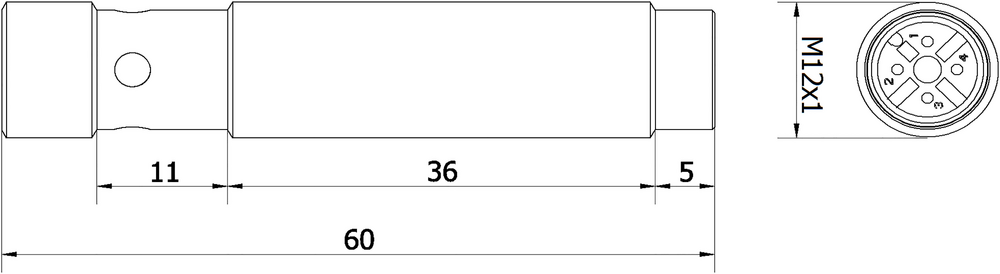

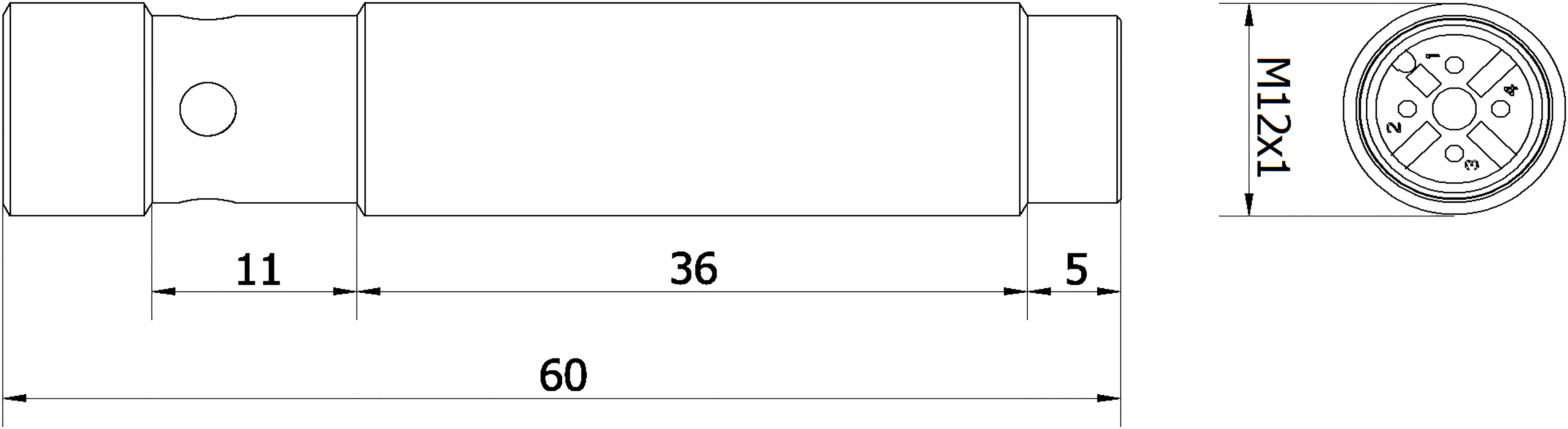

Thread length
36mm
Thread pitch
1mm
Cable infeed
axial
Length
60mm
Material thickness
0.4mm
Maximum tightening torque
20Nm
Mechanical mounting condition for sensor
non-flush
Degree of protection (IP)
IP67
Active area material of sensor
Stainless steel 1.4305
Housing material
Stainless steel 1.4305
Thread dimension
M12

Other properties

Ambient temperature
-25 - 70°C
Reference medium / object
Standard measuring plate FE360 12x12x1mm
IO-Link version
V1.0.1
Harsh environmental conditions
Yes
Oil and cooling lubricants
Yes
You can find accessories for IO12012F in these product groups:

Mounting system, cylindrical, M12

Cable sockets M12 3-wire

Cable sockets M12 3-wire with LED

Cable sockets M12 4-pin field attachable

Cable sockets M12-socket with LED M8-connector 3-wire

Cable sockets M12-socket M12-connector 4-wire

Cable sockets M12-socket M8-connector 3-wire

IO-Link master

Cable sockets M12-socket with LED M12-connector 4-wire

Monitor for standstill M12

Sensor tester

Inverters M12

Adapter M12 socket 4-pin / M8 connector 4-pin

Power supply 24V DC / 100mA switching amplifier

Adapter M12 socket 3-pin / M8 connector 3-pin

Cable sockets M12 5-pin field attachable

Timer stages M12

Fixing material design M12

Logic modules M12

Pulse/pause counter M12

Classification Class
eClass-7.0 27270101
eClass-7.1 27270101
eClass-8.0 27270101
eClass-9.0 27270101
eClass-9.1 27270101
ETIM-6.0 EC002714
ETIM-7.0 EC002714
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 205 inductive sensors (pro)
packaging dimensions 180 x 25 x 215mm
gross weight 34g
Customs tariff number 85365019
WEEE number 40951076
