IV56E205-S

IV56E205-S
Available

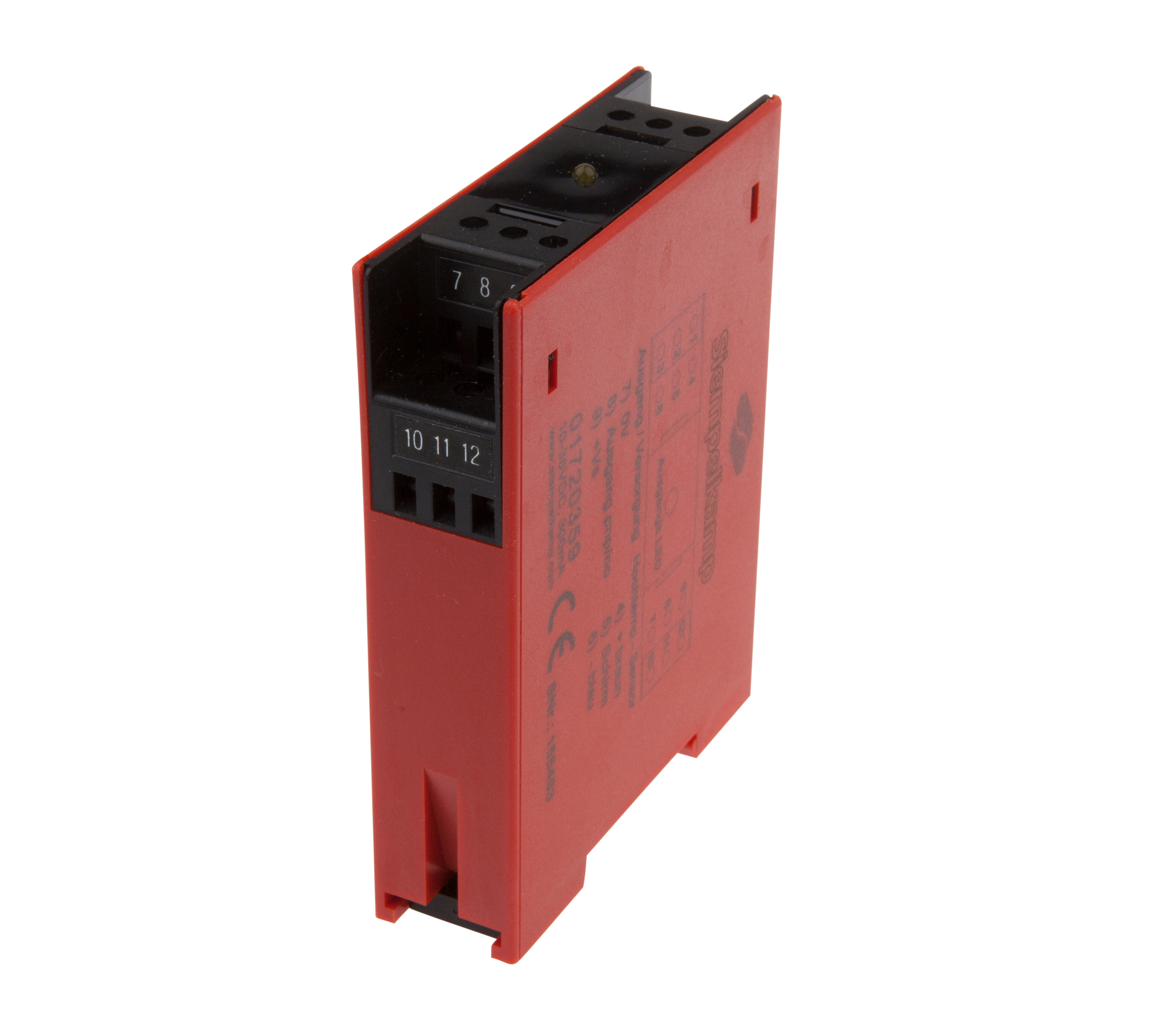

amplifier inductive, High-temperature, 75x99x22mm, 10-35V DC, NO (NO), Clamp, IP20, Plastic, With LED display
circuit diagram

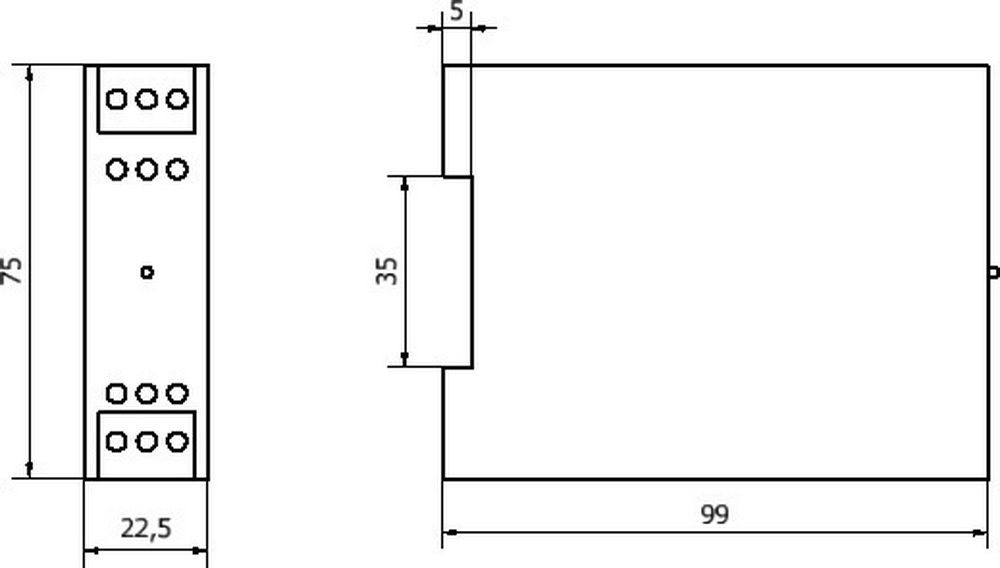

dimensional drawing
3D model
Compare

Inductive sensors - Switching amplifier for high temperature sensors

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Number of channels
1
Type of switching function
Normally open contact (NO)
Type of electrical connection
Clamped terminal connection
Type of switching output
PNP
Rated switching current
300mA
Switching capacity
7.2VA
Switching voltage
35V
Display
LED display
Operating voltage
Electrical connection

Mechanical properties

Design
Cuboid
Width
22.5mm
Height
75mm
Length
99mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic
dimensions

Other properties

Ambient temperature
-25 - 70°C
Version
Built-in device
Classification Class
eClass-7.0 27210121
eClass-7.1 27210121
eClass-8.0 27210121
eClass-9.0 27210121
eClass-9.1 27210121
ETIM-6.0 EC001485
ETIM-7.0 EC001485
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 700 special devices
packaging dimensions 124 x 35 x 149mm
gross weight 119g
1,75kg CO₂e
Customs tariff number 85365019
WEEE number 40951076
