sensor laser, diffuse-reflection sensor, 50x50x15mm, Sn: 25-300, 10-30V DC, 2x PNP NC/NO, Connector M12 4pin, IP67, Zinc die-cast+Glass, 0.8kHz, Laser diode, red light, Point, Manual adjustment
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.6ms
- Number of switching outputs
- 2
- Resolution
- 0.1mm
- Type of switching function
- Normally closed contact/normally open contact
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Manual adjustment
- Short-circuit protection
- Yes
- Laser power
- 1mW
- No-load current
- 35mA
- Number of pins
- 4
- Switching distance
- 25 - 300mm
- Switching frequency
- 800Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Reverse polarity protection
- Yes
- Decay time
- 0.6ms
- Absolute repeat accuracy
- 0.1mm
- Operating voltage (DC)
- 10 - 30V
- Display
- LED display
- Interference suppression
- Yes
Mechanical properties
- Design
- Cuboid
- Width
- 15.4mm
- Height
- 50mm
- Length
- 50mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- Zinc die-cast
Optical properties
- Laser class
- Class 2
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 650nm
- focus
- 80mm
- Light spot diameter at focal point
- 0.05mm
Other properties
- Ambient temperature
- -10 - 50°C
- Operational mode
- Background suppression
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for PT170420
in these product groups:
Cable sockets M12 4-pin field attachable
Cable sockets M12-socket with LED M12-connector 4-wire
Cable sockets M12 4-wire with LED
Cable sockets M12 4-wire shielded
Cable sockets M12 4-wire
Power supply 24V DC / 2 – 10A
Adapter M12 socket 4-pin / M8 connector 4-pin
Sensor tester
Timer stages M12
Cable sockets M12-socket M12-connector 4-wire
Fixing material design 17
Available
Protection cap, teflon M12
Logic modules M12
Mounting system for AY000119
Available
Datasheets
Manuals
Drawings
-

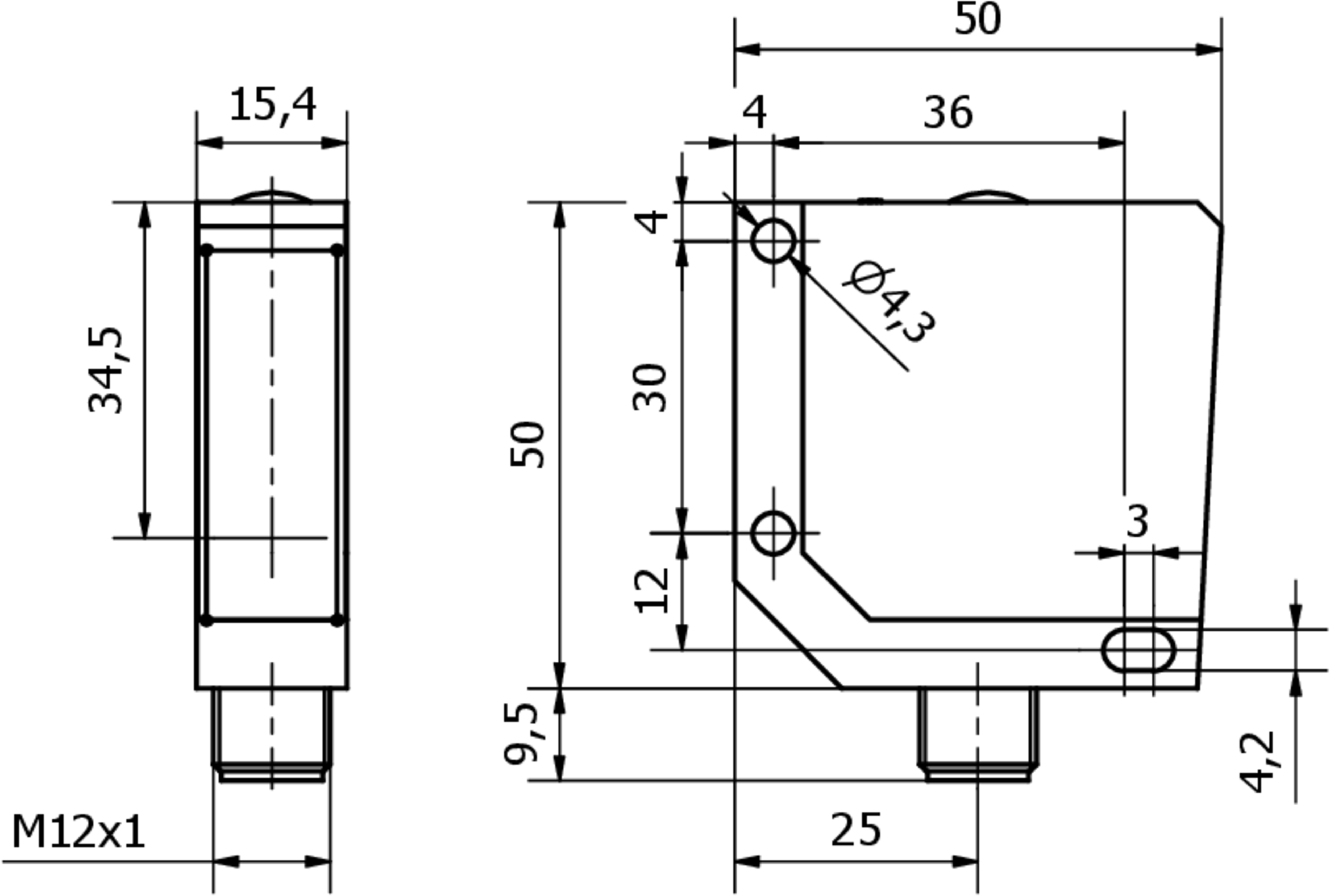

jpgBlueprintJPG-file, 344 KB
-
