AY000119
accessories sensor, Fixture kit, Metal, ball joint
Available
DISCONTINUED PRODUCT
PT190420
| amount | price | discount |
|---|---|---|
| 1 | 478,70 € | – |
| 5 | 464,34 € | 3% / 14,36 € |
| 10 | 454,77 € | 5% / 23,94 € |
| 20 | 440,40 € | 8% / 38,30 € |
| 50 | 421,26 € | 12% / 57,44 € |
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!
Scarce
sensor laser, diffuse-reflection sensor, 50x50x17mm, Sn: 50-300, 10-30V DC, 2x PNP NC/NO, M12-connector 4pin, IP67, plastic ABS+PMMA, 2.5kHz, laser diode, red light, point, manual adjustment
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.2ms
- Number of switching outputs
- 2
- Type of switching function
- Normally closed contact/normally open contact

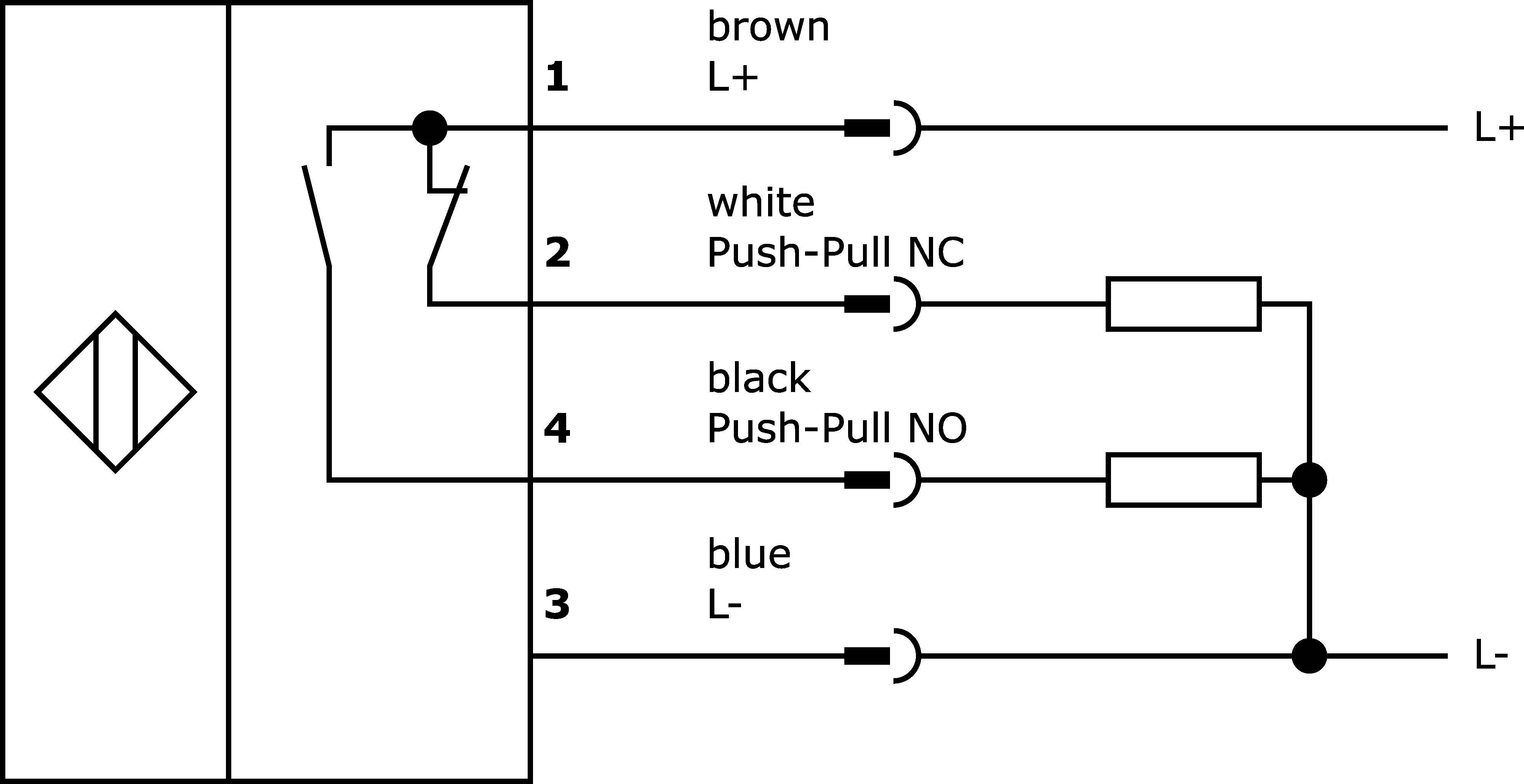

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Manual adjustment
- Laser power
- 0.4mW
- No-load current
- 50mA
- Number of pins
- 4
- Reaction time
- 0.2ms
- Switching distance
- 50 - 300mm
- Switching frequency
- 2,500Hz
- Voltage drop
- 2.4V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.2ms
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties

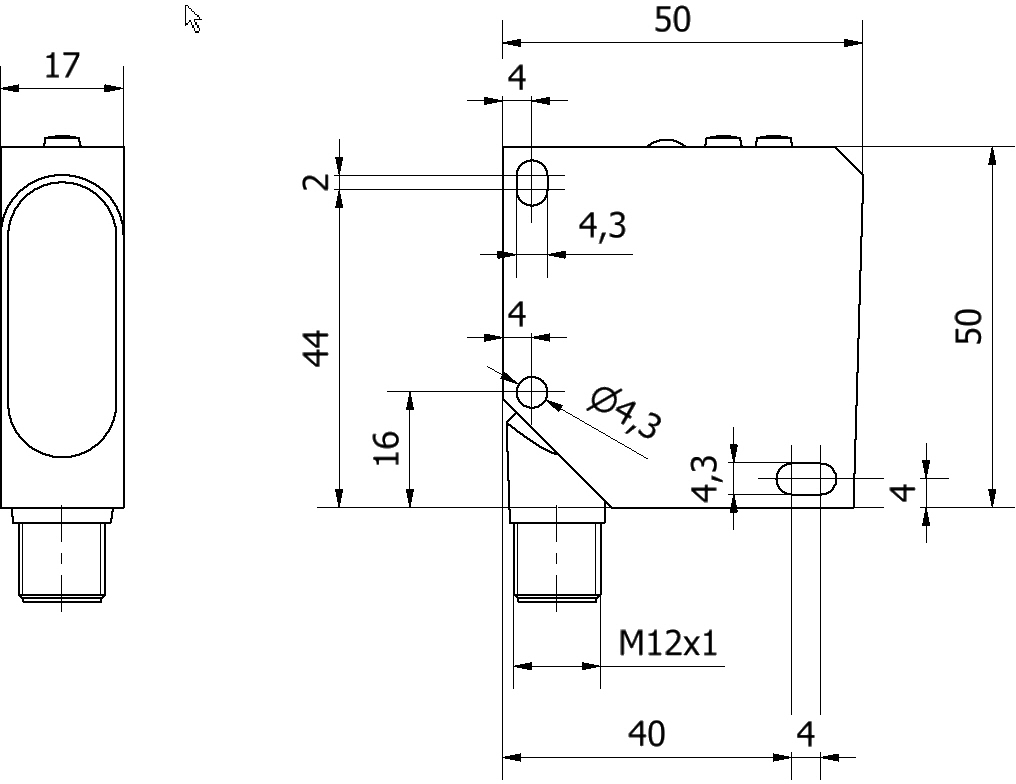

- Design
- Cuboid
- Width
- 17mm
- Height
- 50mm
- Length
- 50mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic (ABS)
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 650nm
- Light spot diameter at focal point
- 1mm
Other properties
- Range of functions
- Ambient temperature
- -20 - 45°C
- Reference medium / object
- Material with 90% reflectivity
