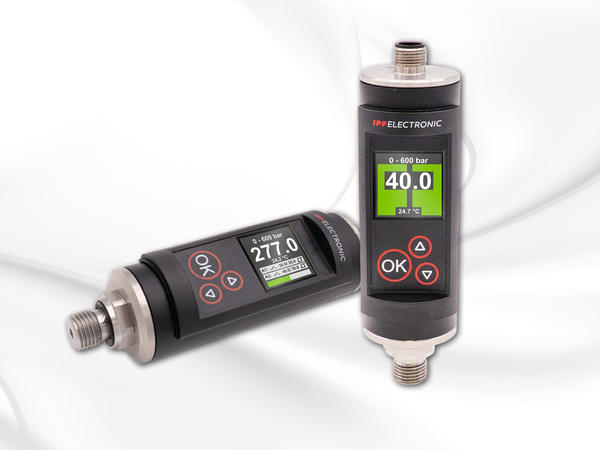

New pressure sensor family: precision meets versatility

Our new DW5x - series combines precise measurement technology with maximum flexibility and simple operation. The ideal solution for demanding applications in mechanical engineering/plant construction.

Versatile & contact-friendly

IO-Link, switching outputs and analog current and voltage outputs are all on board - making the DW5x quickly and easily into your system via M12 connectors and ensures reliable communication.

Flexible & user-friendly

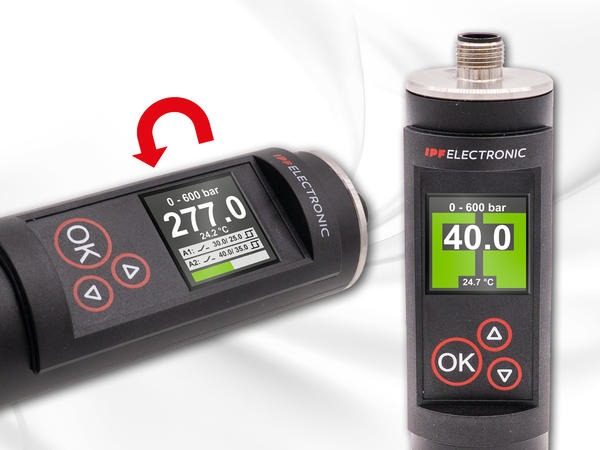

Parameters can be set either directly on the device via three diffuse reflection sensors or conveniently via IO-Link. The high-contrast color TFT display with plain text menu navigation ensures optimum readability and offers setpoint and measured value indication in various units, status indication of the outputs, trend display and optional further information in a clear display. Mechanically rotatable by 305° and electronically in 90° steps, the display adapts perfectly to any installation situation. Along with exact pressure readings, the DW5x provides precise temperature data - for maximum process reliability.

Universally applicable

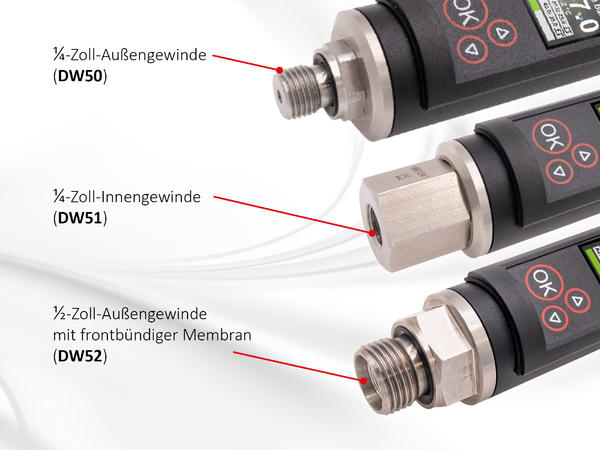

With ¼" internal or external thread and ½" external thread with front-flush diaphragm, the sensor family covers measuring ranges from -1 bar to +600 bar.

Robust & durable

Stainless steel process connections and a media temperature resistance of -20 °C to +80 °C in combination with the degree of protection IP67 make DW5x particularly resistant - even under demanding conditions.

Your advantage:

A universally applicable, compact pressure sensor that impresses with its versatility, precision and ease of use.

Find out more or request advice now!
