Professional tool from IPF

For core and stranded wire diameters from 0.3 to 1.0 mm

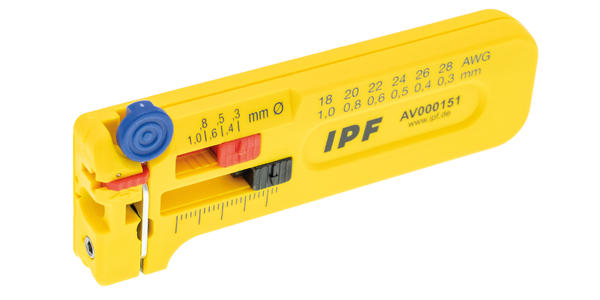

The new, 48g lightweight stripping tool AV000151 from IPF can be easily and individually adjusted to single cores with any diameter between 0.3mm and 1.0mm (AWG 28...18).

The AV000151 is equally flexible when it comes to insulation materials, as it is suitable for lines made of PVC, TEFLON®, KYNAR®, TEFZEL® or MYLAR®. The minimum possible stripping length is straight 1.5 mm (maximum possible is 22 mm). Thanks to the special design of the tool with a blade made of hardened special steel, the stranded copper wire is not damaged during the stripping process. Furthermore, the integrated cutting device can be used to shorten conductors with a diameter of up to 1mm to the desired length.

In practice, the exact wire diameter is often not known. No problem, because with the AV000151 the conductor can still be cut easily by approaching the correct value in several quick steps, starting with the largest diameter.
