Developed for high speed and more

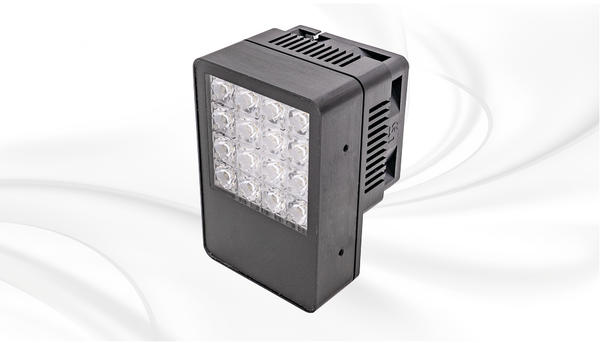

New high-power LED spotlight from IPF

When using high-speed cameras from the OC29 series, a high light output is required due to the very short exposure time in order to achieve the highest possible number of images per second (fps - frames per second). A requirement that the new high-power LED spotlight ES540020 from IPF with an illuminance of 100,000 lux (color temperature 5000K) at a distance of 500mm from an object.

The angle of emitted beam of the high-power LEDs is 20°, allowing the desired area to be illuminated in a targeted manner. An integrated active fan also ensures very good heat dissipation of the light up (output 43W) via the sturdy aluminum housing.

For applications other than high-speed camera shots, the spotlight can be used in flash mode with the internal flash controller. The optionally available power supply unit NY000008 with on/off switch and M12 connection socket also enables continuous operation of the LED spotlight.

Via the 1/4-inch thread on the housing, the ES540020 can also be attached to accessories from IPF's OC29 high-speed camera series: e.g. to a cross-arm (AO000568), a screw clamp (AO000577) or a ball joint (AO000578).

The following website provides a practical insight into monitoring fast processes with some video sequences:

https://www.ipf-electronic.de/de/produkte/highspeed-kamerasysteme
