Accessories - Fittings - Adapters
AD000025
Scarce

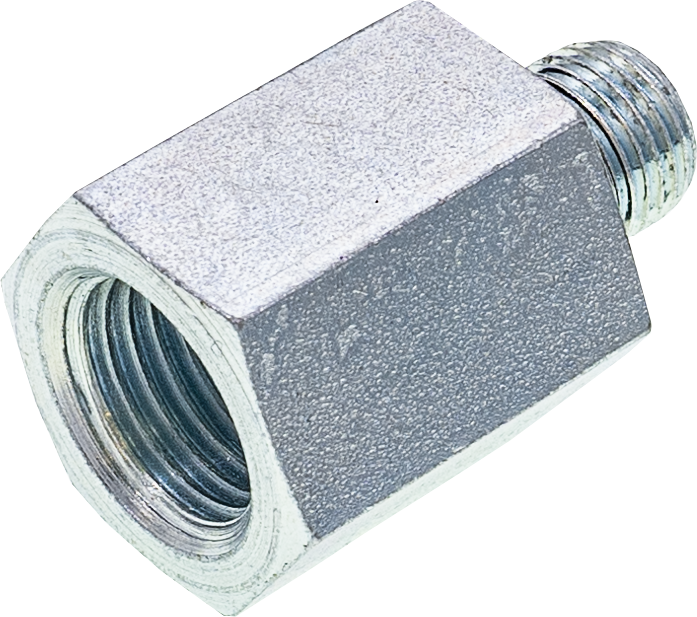

Pressure accessories, adapter, G1/8 - G1/4, 31lang, galvanized steel (galv.steel), NBR
Compare
Accessories - Fittings - Adapters
Mechanical properties
- Design
- Straight
- Length
- 31mm
- Max. operating pressure
- 630bar
- Medium temperature
- -35 - 100°C
- Wrench size
- 19mm
- Material
- Steel
- Seal material at process connection
- Plastic (NBR)
- Version of the process connection A
- Version of the process connection B
Datasheets

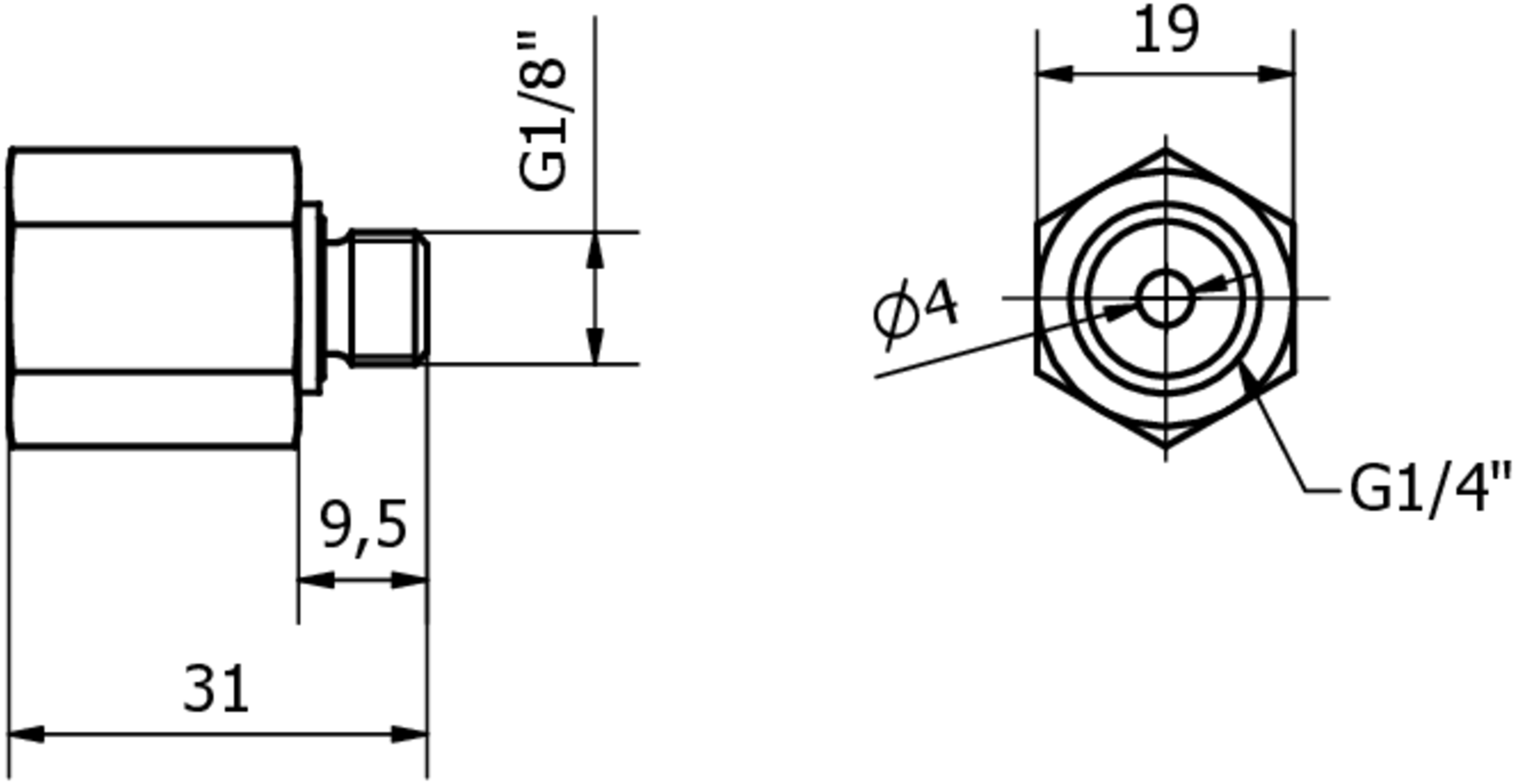

Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 22560205 |
| eClass-7.1 | 22560205 |
| eClass-8.0 | 22560205 |
| eClass-9.0 | 22560205 |
| eClass-9.1 | 22560205 |
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC003024 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 25 x 165mm |
| gross weight | 43g |
| 0,22kg CO₂e | |
| Customs tariff number | 90269000 |
| WEEE number | 40951076 |
