Connection technology - Teach adapter

AE000019

AE000019
List price
159,70 €
Scarce
accessories light, Configuration device, 15x75x55mm
including 1x Plug-in power supply
Compare

Connection technology - Teach adapter

LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.

Electrical properties

Type of A electrical connection
Plug power supply angled
Type of B electrical connection
M12
Number of pins
8
Protection class
III
Supported communication interface
USB

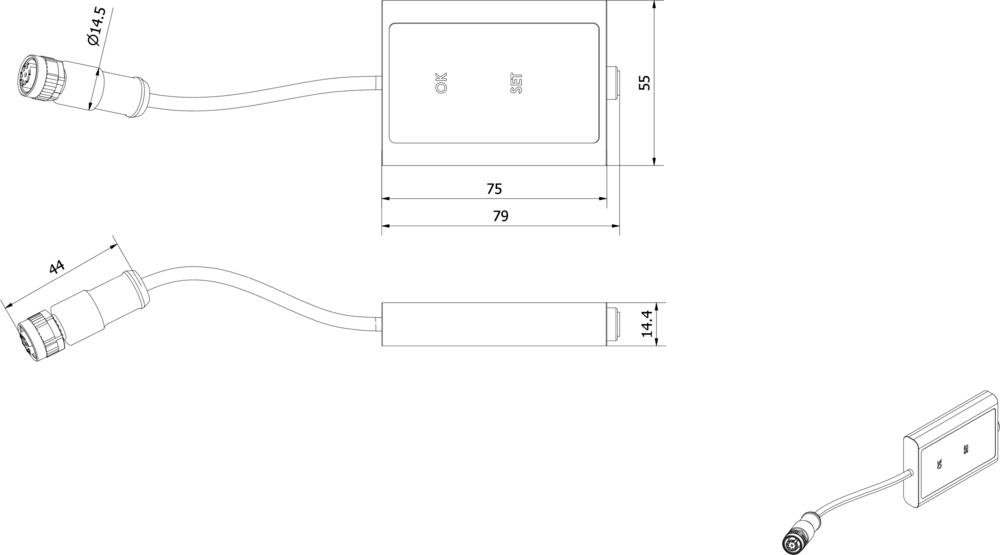

Mechanical properties

Design
Cuboid
Width
55mm
Height
15mm
Length
75mm
Housing material
Aluminum

Other properties

Risk group
0
Ambient temperature
-10 - 40°C
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 900 accessories
packaging dimensions 74 x 74 x 143mm
gross weight 333g
Customs tariff number 85437090
WEEE number 40951076
