Accessories - LED light - mounting
AE000032
Available

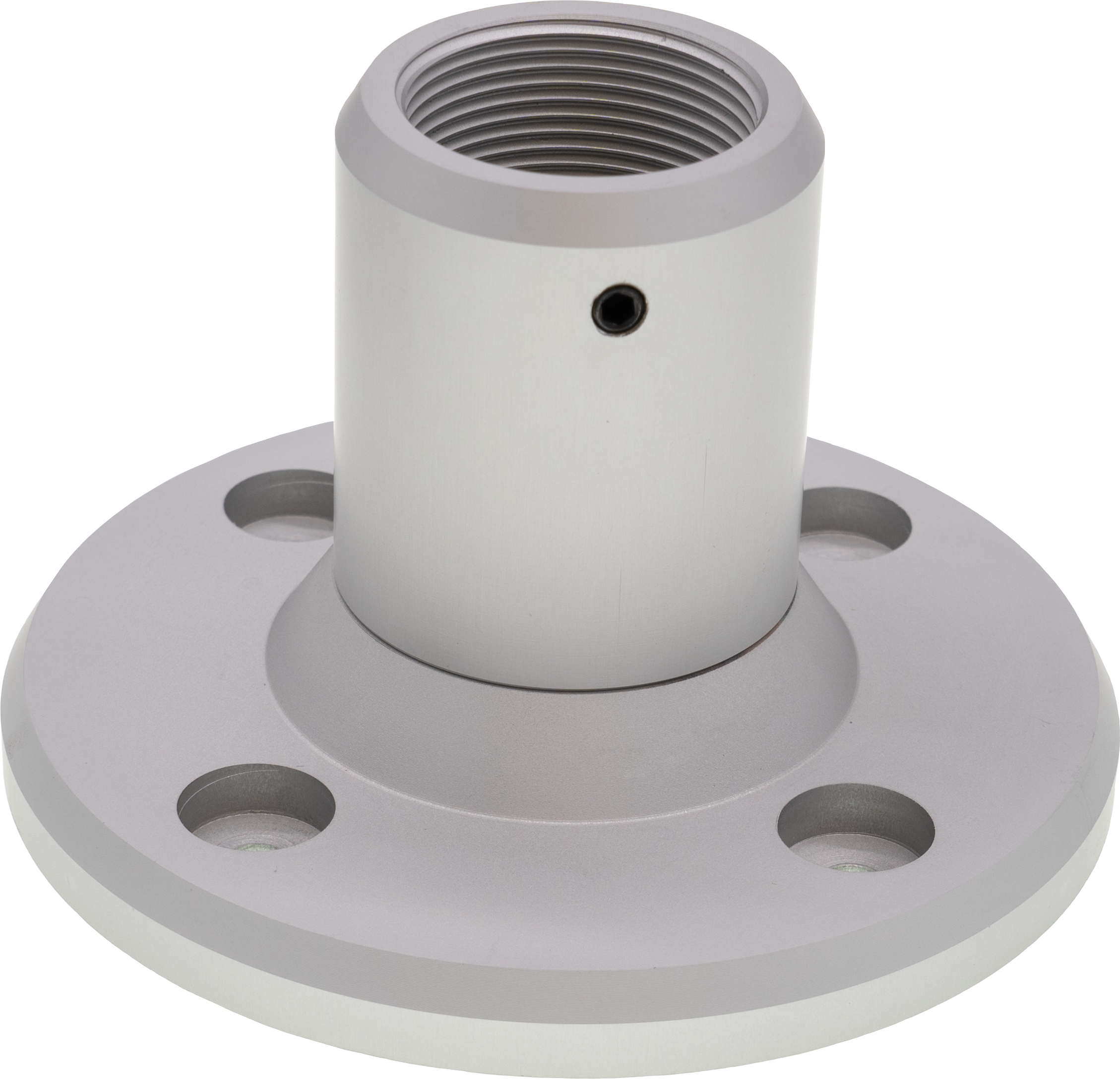

Accessories lights up, mounting flange, Ø98mm, 65mm high, aluminum
Compare
Accessories - LED light - mounting
Accessories lights up, mounting flange, Ø98mm, 65mm high, aluminum
Mechanical properties
- Height
- 65mm
- Material
- Aluminum
- Diameter
- 98mm
Datasheets

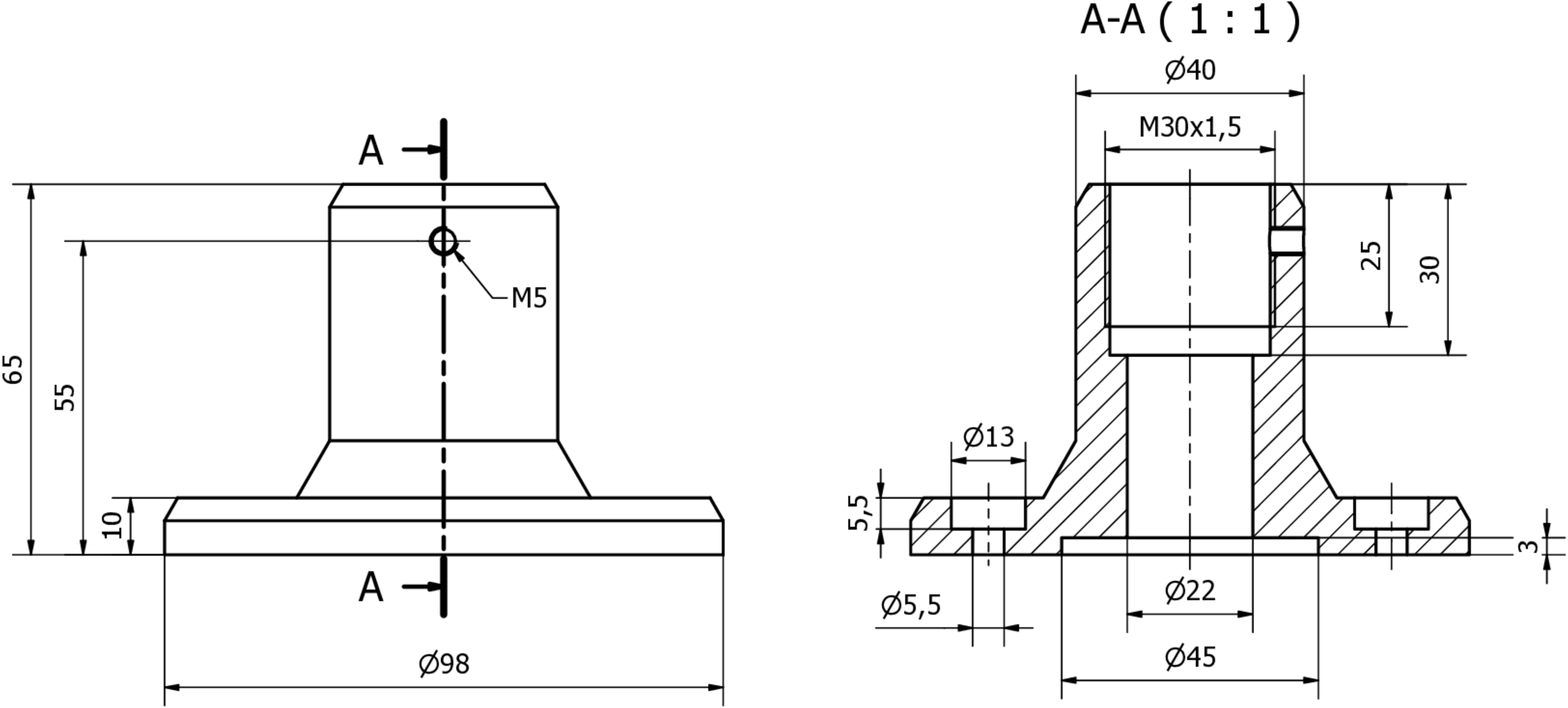

Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27119290 |
| eClass-7.1 | 27119290 |
| eClass-8.0 | 27119290 |
| eClass-9.0 | 27119290 |
| eClass-9.1 | 27119290 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 95 x 90 x 100mm |
| gross weight | 295g |
| 4,13kg CO₂e | |
| Customs tariff number | 76169990 |
| WEEE number | 40951076 |
