Accessories - Labeling

AE000040

AE000040
List price
51,00 €
Available

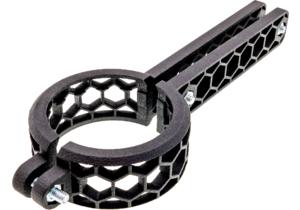

Accessories Mounting set for labeling plates for signal towers with Ø50mm , 167x25x16mm, plastic PA12
including Nut, Screw

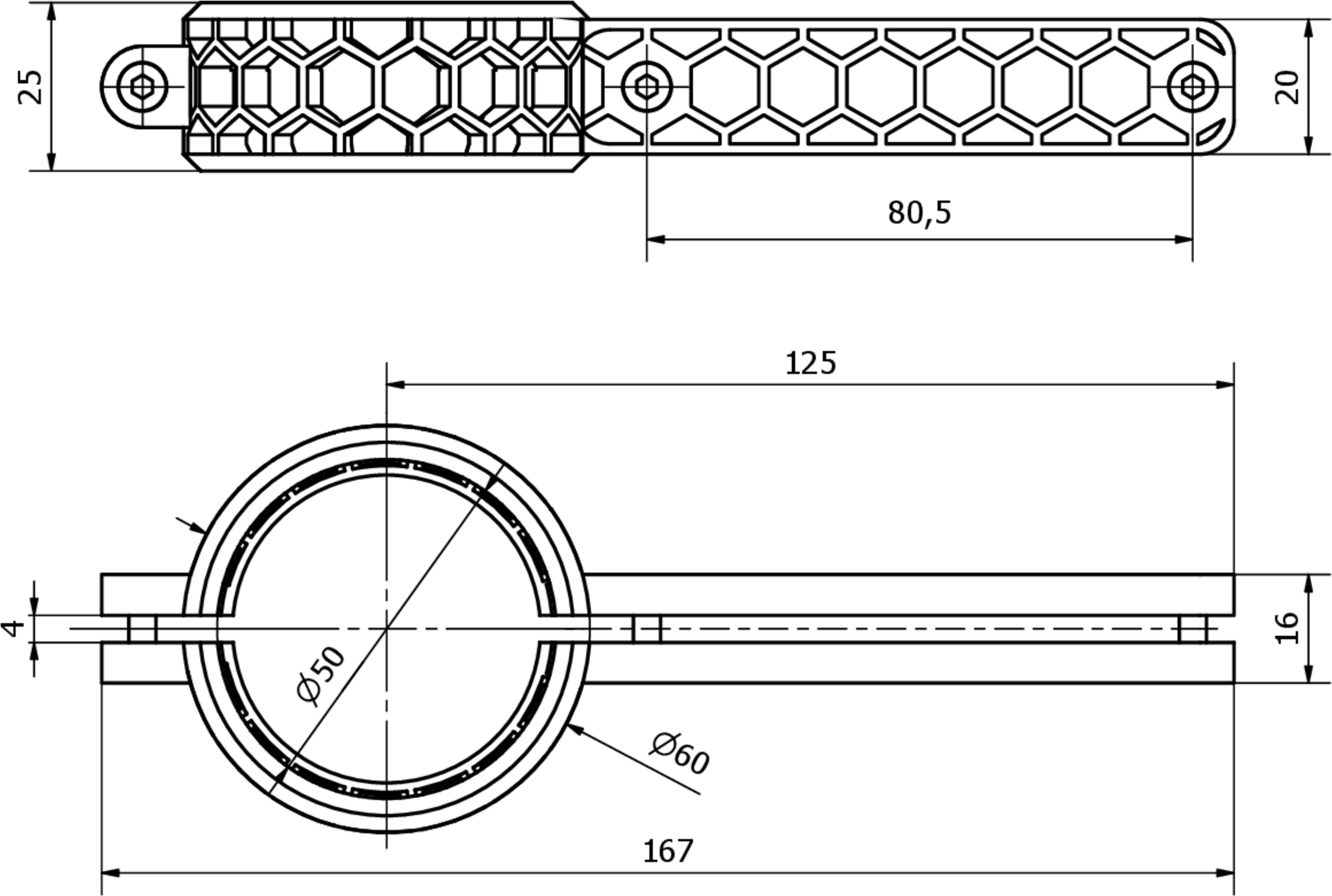

dimensional drawing
3D model
Compare

Accessories - Labeling

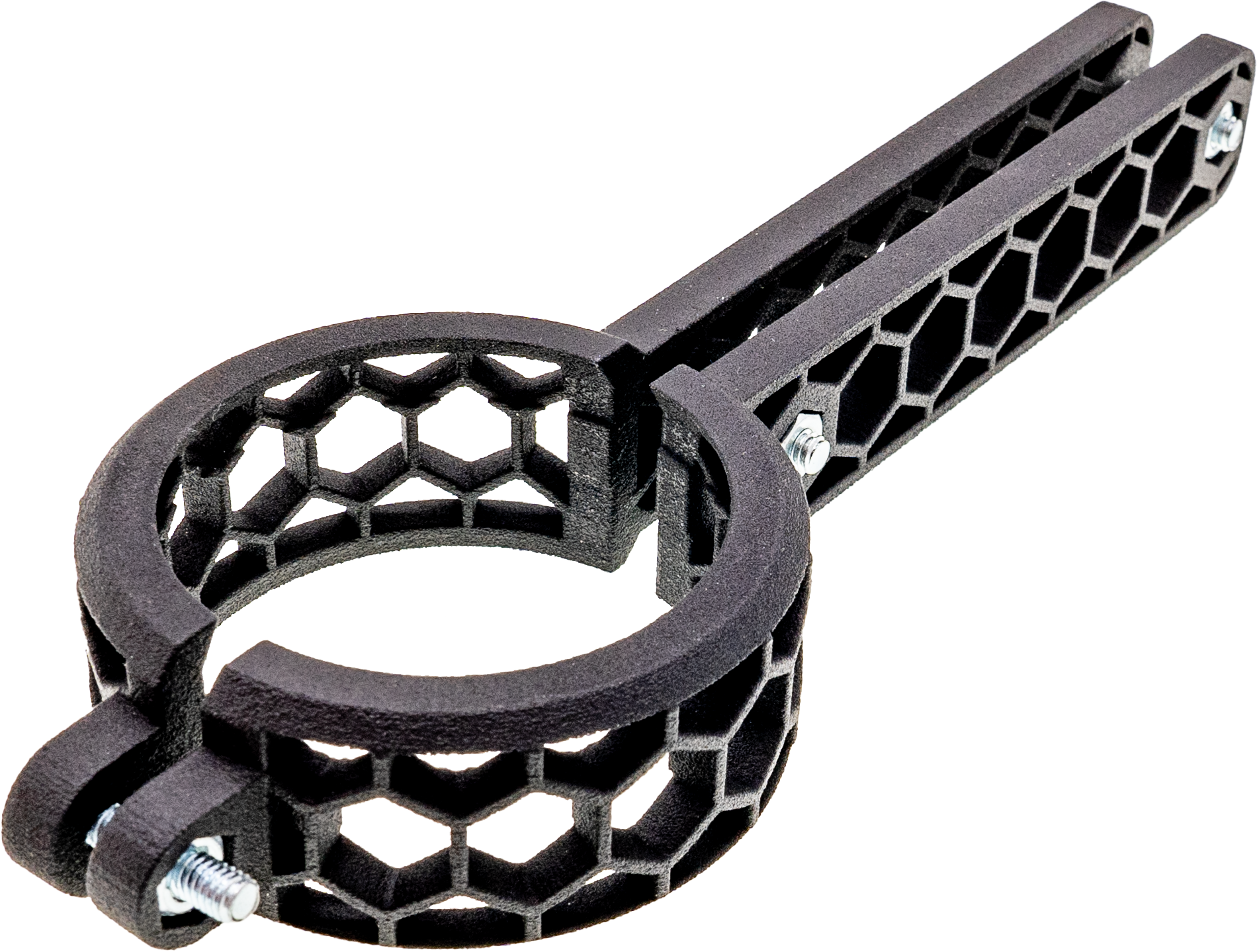

This clamp holder is used to attach the labeling plates to the EZ500 signal lights.

The labeling plate can be brought into the desired position by twisting it.

Mechanical properties

Width
167mm
Height
25mm
Material thickness
16mm
Mounting method
Direct mounting
Material
Plastic (PA, glass fiber reinforced)

Other properties

Important note
The holder can only be mounted in one direction, please pay attention to the chamfer on the inside. This is applied to the lower end of the luminaire housing to prevent vertical adjustment.
Classification Class
eClass-7.0 27149129
eClass-7.1 27149129
eClass-8.0 27149129
eClass-9.0 27400629
eClass-9.1 27400629
ETIM-6.0 EC001288
ETIM-7.0 EC001288
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 900 accessories
packaging dimensions 160 x 25 x 270mm
gross weight 33g
0,05kg CO₂e
Customs tariff number 39269097
WEEE number 40951076
