Accessories - LED light - mounting
AE000041
Scarce

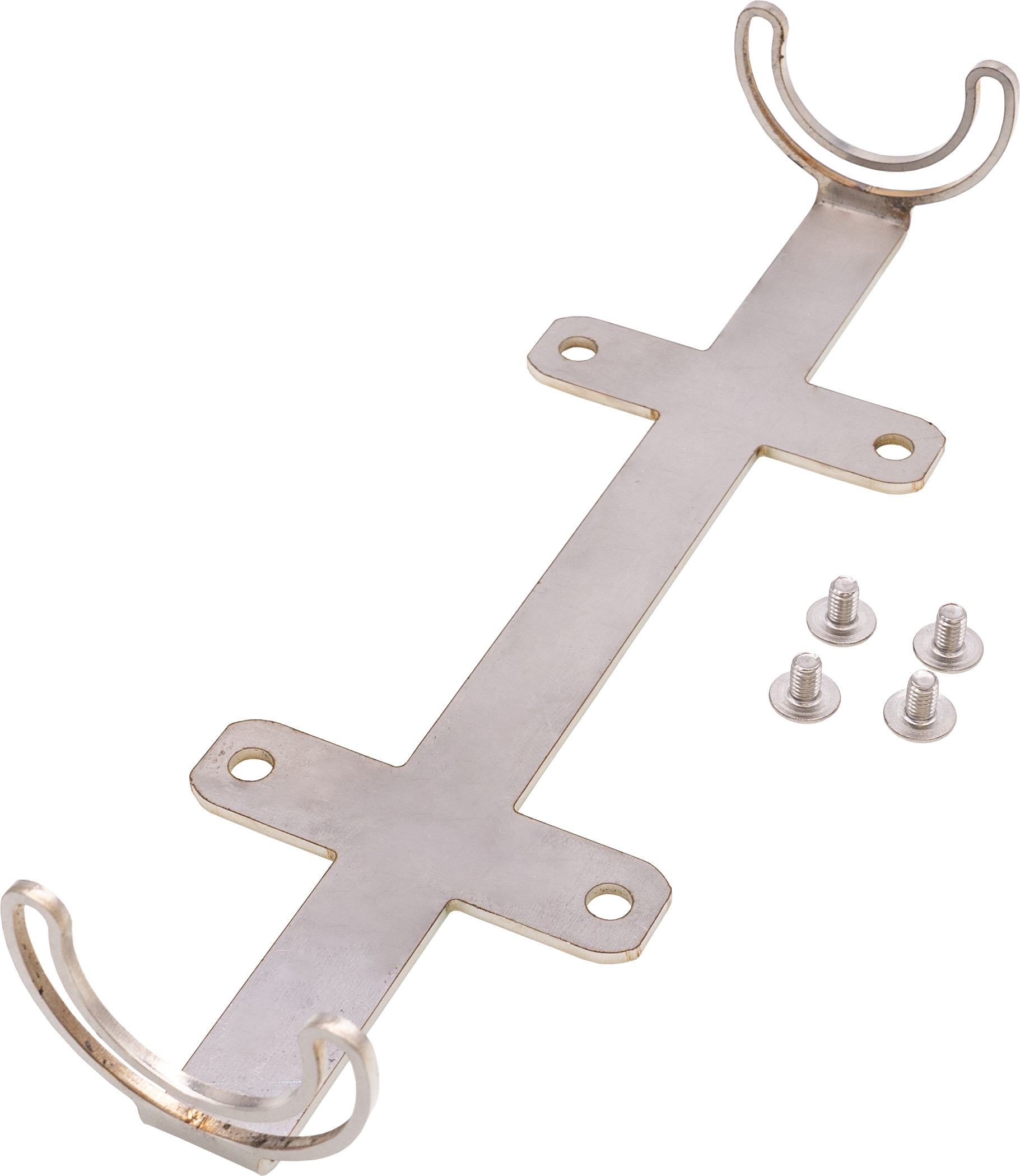

Accessories light up, mounting bracket, 191x60x34, mounting material for light, bracket, stainless steel
Compare
Accessories - LED light - mounting
The combination of the EM410120 light and this holder can be used to create a fully-fledged replacement for the AO000430 machine light, which is no longer available. The mounting holes of the holder are dimensionally identical to those of the AO000430 - so if necessary, a new light can be installed without much effort, which also emits even better light.
Mechanical properties
- Width
- 60mm
- Diameter of screw-on mounting
- 4.1
- Height
- 34mm
- Length
- 191mm
- Mounting method
- Screw mounting
- Material
- Stainless steel
Datasheets

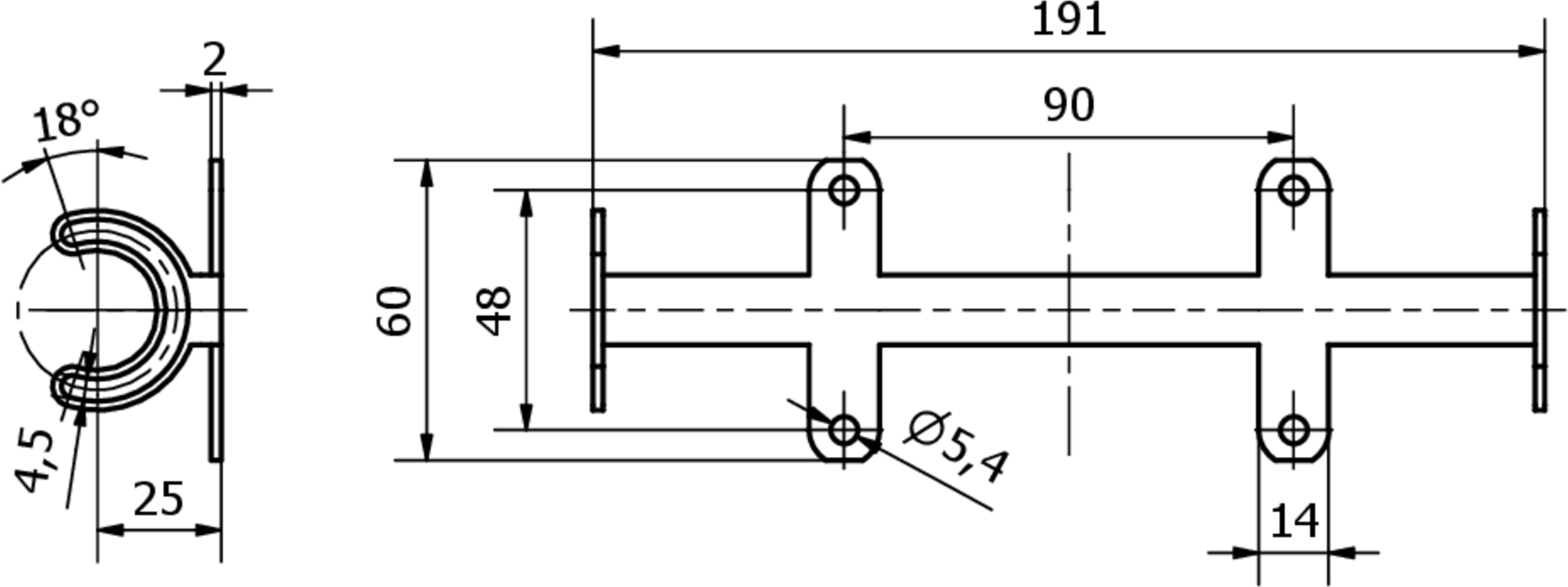

Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27119290 |
| eClass-7.1 | 27119290 |
| eClass-8.0 | 27119290 |
| eClass-9.0 | 27119290 |
| eClass-9.1 | 27119290 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 160 x 40 x 220mm |
| gross weight | 83g |
| 1,64kg CO₂e | |
| Customs tariff number | 73269098 |
| WEEE number | 40951076 |
