DISCONTINUED PRODUCT
AF000001
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!

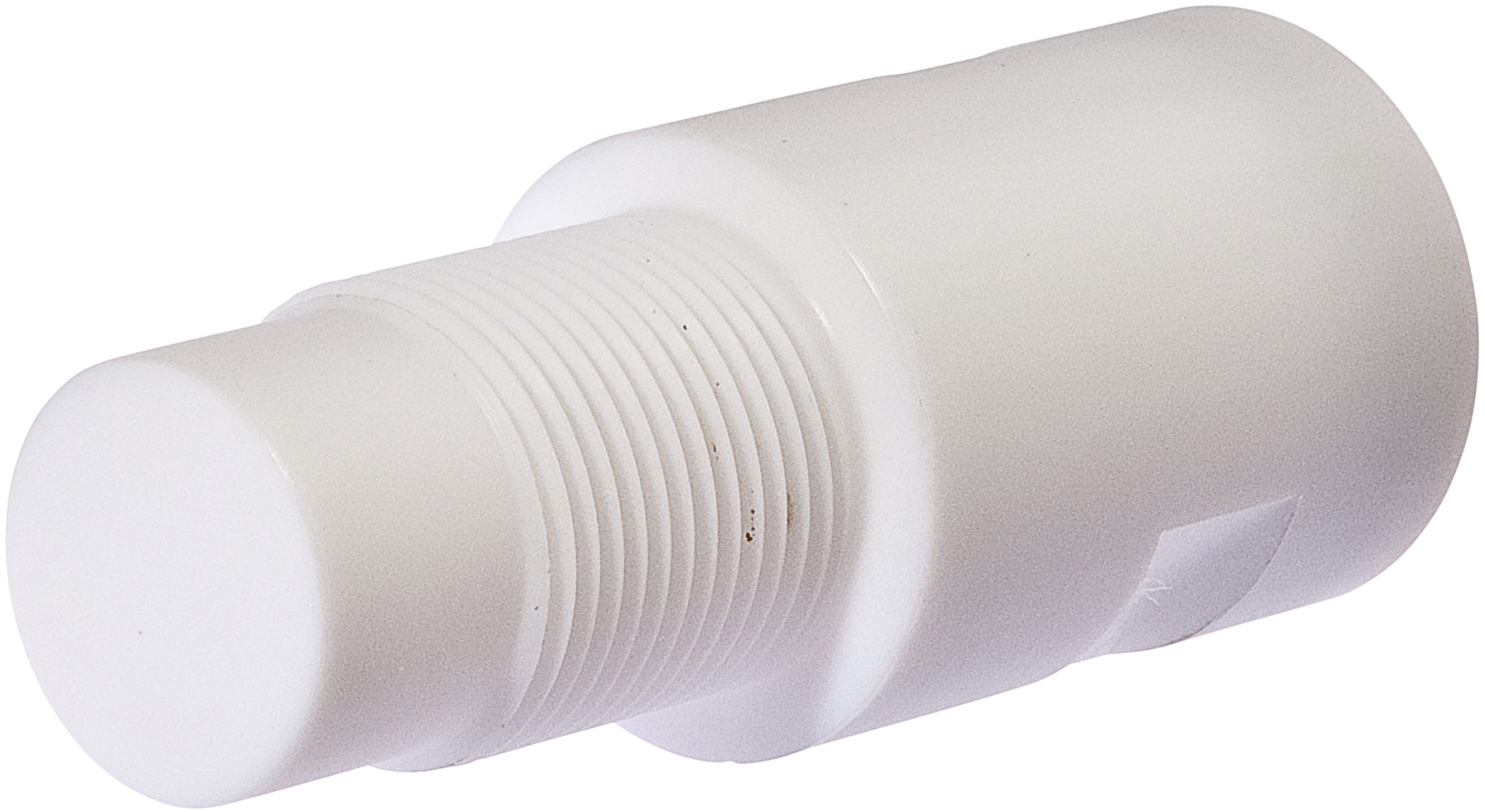

accessories, Mounting sleeve, 3/4 inch 87long, Polytetrafluorethylene (PTFE)
Compare
Accessories - Filling level - screw-in sleeve

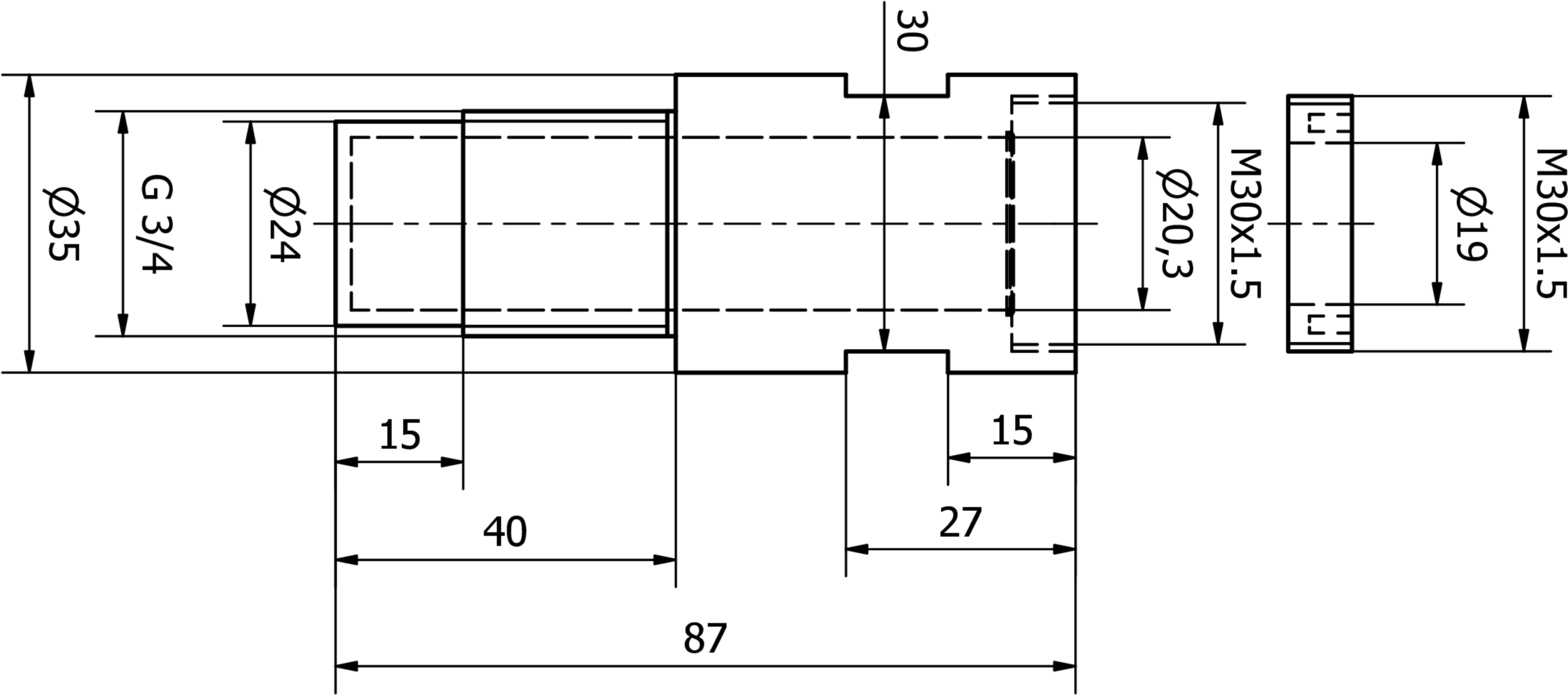

Mechanical properties
- Tightening torque
- 1Nm
- Pressure resistance
- 3bar
- Installation depth
- 40mm
- Length
- 87mm
- Mounting method
- Screw mounting
- Material
- Polytetrafluorethylene (PTFE)
- Thread dimension
- 3/4 inch
- Diameter
- 30mm
Other properties
- Version
- Mounting sleeve
| Classification | Class |
|---|---|
| eClass-7.0 | 27209290 |
| eClass-7.1 | 27209290 |
| eClass-8.0 | 27209290 |
| eClass-9.0 | 27200592 |
| eClass-9.1 | 27200592 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 37 x 150mm |
| gross weight | 80g |
| 0,23kg CO₂e | |
| Customs tariff number | 85389099 |
| WEEE number | 40951076 |
