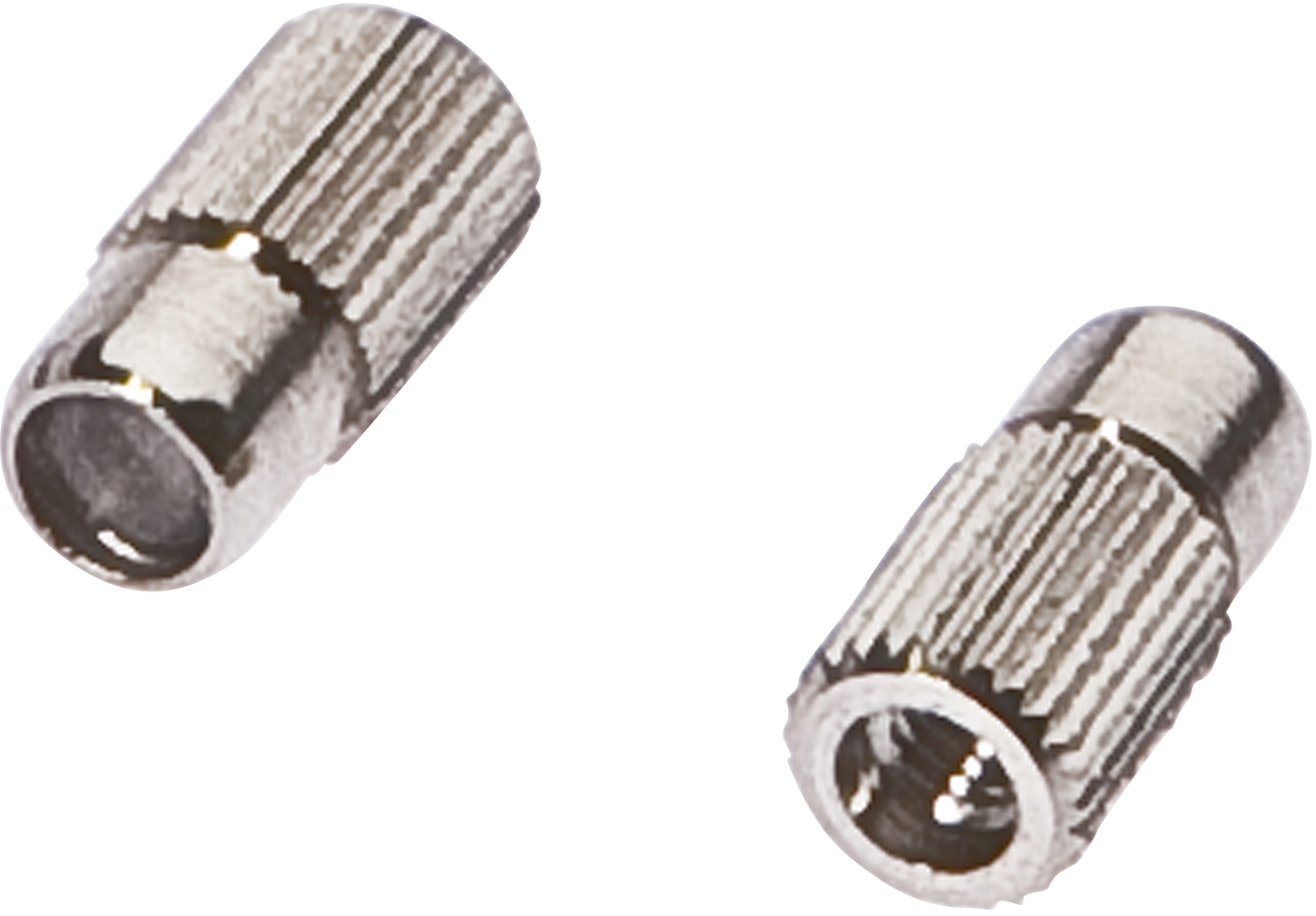

Accessories - Fiber optics Plastic fiber attachment optics
AL000001
Available
accessories fiber optic, Optic top part, barrier, M2.6x0.45 8,7long, Internal thread, Glass
Compare
Accessories - Fiber optics Plastic fiber attachment optics
Mechanical properties
- Design
- Internal thread
- Thread pitch
- 0.45mm
- Length
- 8.7mm
- Active area material of sensor
- glass
- Thread dimension
- M2.6
- Diameter
- 4.5mm
Other properties
- Suitable for
- Barrier
Datasheets

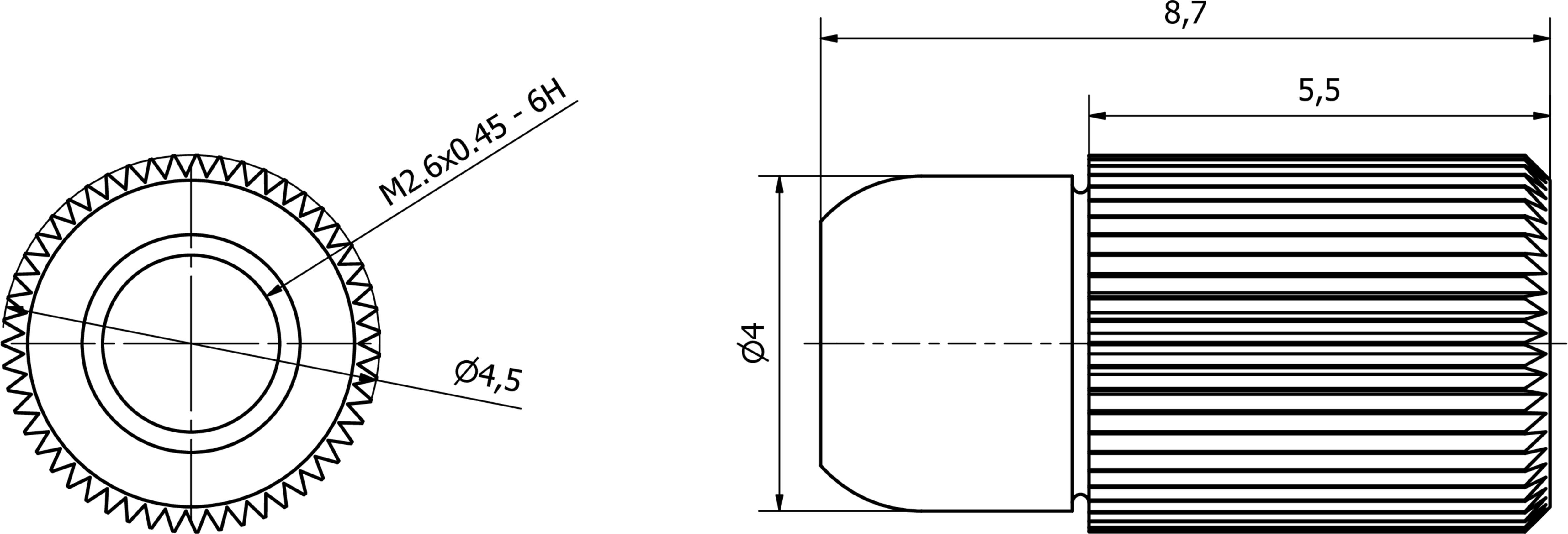

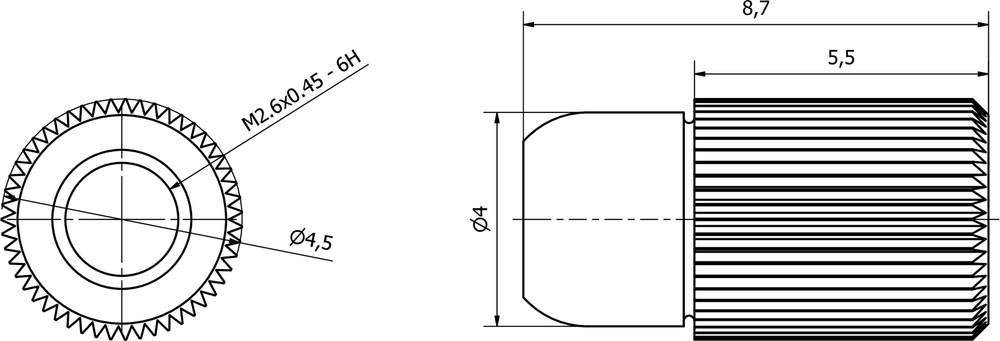

Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27279208 |
| eClass-7.1 | 27279208 |
| eClass-8.0 | 27279208 |
| eClass-9.0 | 27273692 |
| eClass-9.1 | 27273692 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E486083 |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 4 x 120mm |
| gross weight | 2g |
| 0kg CO₂e | |
| Customs tariff number | 90029000 |
| WEEE number | 40951076 |
