Connection technology - Cable sockets / connectors pre-assembled on one side
AL000014
Available

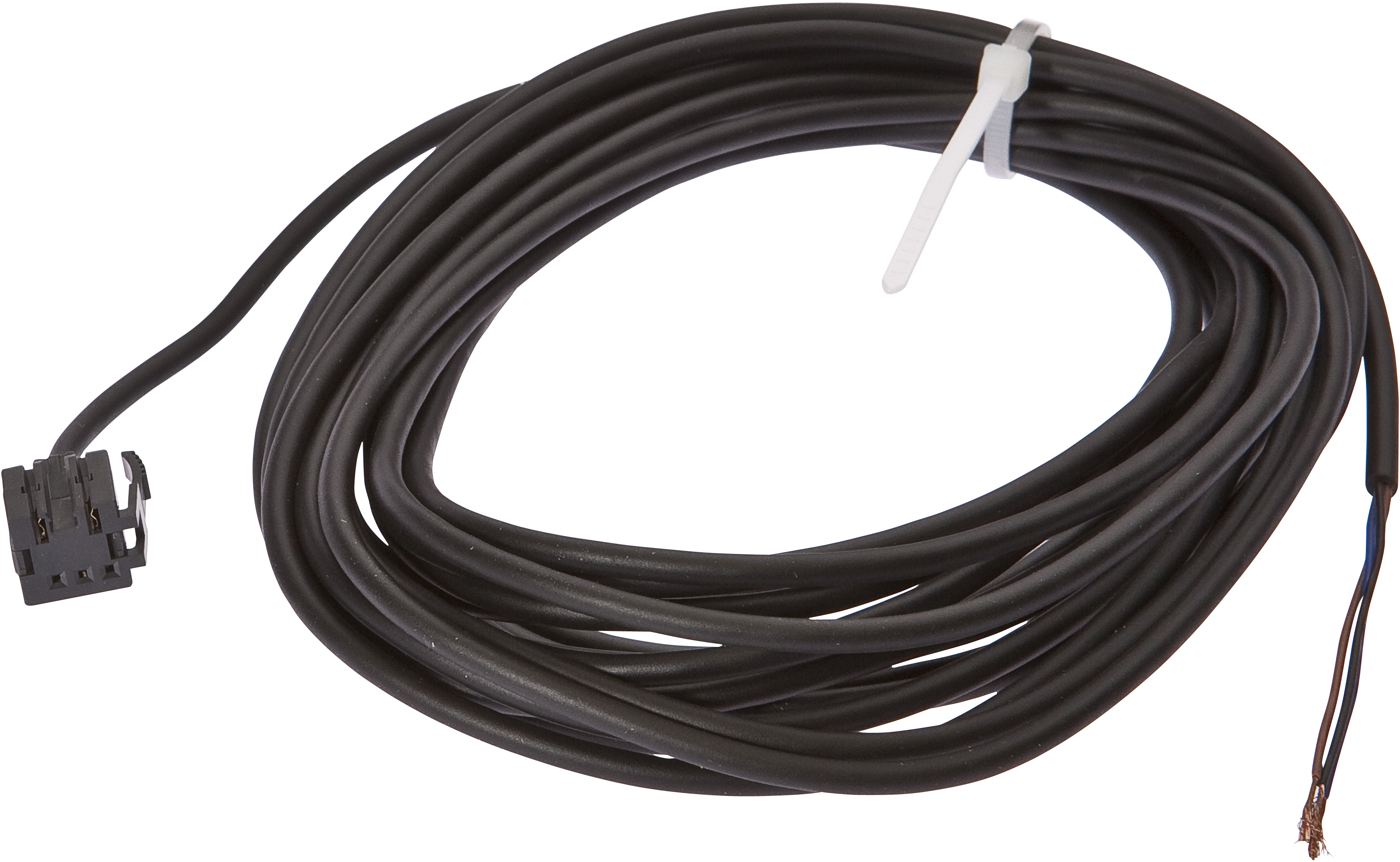

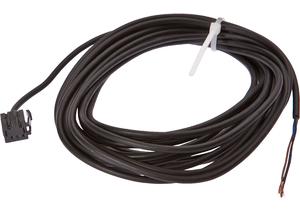

Accessories, fiber optics, cable, 5m, blade terminal socket 3-pin straight, free cable tail, 3-wire, PUR (polyurethane), Ø3mm, plastic, welding area
Compare
Connection technology - Cable sockets / connectors pre-assembled on one side
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of A electrical connection
- Blade terminal
- Type of B electrical connection
- Free conductor end
- Number of pins of A connection
- 3
Mechanical properties
- Line diameter
- 3mm
- Number of cores
- 3
- Cable length
- 5m
- Cable infeed of A connection
- straight
- Housing material
- Plastic
- Material of cable sheath
- Perm. ambient temperature of cable, flexible cable
- -10 - 55°C
Other properties
- Flame retardant
- No
- Ambient temperature
- -10 - 55°C
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060311 |
| eClass-9.1 | 27060311 |
| ETIM-6.0 | EC001855 |
| ETIM-7.0 | EC001855 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 150 x 25 x 200mm |
| gross weight | 83g |
| 0,25kg CO₂e | |
| Customs tariff number | 85444290 |
| WEEE number | 40951076 |
