Accessories - Round cylinder mount
AM000044
Available

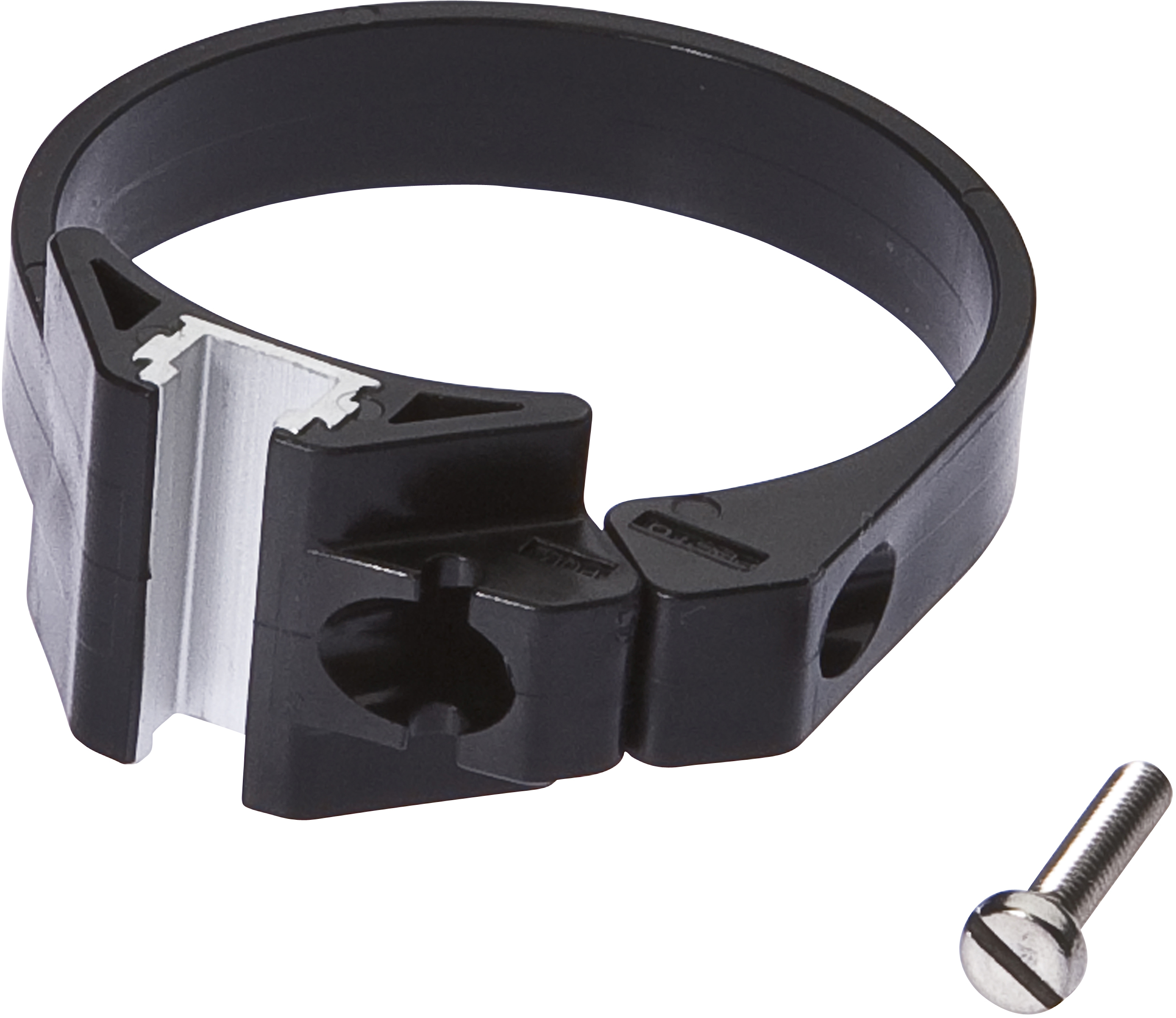

accessories magnetic, Mounting clip, 50x45x19mm, span 40.8-42.8mm, Plastic, For sensor MZ07, for Cylinder, 40round
Compare
Accessories - Round cylinder mount
Mechanical properties
- Width
- 19mm
- Height
- 50mm
- Length
- 45mm
- Span
- 40.8 - 42.8mm
- Material
- Plastic
- Accessories for
- To fix to
- Cylinder, 40round
Other properties
- Ambient temperature
- -20 - 70°C
Datasheets

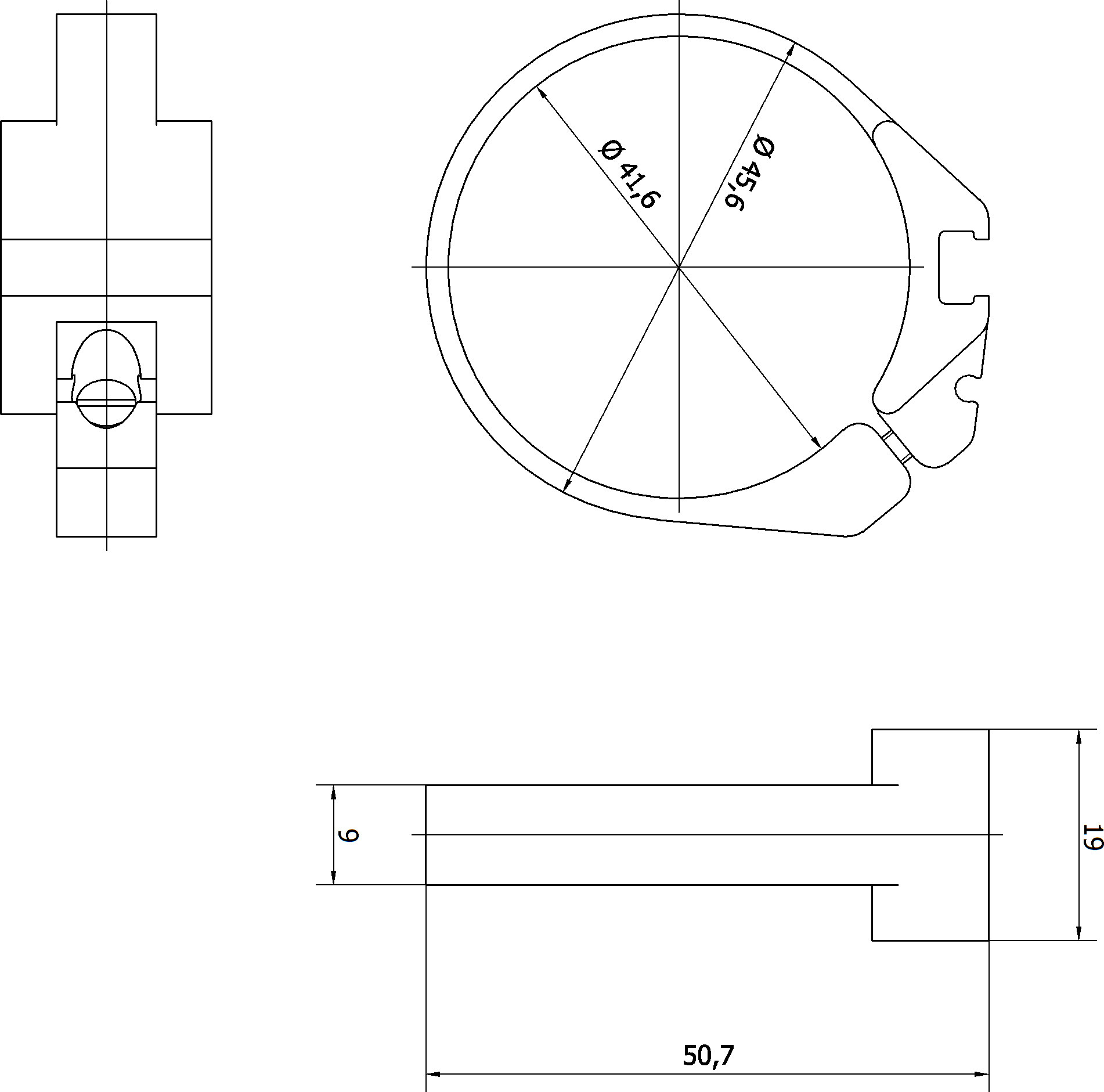

Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27279202 |
| eClass-7.1 | 27279202 |
| eClass-8.0 | 27279202 |
| eClass-9.0 | 27273701 |
| eClass-9.1 | 27273701 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 20 x 120mm |
| gross weight | 10g |
| 0,17kg CO₂e | |
| Customs tariff number | 39269097 |
| WEEE number | 40951076 |
