LED lights - Signal lights

AO000486

List price

84,30 €

amount	price	discount
1	84,30 €	–
5	81,77 €	3% / 2,53 €
10	80,09 €	5% / 4,22 €
20	77,56 €	8% / 6,74 €
50	74,18 €	12% / 10,12 €

Available

LED signal light, M12x1 47long, multicolor LED, 0.9W, 10-30V DC, M12-connector 4-pin, IP67, stainl. steel+plastic diffuse

including Nut

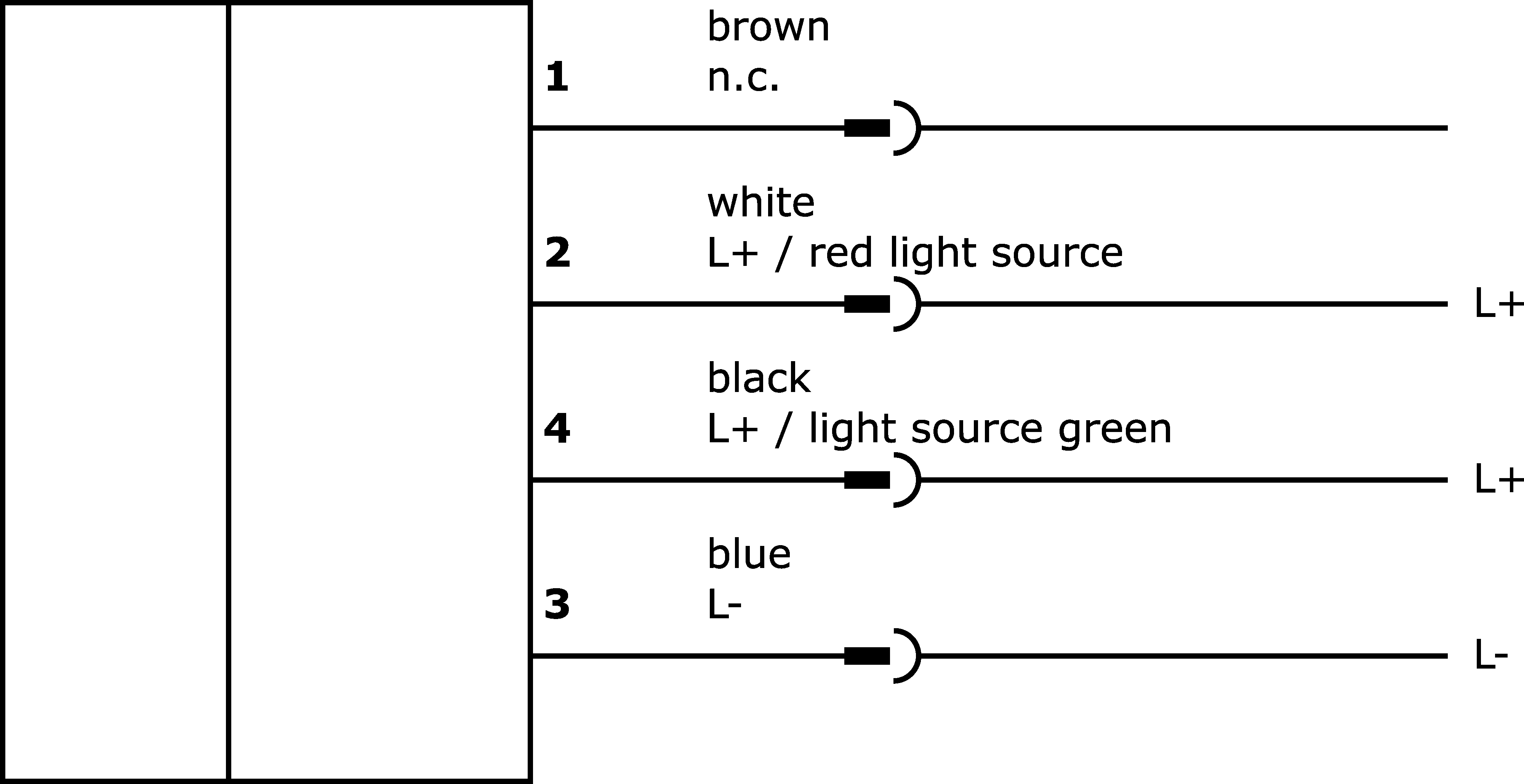

circuit diagram

dimensional drawing

3D model

Compare

LED lights - Signal lights

Signal lights, also described as indicator lights, are visual indicators that convey information via the status of devices or systems. They can signal certain messages or warnings using different colors and patterns such as flashing or lighting up. A high degree of protection and stainless steel housing ensure safe signal transducers.

Electrical properties

Type of electrical connection: Connector M12

Rated operating current: 16mA

Power: 0.9W

Number of pins: 4

Protection class: III

: Reverse polarity protection

Operating voltage

Electrical connection

Mechanical properties

Design: Cylinder, screw-thread

Thread pitch: 1mm

Length: 47mm

Degree of protection (IP): IP67

Front screen scattering behavior: diffuse

Housing material: Stainless steel 1.4305

Front screen material: Plastic

Thread dimension: M12

Diameter: 12mm

dimensions

Optical properties

Risk group: 1

Number of LEDs: 1

Illumination in the center (distance 1 m): 0.6lx

Light source: Multi-colored LED

Angle of beam spread: 170°

Signal color: Green, Red

Other properties

Ambient temperature: -20 - 50°C

Harsh environmental conditions: Yes
