DISCONTINUED PRODUCT
AO000505
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!
accessories optical, Adapter ring, for Camera illumination, filter thread M27x0.5, light thread M40.5x0.5, Aluminum
Compare
Accessories - Camera lighting - Mounting
Mechanical properties
- Adaption
- Lens - Ring light
- Filter thread size, metric
- 27
- Pitch of filter thread
- 0.5mm
- Pitch of lamp thread (internal)
- 0.5mm
- Thread dimension of the filter thread
- M27
- Thread dimension of the luminaire internal thread
- M40.5
Other properties
- Focusable
- No
Datasheets

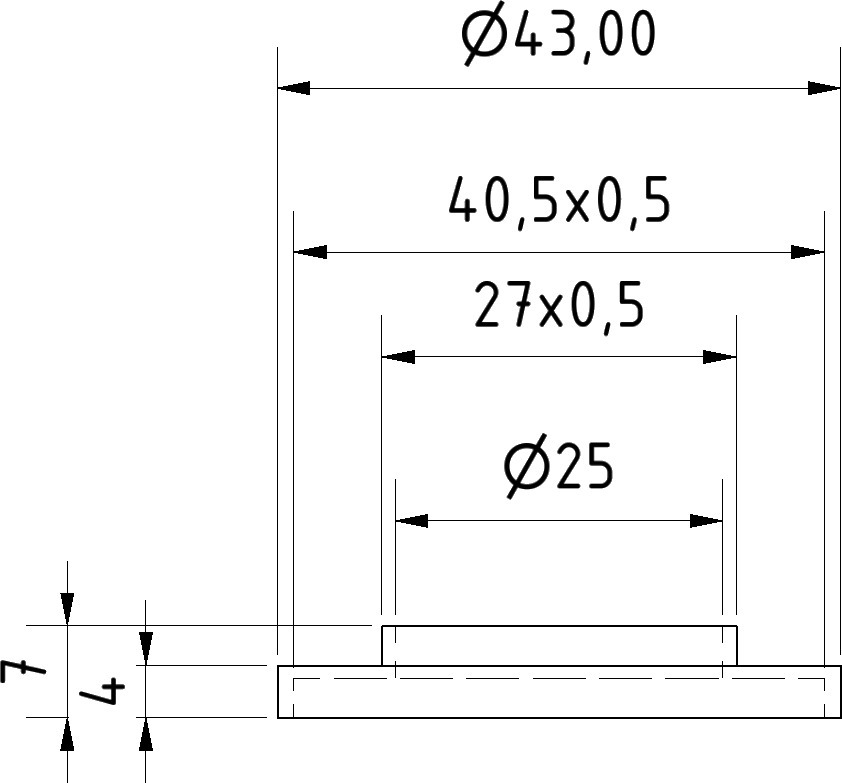

Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27119290 |
| eClass-7.1 | 27119290 |
| eClass-8.0 | 27119290 |
| eClass-9.0 | 27119290 |
| eClass-9.1 | 27119290 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 914 accessories camera sensors |
| packaging dimensions | |
| gross weight | 150g |
| Customs tariff number | 76169990 |
| WEEE number | 40951076 |
