Individual data sheet
PDF-file, 501 KB
DISCONTINUED PRODUCT
AO000623
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!
Accessories Optical, lens protection housing, M46x0.75 79lang, aluminum+glass
Compare

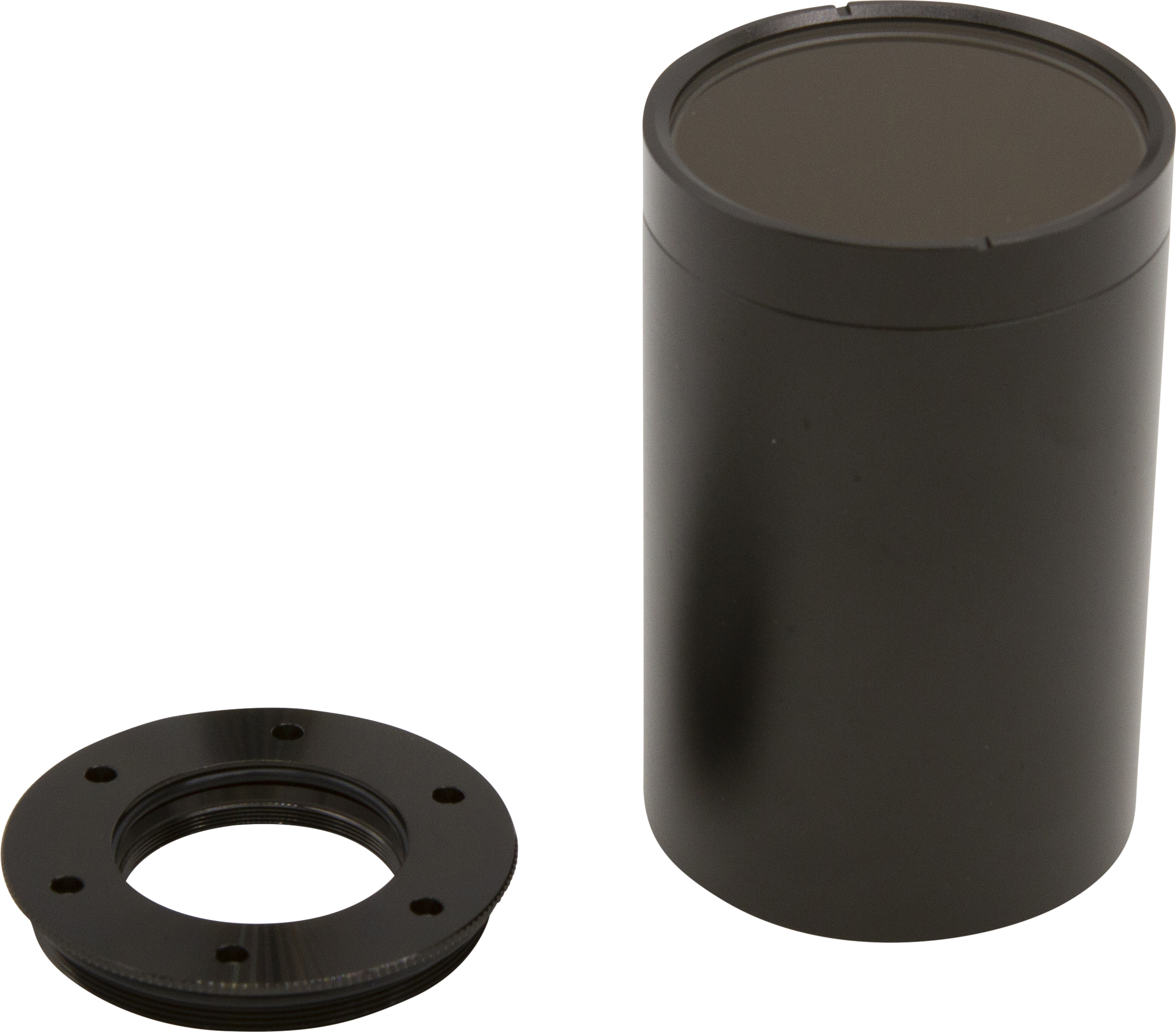

Accessories - Protective housing
Optical accessories, lens protective housing, M46x0.75 79 long, aluminum+glass

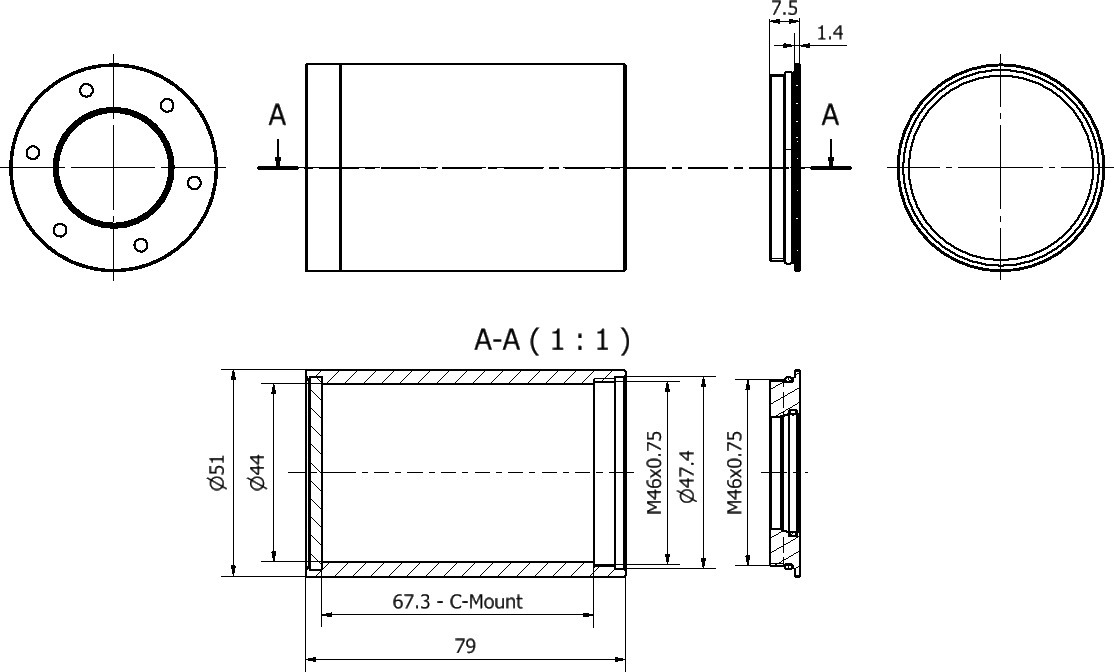

Mechanical properties
- Outer diameter
- 51mm
- Thread pitch
- 0.75mm
- Inner diameter
- 44mm
- Length
- 79mm
- Material
- Aluminum
- Active area material of sensor
- glass
- Inner length
- 68.5mm
- Thread dimension
- M46
Other properties
- Version
- Lens protection housing
Datasheets
Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27319290 |
| eClass-7.1 | 27319290 |
| eClass-8.0 | 27319290 |
| eClass-9.0 | 27319290 |
| eClass-9.1 | 27319290 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 914 accessories camera sensors |
| packaging dimensions | 74 x 74 x 143mm |
| gross weight | 166g |
| Customs tariff number | 76169990 |
| WEEE number | 40951076 |
