Individual data sheet
PDF-file, 521 KB
Accessories - Mounting
AO000654
On demand

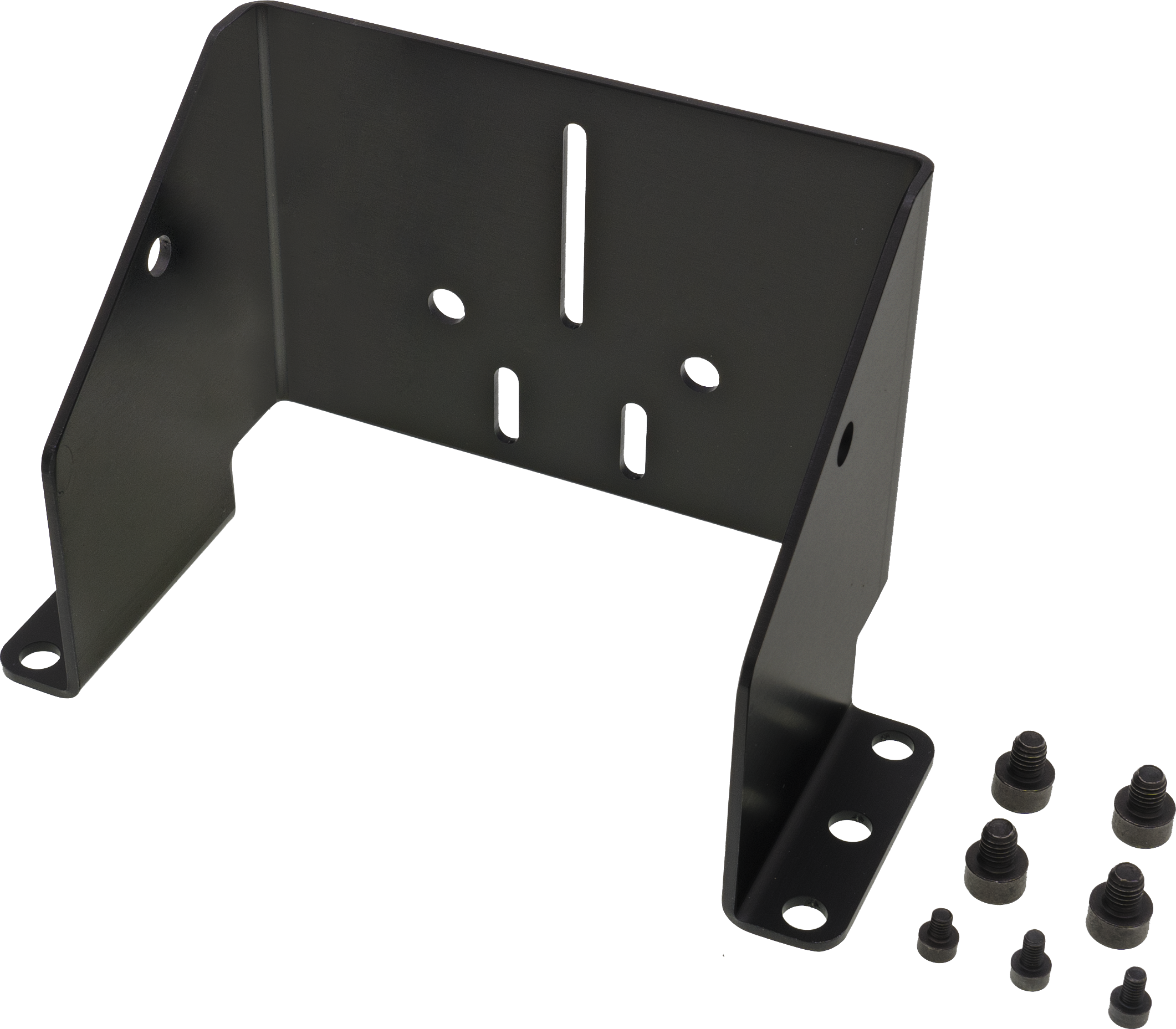

Accessories Optical, mounting bracket, 130x66x61,5mm, anodized aluminum
including Screw
Compare
Accessories - Mounting
for mounting ring lights Ø130mm and dark field lights EF750xxx
Mechanical properties
- Width
- 66mm
- Height
- 61.5mm
- Length
- 130mm
- Surface
- Anodized
- Material
- Aluminum
- Accessories for
- Camera illumination
Other properties
- Version
- Mounting bracket
Datasheets

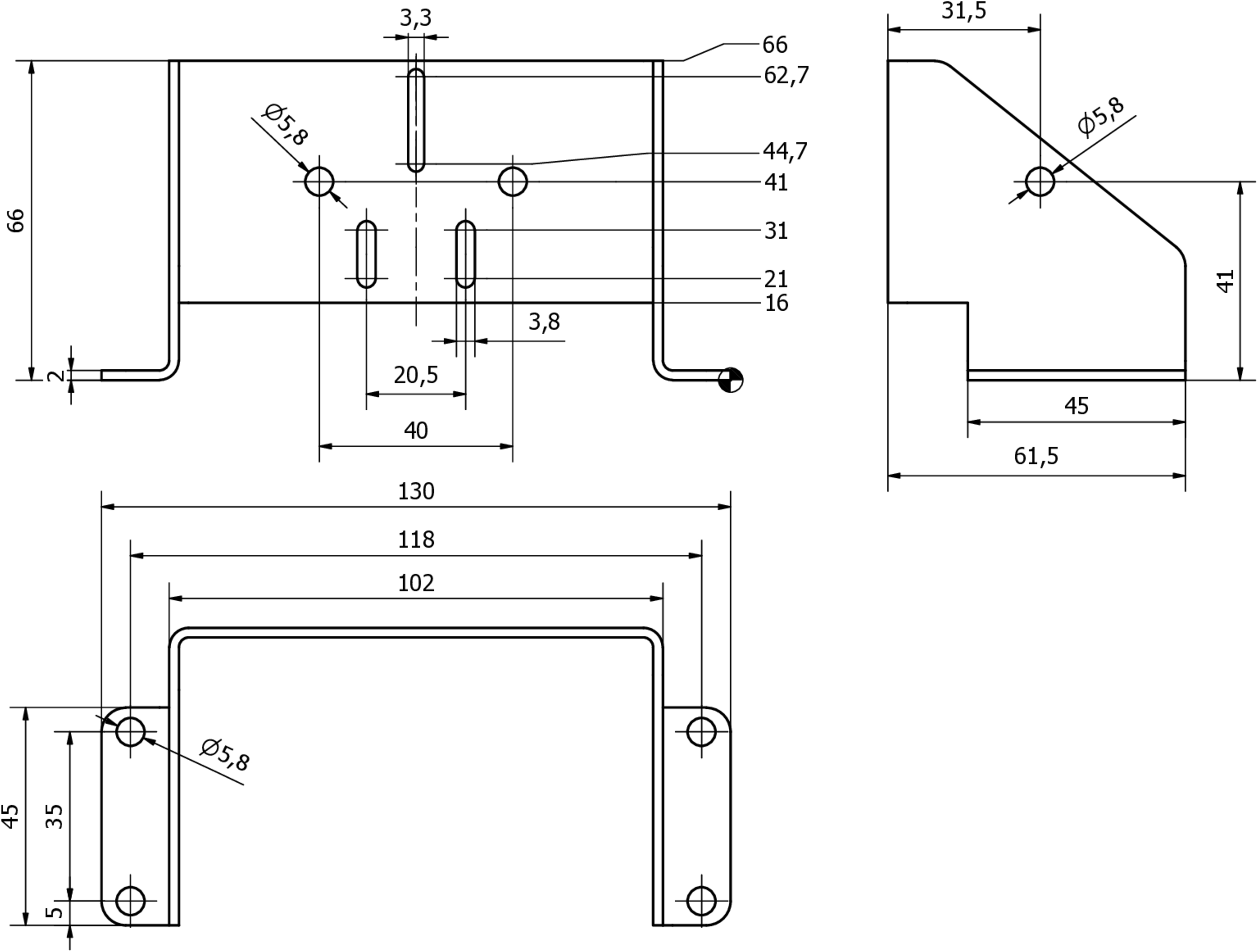

Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27279202 |
| eClass-7.1 | 27279202 |
| eClass-8.0 | 27279202 |
| eClass-9.0 | 27273701 |
| eClass-9.1 | 27273701 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 914 accessories camera sensors |
| packaging dimensions | 180 x 70 x 127mm |
| gross weight | 98g |
| 0,95kg CO₂e | |
| Customs tariff number | 76169990 |
| WEEE number | 40951076 |
