DISCONTINUED PRODUCT

AO000655

AO000655
Successor model?
We would be pleased to advise you!
Flash controller, 80x96.3x53.8mm, 4 channels, 12-26V diagnostic coverage, terminals , RJ45 , Modbus TCP software ,LED display

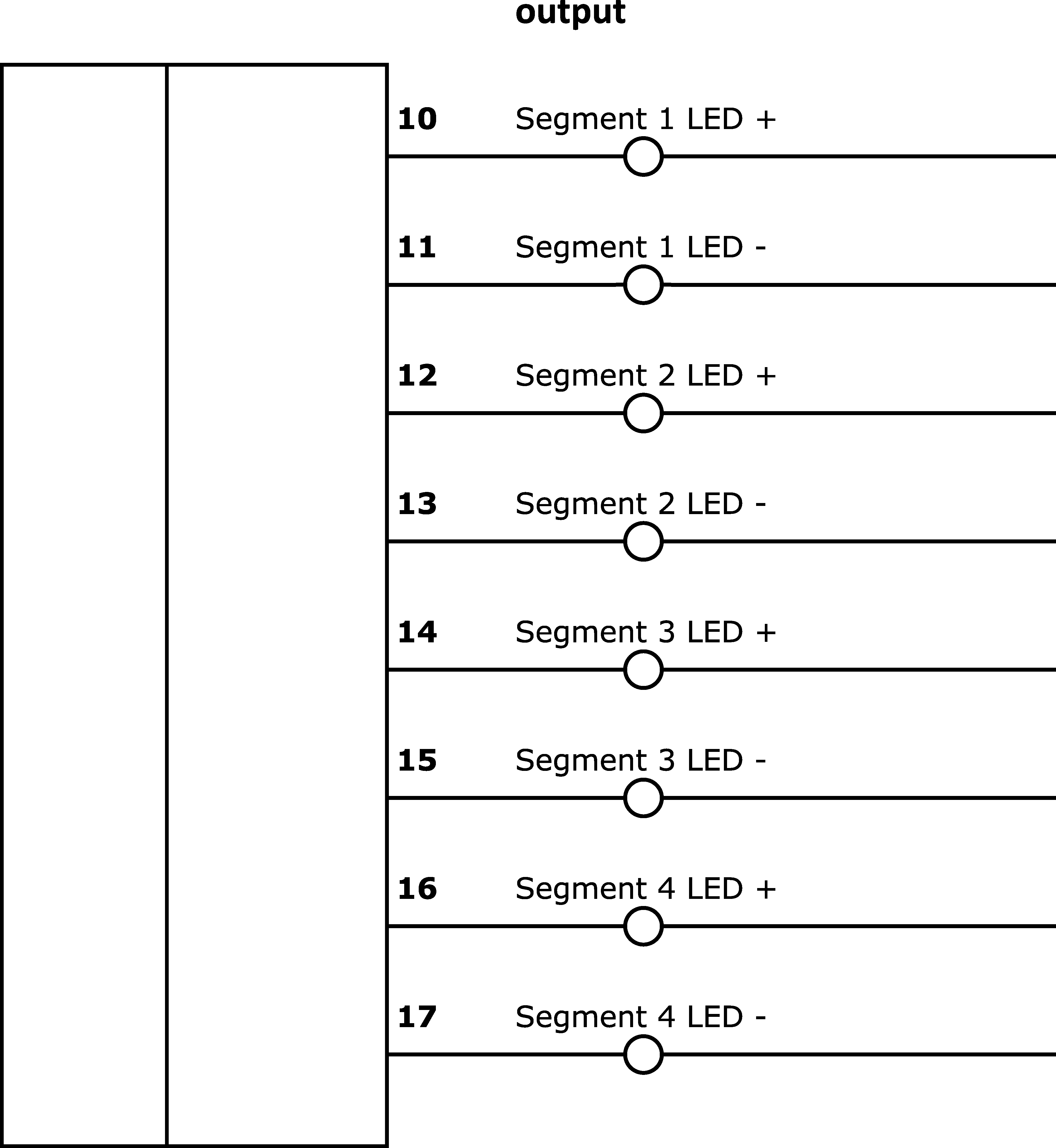

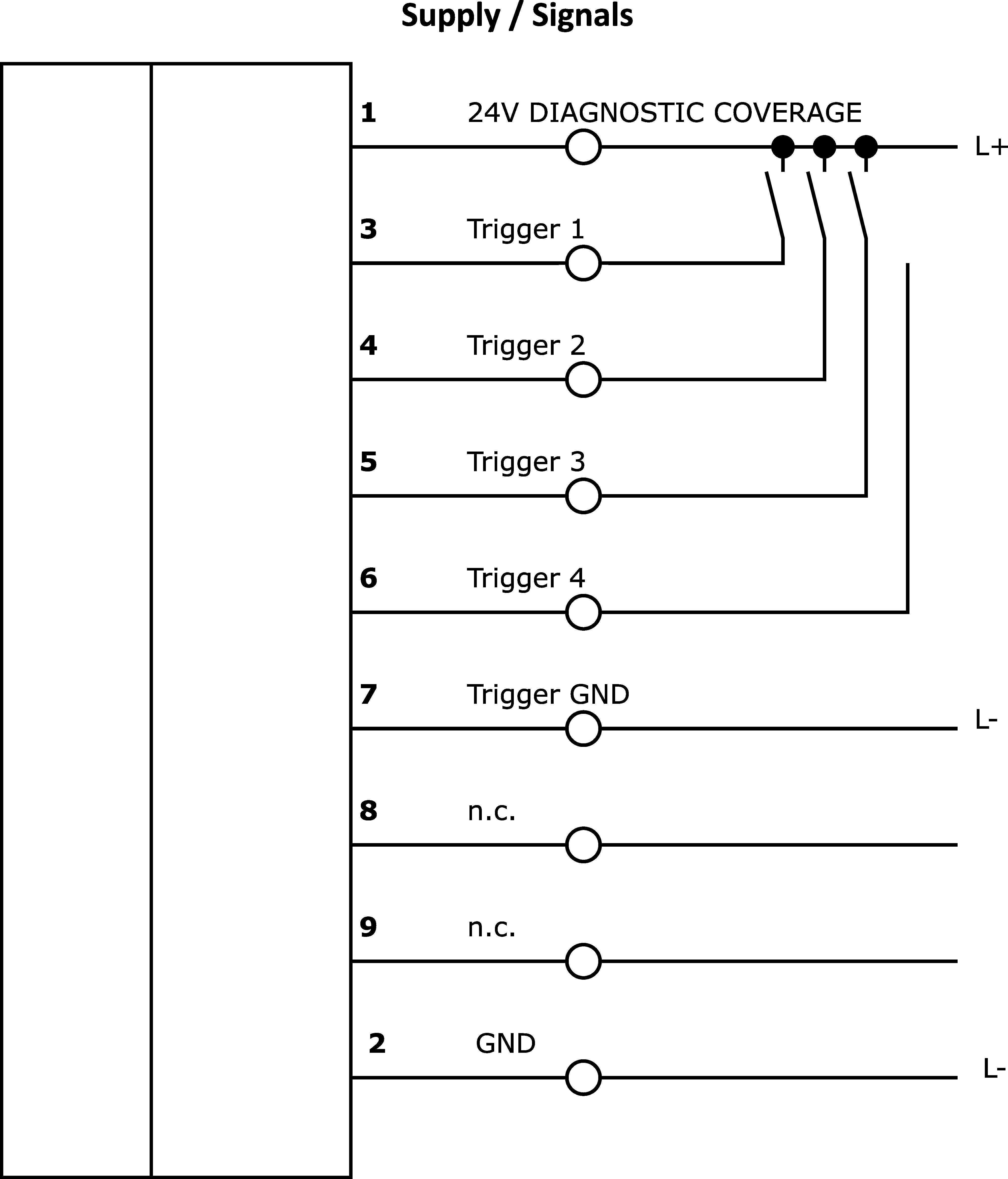

circuit diagram
dimensional drawing
3D model
Compare

Accessories - Flash controller

The controller allows to control up to four LED channels. Via a Modbus interface and its own SDK, which is included free of charge, this controller is set. Alternatively, the easy-to-operate software based on MS Windows 10® can be downloaded for uncomplicated controller management.

The LED controller offers a current-controlled mode for continuous light, as well as voltage-controlled mode for short, precise and powerful flashes. The 4 channels can be controlled separately or linked together

Electrical properties

Number of channels
4
Type of electrical connection
Clamped terminal connection
Rated switching current
4,000mA
Max. continuous current
6A
Max. peak current
21,000mA
Protection class
III
Supported communication interface
Ethernet
Flash duration
10 - 59,000,000µs
Display
LED display

Mechanical properties

Design
Cuboid
Width
53.8mm
Height
80mm
Length
96.3mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20

Other properties

Relative air humidity (non-condensing)
30 - 70%
Ambient temperature
10 - 30°C
Version
Field device
Classification Class
eClass-7.0 27319290
eClass-7.1 27319290
eClass-8.0 27319290
eClass-9.0 27319290
eClass-9.1 27319290
ETIM-6.0 EC002924
ETIM-7.0 EC002924
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 915 camera illumination
packaging dimensions 170 x 80 x 180mm
gross weight 360g
Customs tariff number 85423190
WEEE number 40951076
