Accessories - Filter

AO000658

AO000658
List price
260,00 €
On demand

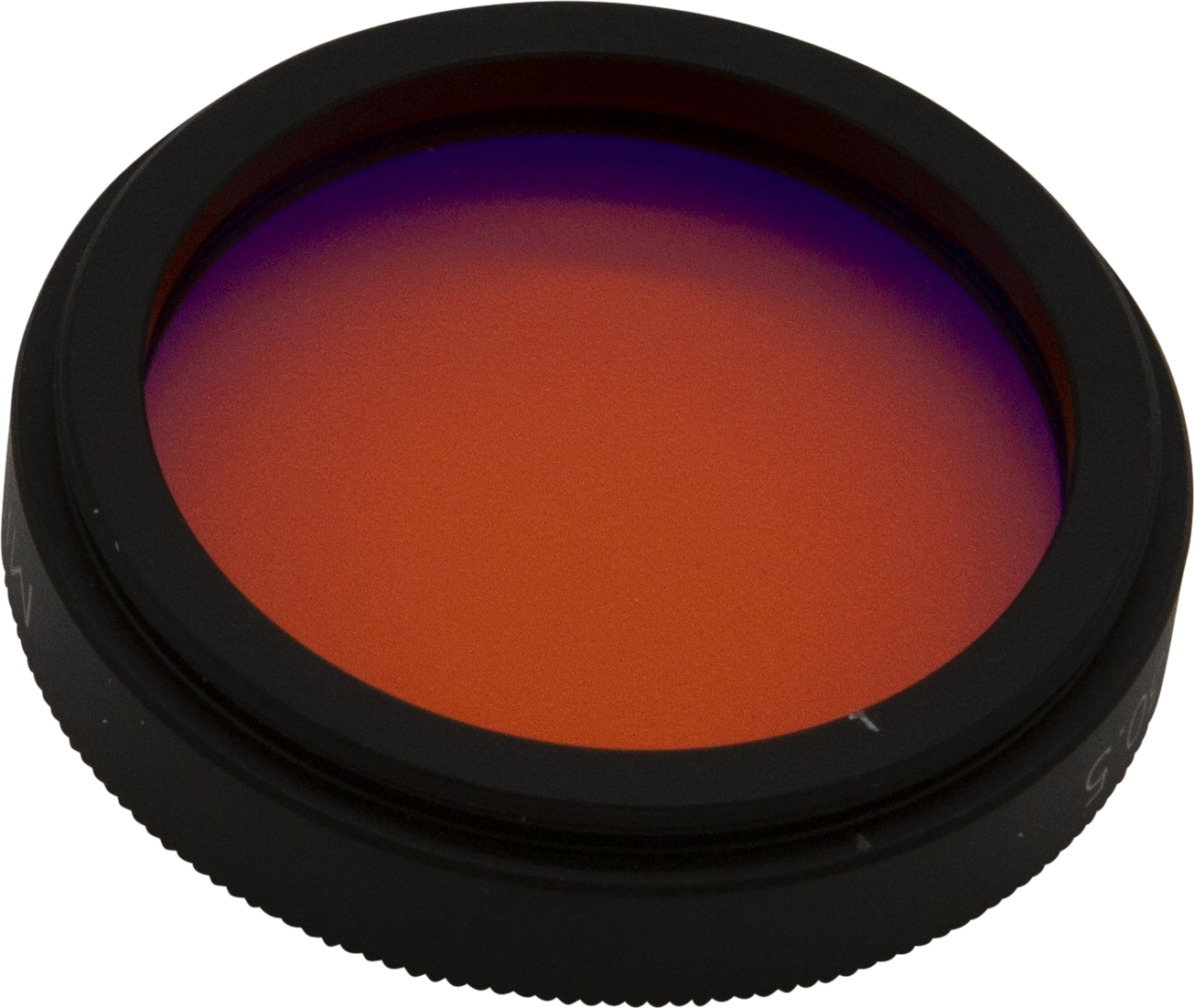

Accessories Optical, Bandpass filter, M30.5x0.5, Filter color orange, Transmissive wavelength range 560-600nm, Aluminum+Glass
Compare

Accessories - Filter

The use of optical filters is a cost-effective means of optimizing image information. In most cases, the basic idea is to increase the contrast in the resulting image. This can be achieved, for example, by suppressing interfering wavelength ranges in the light spectrum, so that colored features can be brightened or darkened, as when using colored illumination. Interfering extraneous light influences can be avoided or simply the wavelengths of the light used can be limited so that the camera sensor works at its optimum.

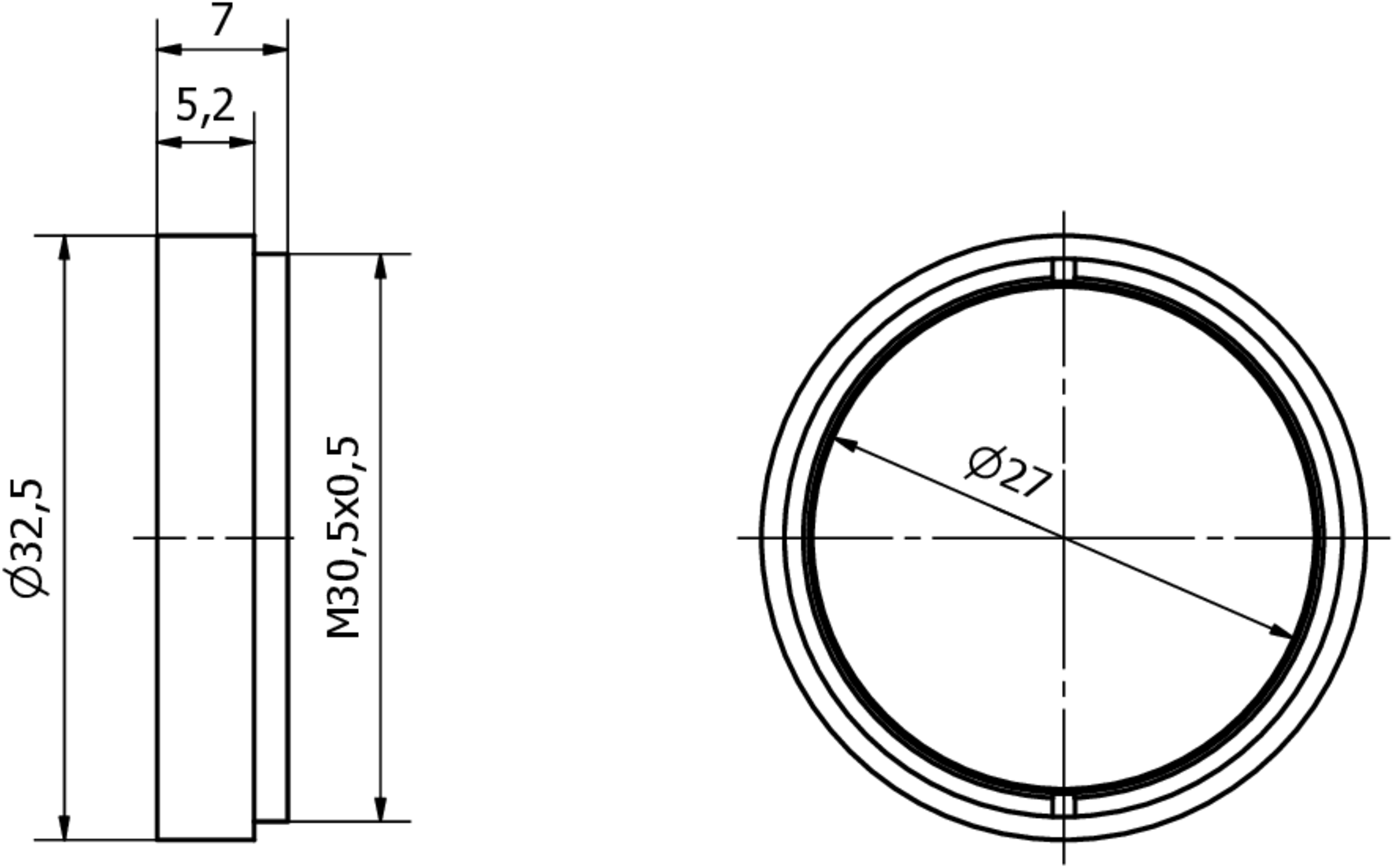

Mechanical properties

Outer diameter
32.5mm
Thread pitch
0.5mm
Height
5mm
Inner diameter
25.5mm
Material
Aluminum
Active area material of sensor
glass
Thread dimension
M30.5

Optical properties

Permeable wavelength range
560 - 600nm

Other properties

Filter color
orange
Classification Class
eClass-7.0 27279206
eClass-7.1 27279206
eClass-8.0 27279006
eClass-9.0 27273604
eClass-9.1 27273604
ETIM-6.0 EC003015
ETIM-7.0 EC003015
Property Value
RoHS‑compliant Yes
TSCA-compliant Yes
IPF Product Group 914 accessories camera sensors
packaging dimensions 100 x 20 x 165mm
gross weight 21g
0,01kg CO₂e
Customs tariff number 90022000
WEEE number 40951076
