Automatic data sheet
PDF-file, 480 KB
Accessories - Mounting
AO000667
On demand

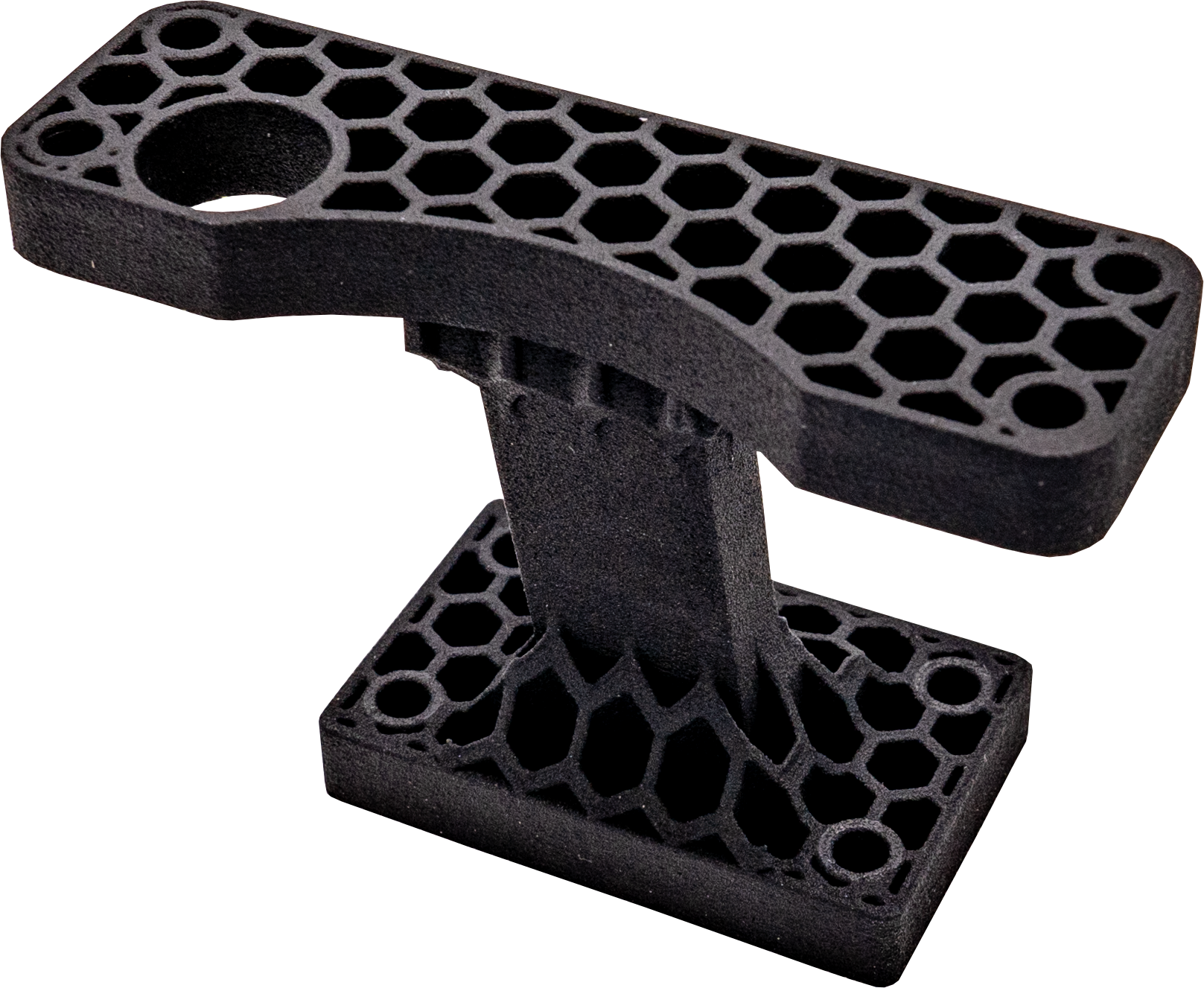

Accessories Optical, holder, plastic
including 8x Hexagon socket screw
Compare
Accessories - Mounting
For attaching the ER700X70 ring light to the OC53 camera with C-mount connection
Mechanical properties
- Width
- 32mm
- Height
- 65mm
- Length
- 80mm
- Material
- Plastic
Other properties
- Type of accessory
- Holder
Datasheets

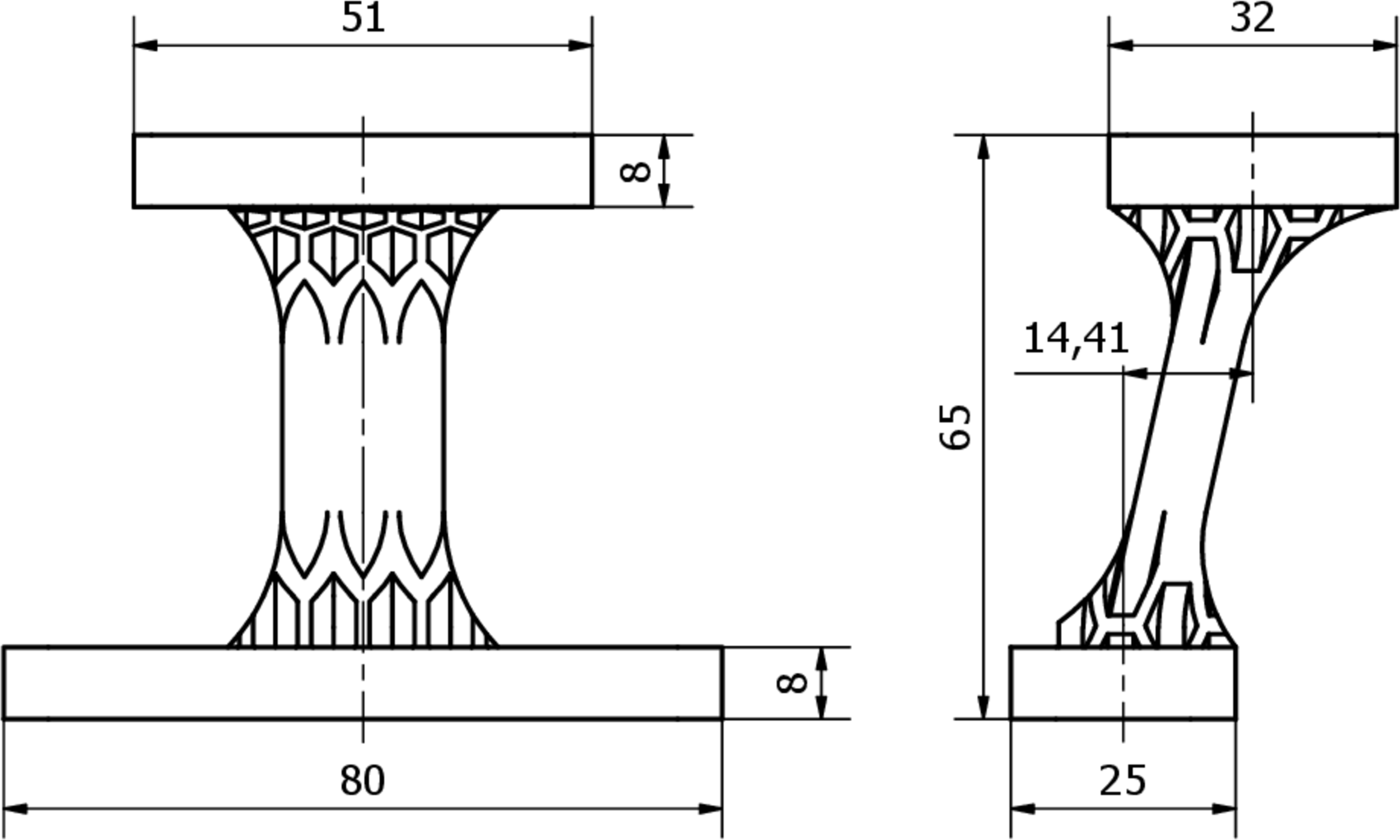

Drawings
| Classification | Class |
|---|---|
| eClass-7.0 | 27279202 |
| eClass-7.1 | 27279202 |
| eClass-8.0 | 27279202 |
| eClass-9.0 | 27273701 |
| eClass-9.1 | 27273701 |
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC000000 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 914 accessories camera sensors |
| packaging dimensions | 200 x 35 x 120mm |
| gross weight | 40g |
| Customs tariff number | 39269097 |
| WEEE number | 40951076 |
