Accessories - Attachment optics
AO98E236
Scarce

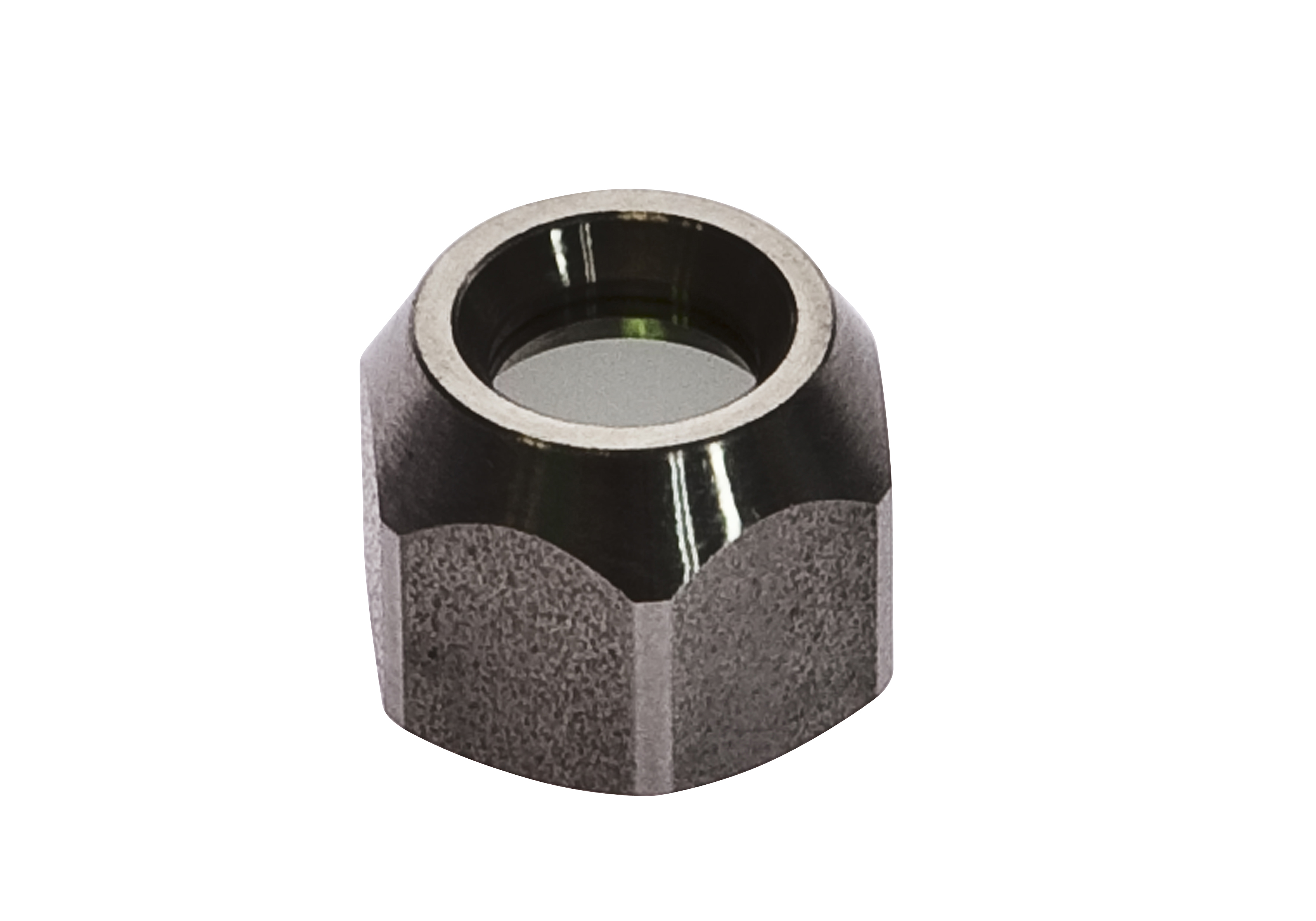

Accessories Optical, attachment optics, metal, glass, M12x1
Compare
Accessories - Attachment optics
Accessories Optical, attachment optics, metal, glass, M12x1
Mechanical properties
- Thread pitch
- 1mm
- Material of optical surface
- Zinc sulphide
- Housing material
- Stainless steel 1.4404
- Seal material at process connection
- Plastic (PTFE)
- Thread dimension
- M12
Other properties
- Version
- Optics attachment
Datasheets

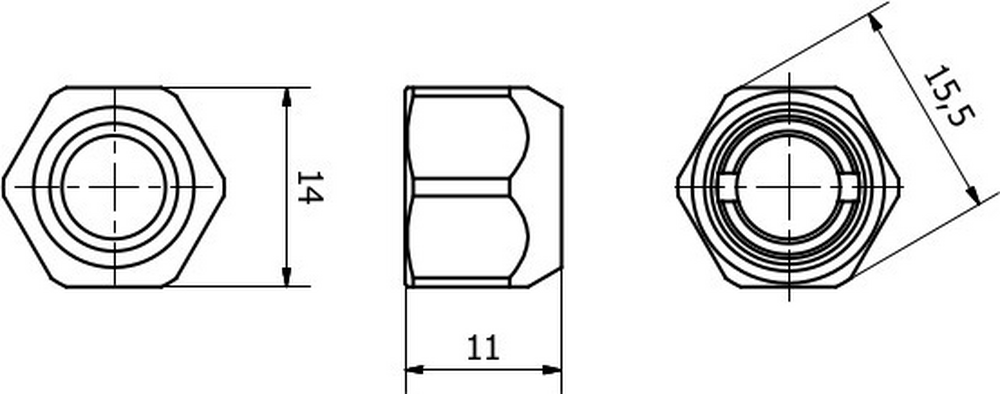

Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27279205 |
| eClass-7.1 | 27279205 |
| eClass-8.0 | 27279205 |
| eClass-9.0 | 27270992 |
| eClass-9.1 | 27270992 |
| ETIM-6.0 | EC002594 |
| ETIM-7.0 | EC002594 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 11 x 120mm |
| gross weight | 8g |
| 0,27kg CO₂e | |
| Customs tariff number | 90029000 |
| WEEE number | 40951076 |
