Accessories - Fittings - Adapters
AS000013
Scarce

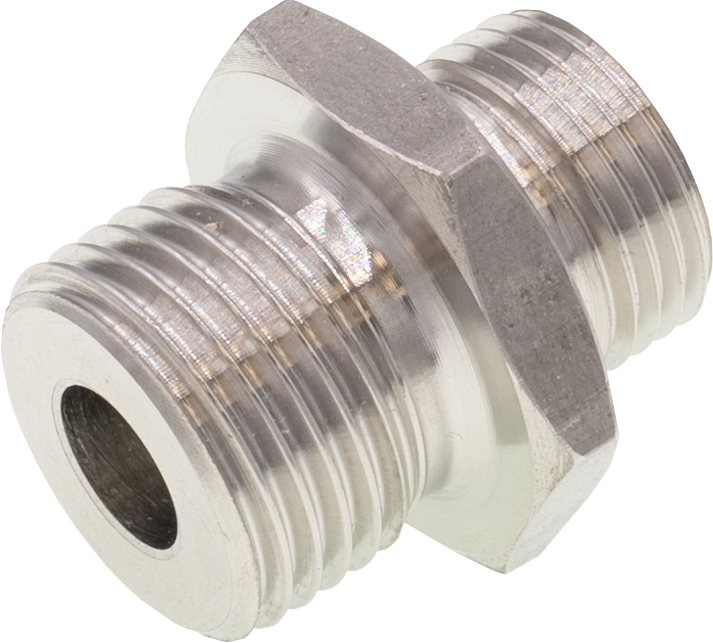

accessories flow, Adapter, M18x1.5 30long, V4A
Compare
Accessories - Fittings - Adapters
Mechanical properties
- Design
- Straight
- Thread pitch
- 1.5mm
- Length
- 30mm
- Material
- Stainless steel 1.4571
- Thread dimension
- M18
- Version of the process connection A
- Version of the process connection B
Datasheets

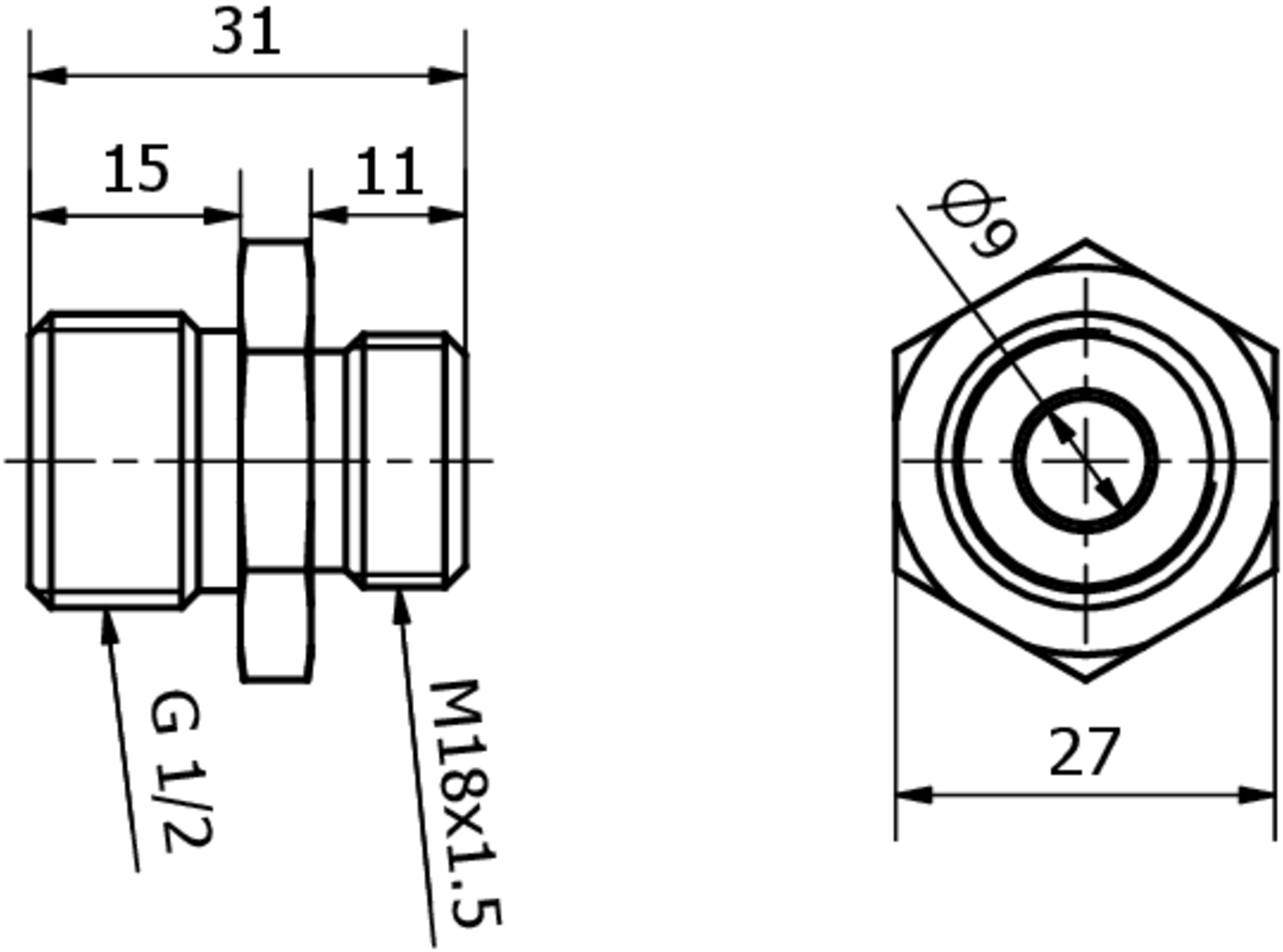

Drawings
Product Compliance
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 22560205 |
| eClass-7.1 | 22560205 |
| eClass-8.0 | 22560205 |
| eClass-9.0 | 22560205 |
| eClass-9.1 | 22560205 |
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC003024 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 153 x 22 x 163mm |
| gross weight | 63g |
| 0,89kg CO₂e | |
| Customs tariff number | 90269000 |
| WEEE number | 40951076 |
