Accessories - Optical sensors - Assembly
AY000135
Scarce

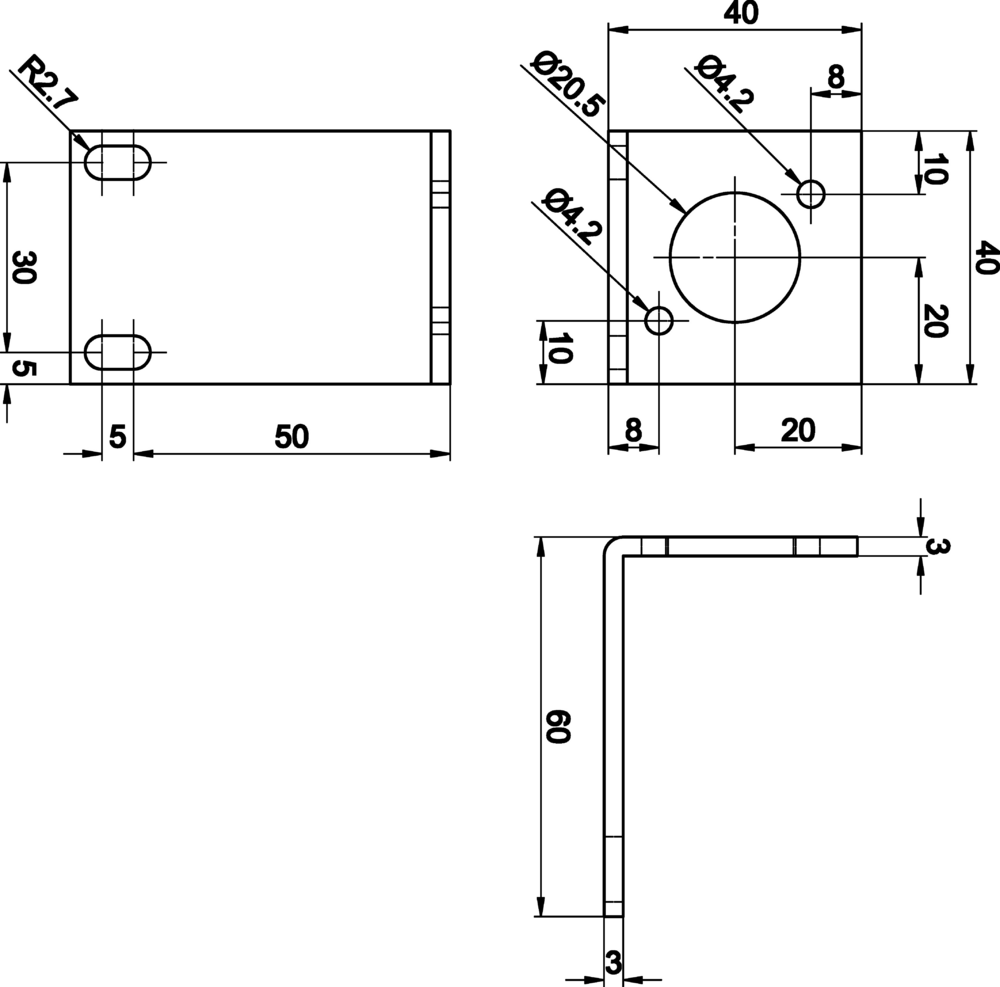

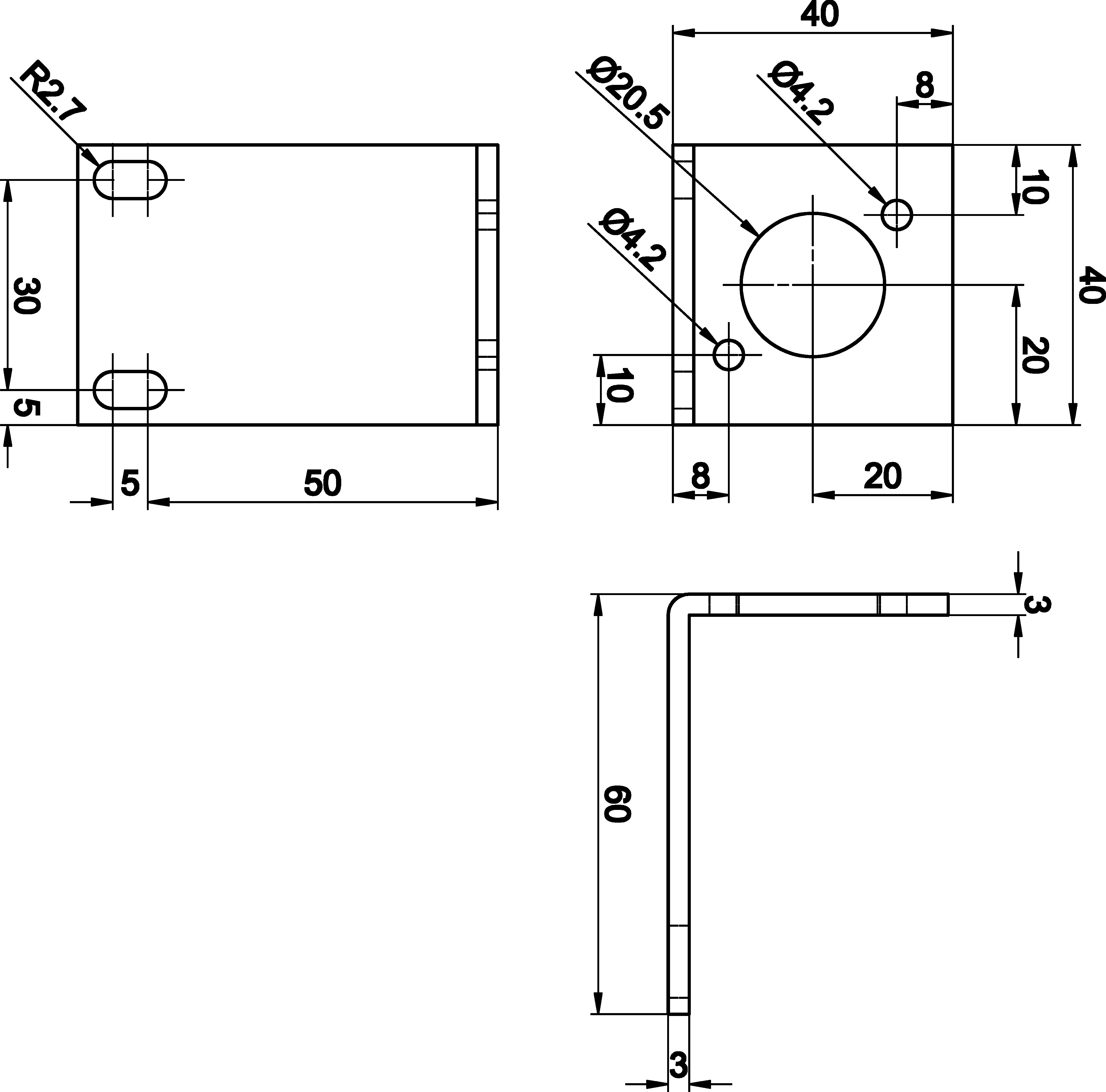

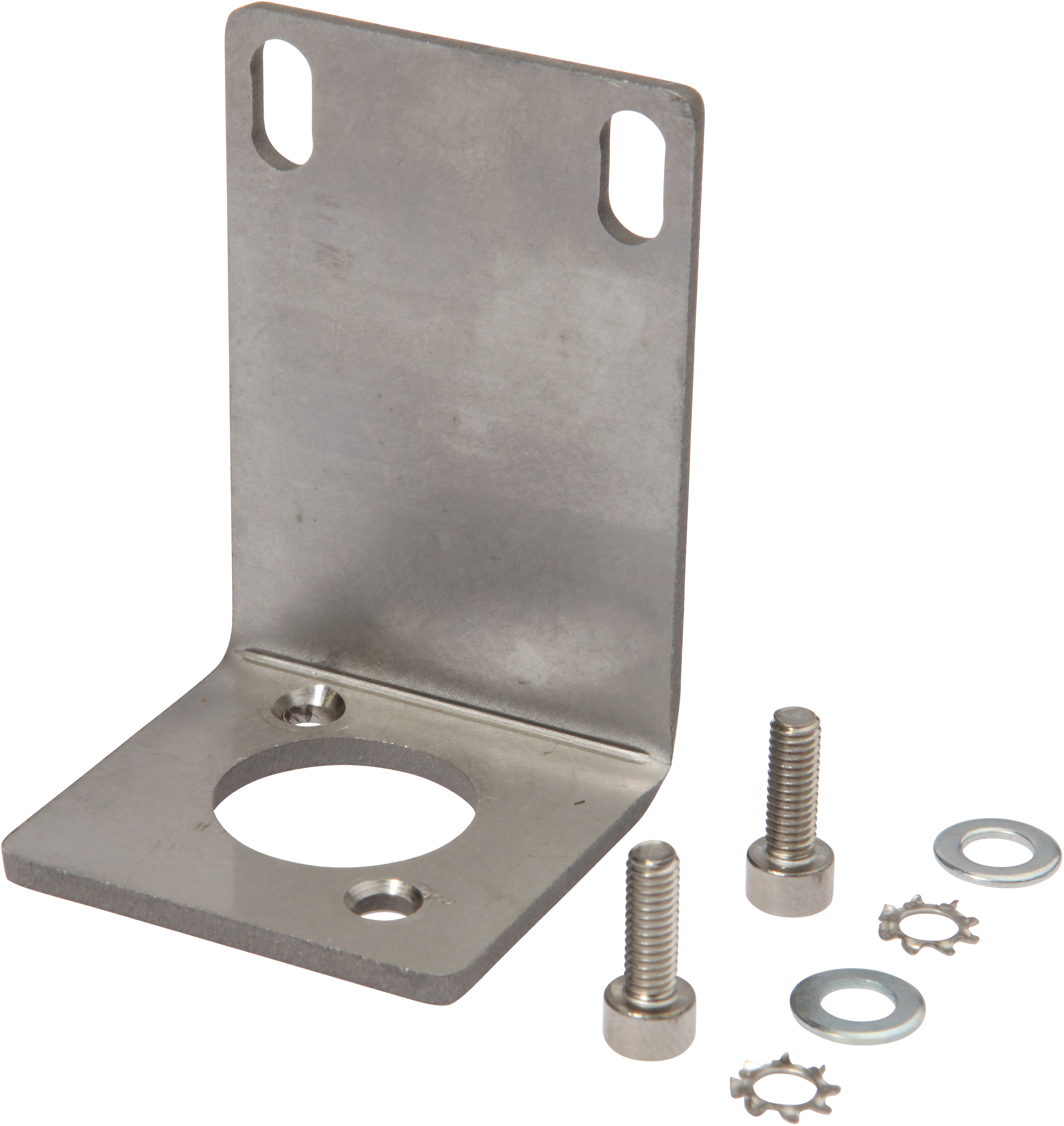

accessories sensor, Mounting angle bracket, M4x0.7 40long, Mounting material for sensor, brackets
including Nut, Screw, Toothed washer
Compare
Accessories - Optical sensors - Assembly
Mechanical properties
- Width
- 40mm
- Diameter of screw-on mounting
- 2.7
- Thread pitch
- 0.7mm
- Height
- 60mm
- Length
- 40mm
- Mounting method
- Screw mounting
- Thread dimension
- M4
| Classification | Class |
|---|---|
| eClass-7.0 | 27279202 |
| eClass-7.1 | 27279202 |
| eClass-8.0 | 27279202 |
| eClass-9.0 | 27273701 |
| eClass-9.1 | 27273701 |
| ETIM-6.0 | EC003015 |
| ETIM-7.0 | EC003015 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 40 x 175mm |
| gross weight | 80g |
| 0,15kg CO₂e | |
| Customs tariff number | 73269098 |
| WEEE number | 40951076 |
