AC000031
accessories counter, Mounting rail adapter, 120x76x77mm, Straight, DIN rail (top hat rail) 35 mm, Plastic, Snap…
Scarce
Counters - Pulse counter
CI090110
| amount | price | discount |
|---|---|---|
| 1 | 127,70 € | – |
| 5 | 123,87 € | 3% / 3,83 € |
| 10 | 121,32 € | 5% / 6,39 € |
| 20 | 117,48 € | 8% / 10,22 € |
| 50 | 112,38 € | 12% / 15,32 € |
Scarce
counter pulse, 24x54x48mm, Display LCD, 12kHz, 4-30V DC, Screw connection 8pin, IP65, Plastic, Adding, Subtracting, Background lighting of LC display, Display range -9999999-9999999
including 2x Sealing ring
Compare
Counters - Pulse counter
In industrial applications, counting, adding / subtracting of pulses, measuring paths or detecting times are common task areas. However, the use of a PLC is not worthwhile evaluating one or two sensors only. In this case, the multi-function encounters of ipf electronic are a good alternative. Various evaluation variants, amongst others frequency meters, sum counters, time relays, tachometers or wear / maintenance counters enable the use in a variety of applications. The batch counter or total sums function also make more complex tasks possible. The integrated front keypad can conveniently be used to program a pre-selection value or the signal evaluation mode for the operation of a linear measurement system or a rotary encoder.
Electrical properties
- Display range, increments
- -9,999,999 - 9,999,999
- Type of electrical connection
- Clamped terminal connection
- Type of signal input A
- PNP/NPN
- Type of signal input B
- PNP/NPN
- Max. npn input frequency
- 30Hz
- Max. pnp input frequency
- 12,000Hz

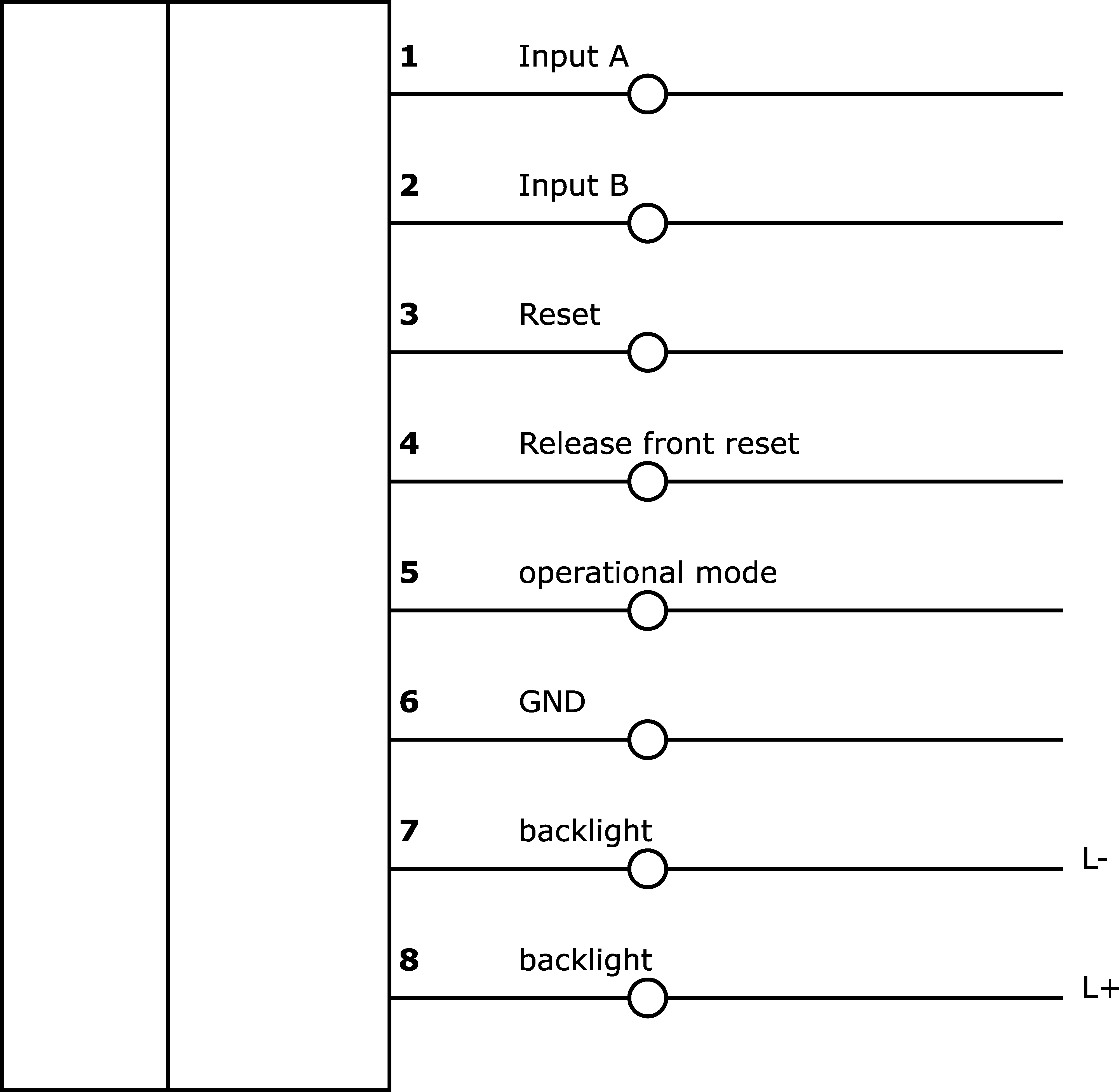

- Number of pins
- 8
- Counting frequency
- 12kHz
- Display
- LCD display (illuminated)
Mechanical properties
- Width
- 48mm
- Installation depth
- 48mm
- Height
- 24mm
- Length
- 53.5mm
- Storage temperature
- 70°C
- Mounting method
- Front mounting
- Degree of protection (IP)
- IP65
- Housing material
- Plastic
Other properties
- 80%
- Ambient temperature
- -10 - 60°C
- Version
- Pulse counter
- counting functions
- adding, subtracting
Top hat rail adapter for CI- & CZ09
Datasheets
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass 7.0 | 27200414 |
| eClass 7.1 | 27200414 |
| eClass 8.0 | 27200414 |
| eClass 9.0 | 27200414 |
| eClass 9.1 | 27200414 |
| ETIM-6.0 | EC002300 |
| ETIM-7.0 | EC002300 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| IPF Product Group | 500 counters |
| packaging dimensions | 70 x 40 x 125mm |
| gross weight | 70g |
| Customs tariff number | 90291000 |
| WEEE number | 40951076 |
