Counters - Pulse counter

CI095400

CI095400
List price
96,90 €
amount price discount
1 96,90 €
5 93,99 € 3% / 2,91 €
10 92,06 € 5% / 4,85 €
20 89,15 € 8% / 7,75 €
50 85,27 € 12% / 11,63 €
Available
counter pulse, 24x54x48mm, Display LCD, 0.03kHz, 10-260V AC, 10-260V DC, Screw connection 8pin, IP65, Plastic, Adding, Display range -9999999-9999999
including 2x Sealing ring
Compare

Counters - Pulse counter

In industrial applications, counting, adding / subtracting of pulses, measuring paths or detecting times are common task areas. However, the use of a PLC is not worthwhile evaluating one or two sensors only. In this case, the multi-function encounters of ipf electronic are a good alternative. Various evaluation variants, amongst others frequency meters, sum counters, time relays, tachometers or wear / maintenance counters enable the use in a variety of applications. The batch counter or total sums function also make more complex tasks possible. The integrated front keypad can conveniently be used to program a pre-selection value or the signal evaluation mode for the operation of a linear measurement system or a rotary encoder.

Electrical properties

Display range, increments
-9,999,999 - 9,999,999

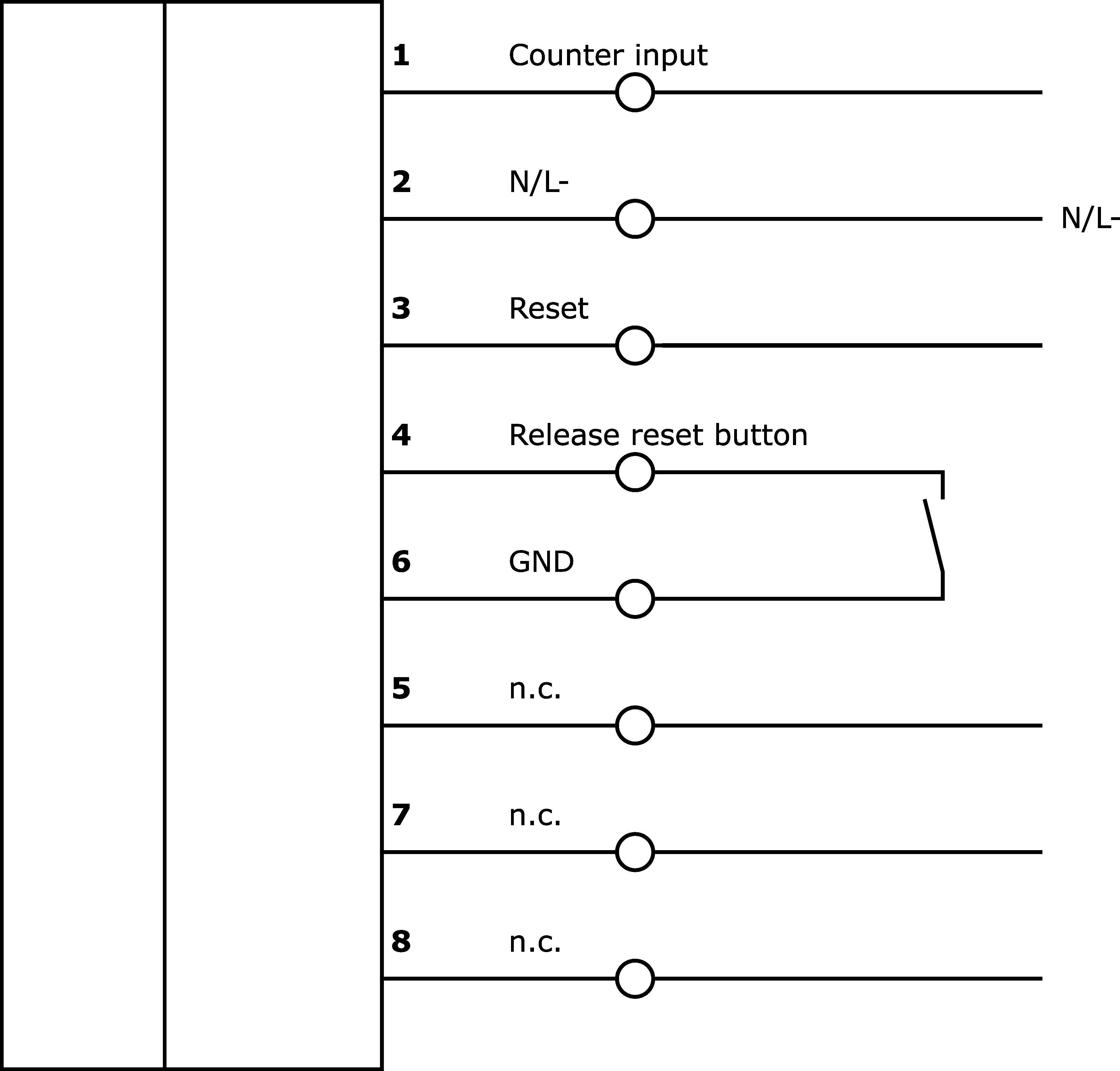

Type of electrical connection
Clamped terminal connection
Number of pins
8
Counting frequency
12kHz
Display
LCD display

Mechanical properties

Width
48mm
Installation depth
48mm
Height
24mm
Length
53.5mm
Storage temperature
70°C
Mounting method
Panel mounting
Degree of protection (IP)
IP65
Housing material
Plastic

Other properties

Relative air humidity (non-condensing)
80%
Ambient temperature
-10 - 60°C
Version
Pulse counter
Classification Class
eClass-7.0 27200414
eClass-7.1 27200414
eClass-8.0 27200414
eClass-9.0 27200414
eClass-9.1 27200414
ETIM-6.0 EC002300
ETIM-7.0 EC002300
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
IPF Product Group 500 counters
packaging dimensions 90 x 35 x 110mm
gross weight 69g
Customs tariff number 90291000
WEEE number 40951076
