AC000037
accessories counter, Mounting frame, 72x72mm
Available
Counter - Multi-function counters
CM034980
| amount | price | discount |
|---|---|---|
| 1 | 285,40 € | – |
| 5 | 276,84 € | 3% / 8,56 € |
| 10 | 271,13 € | 5% / 14,27 € |
| 20 | 262,57 € | 8% / 22,83 € |
| 50 | 251,15 € | 12% / 34,25 € |
Available
counter multifunctional, 48x108x48mm, Display LCD, 12 decades, 30kHz, 2x preset, 90-265V AC, 2x Relay contact Change-over contact (NO/NC), Screw connection 13pin, IP65, Plastic PC, Adding, Subtracting, Background lighting of LC display, With reset...
Compare
Counter - Multi-function counters
Electrical properties
- Number of decades
- 12
- Number of presets to be set
- 2
- Number of switching outputs
- 2
- Type of 2nd switching function
- Change-over contact (NO/NC)
- Type of switching function
- Change-over contact (NO/NC)
- Type of 2nd switching output
- Relay contact

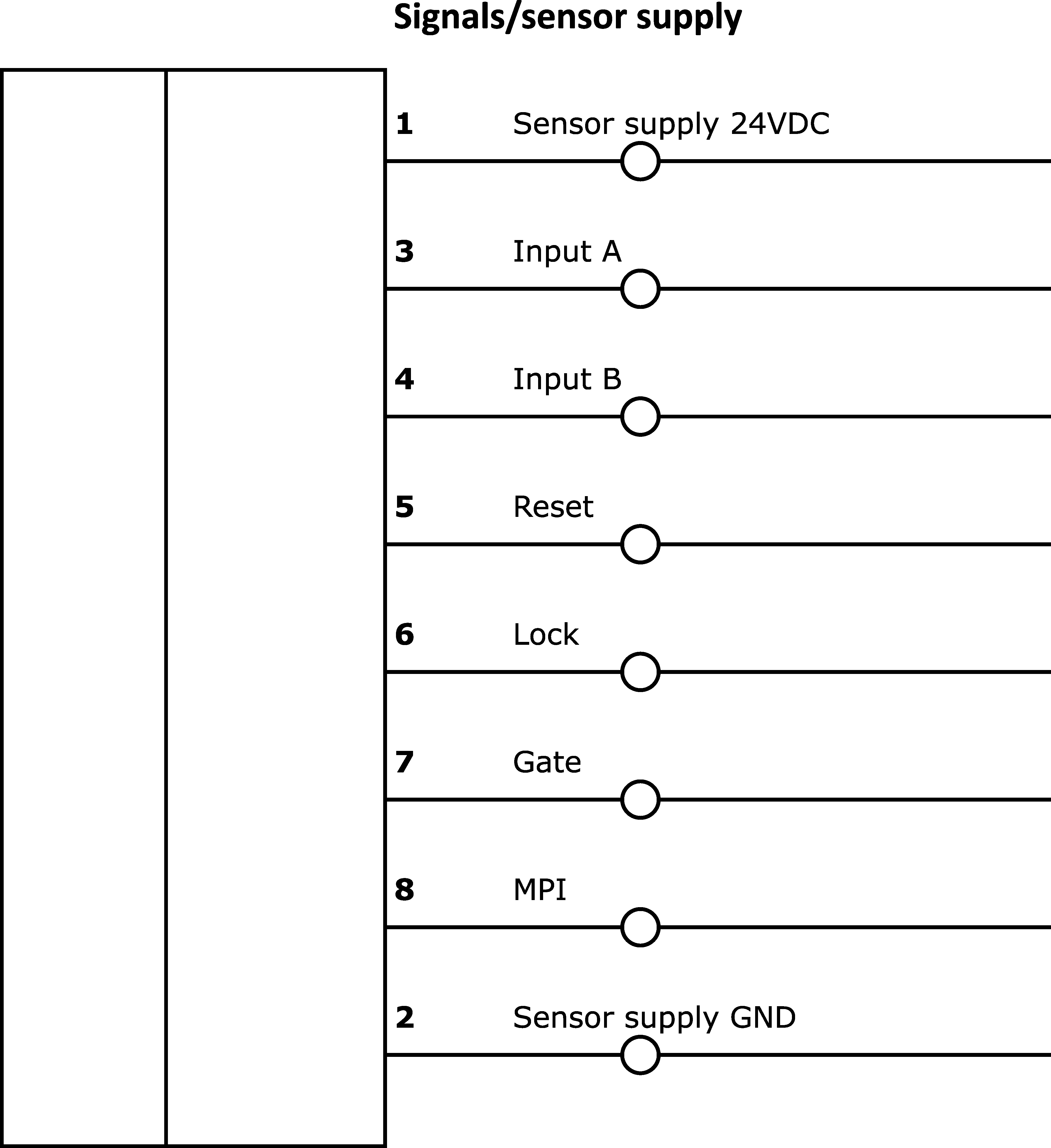

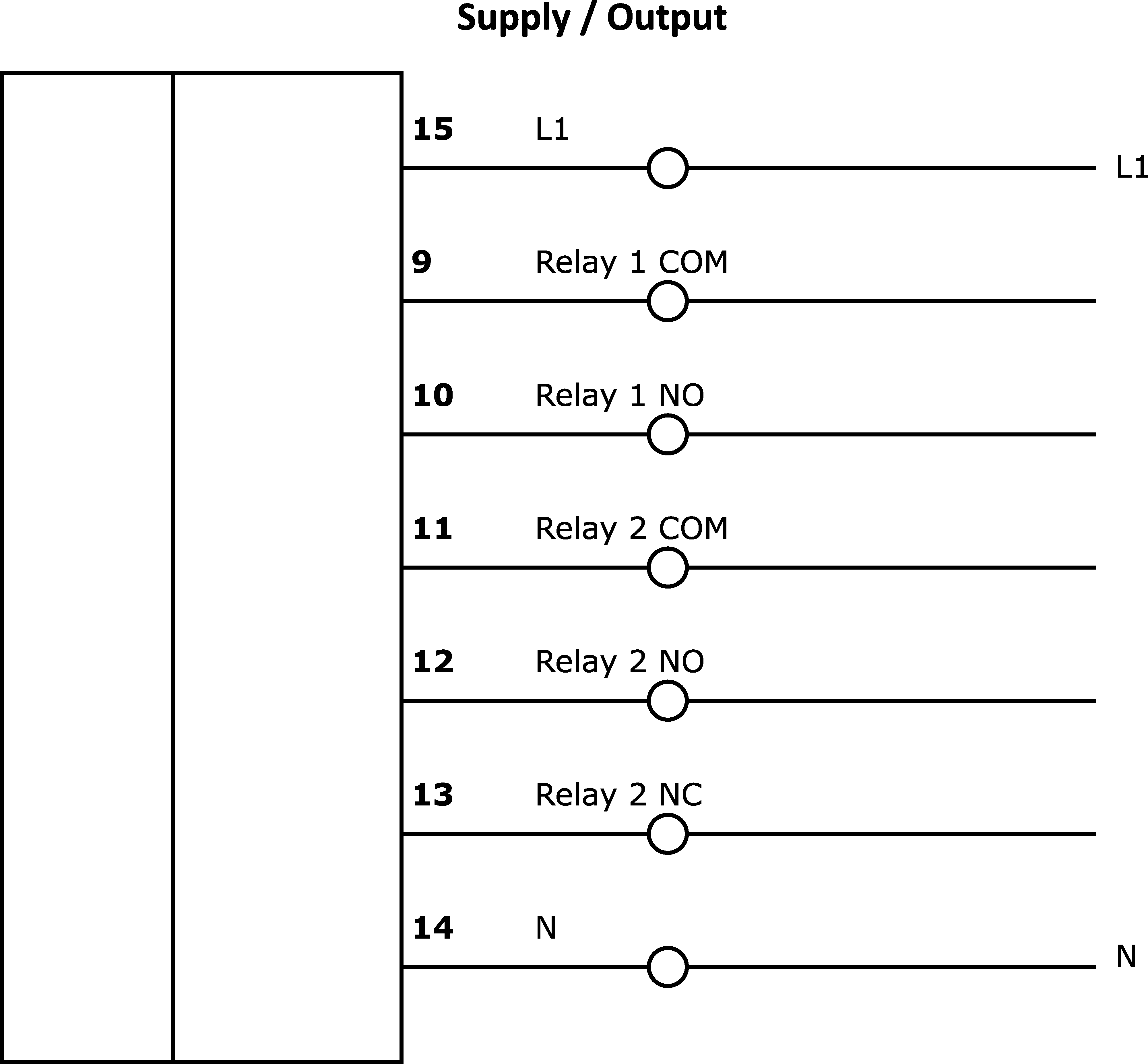

- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Type of signal input A
- PNP/NPN
- Type of signal input B
- PNP/NPN
- Rated switching current
- 3,000mA
- Transducer power supply voltage
- 24V
- Transducer power supply current
- 80mA
- Number of pins
- 13
- Switching capacity
- 30VA
- Switching voltage
- 250V
- Timed output
- 0.01 - 99.99s
- Counting frequency
- 30kHz
- Display
- LCD display (illuminated)
- Operating voltage
- Electrical connection
Mechanical properties
- Width
- 48mm
- Installation depth
- 101mm
- Height
- 48mm
- Length
- 108mm
- Storage temperature
- -25 - 75°C
- Mounting method
- Panel mounting
- Degree of protection (IP)
- IP65
- Housing material
- Plastic PC
- dimensions
Other properties
- Range of functions
- Relative air humidity (non-condensing)
- 93%
- Ambient temperature
- -20 - 65°C
- counting functions
- adding, subtracting
Assembly
Adapter for counter 04 to counter 03
DIN rail adapter for CM03
Mounting frame CI/CM/CZ03
Datasheets
Manuals
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27200414 |
| eClass-7.1 | 27200414 |
| eClass-8.0 | 27200414 |
| eClass-9.0 | 27200414 |
| eClass-9.1 | 27200414 |
| ETIM-6.0 | EC002300 |
| ETIM-7.0 | EC002300 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 500 counters |
| packaging dimensions | 90 x 50 x 160mm |
| gross weight | 199g |
| 2,85kg CO₂e | |
| Customs tariff number | 90291000 |
| WEEE number | 40951076 |
