Pressure sensors - Pressure transmitter
DT98C744
| amount | price | discount |
|---|---|---|
| 1 | 240,30 € | – |
| 5 | 233,09 € | 3% / 7,21 € |
| 10 | 228,29 € | 5% / 12,02 € |
| 20 | 221,08 € | 8% / 19,22 € |
| 50 | 211,46 € | 12% / 28,84 € |
On demand

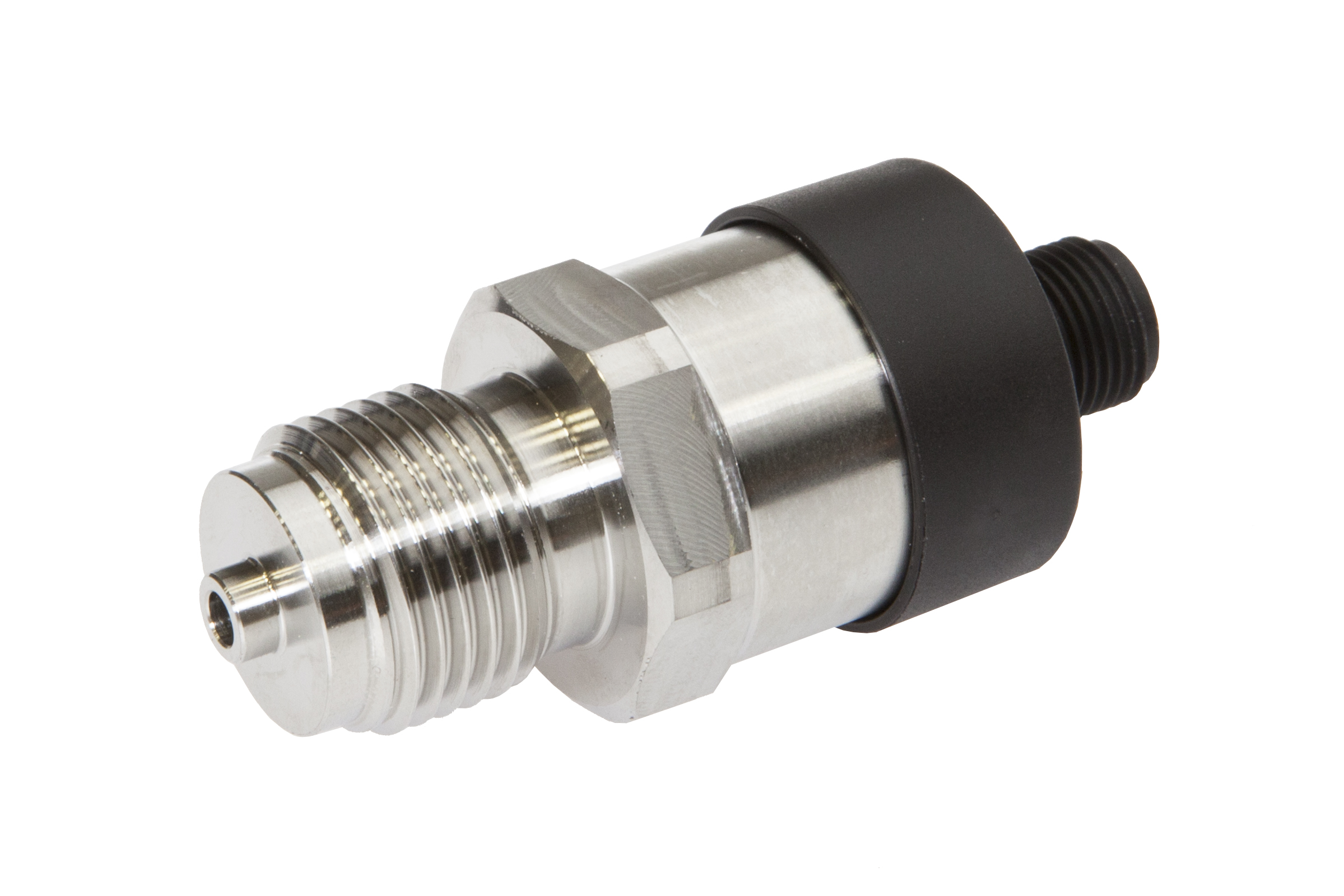

pressure transmitter, Ø29mm 53long, 0-10bar, 8-30V DC, G1/2 inch B, 4-20mA, Plug-in connection M12 2pin, IP67, V4A
Compare
Pressure sensors - Pressure transmitter
Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications.
Electrical properties
- Response/decay time
- 4ms
- Type of analog output
- 4 - 20mA
- Type of electrical connection
- Connector M12
- Short-circuit protection
- Yes
- Measuring range pressure
- 0 - 10bar
- Measurement method
- Relative
- Number of pins
- 2
- Relative linearity deviation
- 0.5%
- Relative repeat accuracy
- 0.1%
- Temperature drift over entire measuring range
- 1%
- Operating voltage (DC)
- 8 - 30V
Mechanical properties
- Type of process connection
- G1/2 inch B
- Design
- Cylinder plain
- Bursting pressure
- 40bar
- Thread length
- 14mm
- Thread pitch
- 1.81mm
- Length
- 53mm
- Max. operating pressure
- 20bar
- Medium temperature
- 0 - 80°C
- Nominal pressure
- 10bar
- Degree of protection (IP)
- IP67
- Housing material
- Stainless steel 1.4404
- Sensing element material
- Stainless steel 1.4404
- Diameter
- 29mm
- For liquid media
- Yes
Other properties
- Measuring display
- Relative
- Relative measurement accuracy
- 0.3%
- Ambient temperature
- 80°C
- Suitable media
- Gases
- For hydraulic applications
- Yes
- For pneumatic applications
- Yes
You can find accessories for DT98C744
in these product groups:
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Adapter M12 socket 3-pin / M8 connector 3-pin
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27200614 |
| eClass-7.1 | 27200614 |
| eClass-8.0 | 27200614 |
| eClass-9.0 | 27200614 |
| eClass-9.1 | 27200614 |
| ETIM-6.0 | EC011478 |
| ETIM-7.0 | EC011478 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 361 pressure sensors (diverse) |
| packaging dimensions | 43 x 43 x 105mm |
| gross weight | 130g |
| Customs tariff number | 90262020 |
| WEEE number | 40951076 |
