Individual data sheet
PDF-file, 669 KB
LED lights - Floodlights
EH554100
| amount | price | discount |
|---|---|---|
| 1 | 130,80 € | – |
| 5 | 126,88 € | 3% / 3,92 € |
| 10 | 124,26 € | 5% / 6,54 € |
| 20 | 120,34 € | 8% / 10,46 € |
| 50 | 115,10 € | 12% / 15,70 € |
Scarce

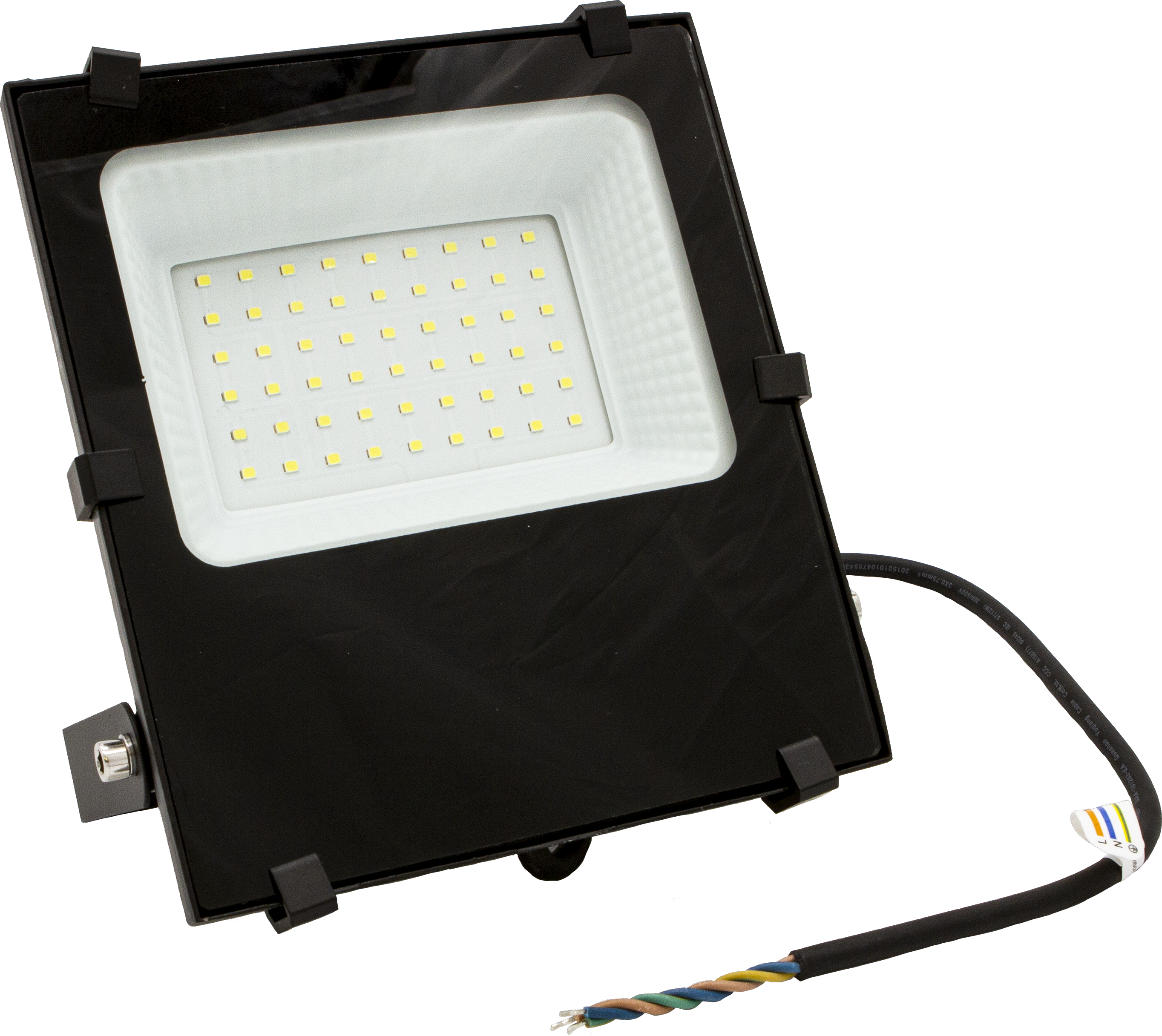

LED floodlight, 50x227x189mm, white light, 30W, 3700lx, 6000K, 220-240V AC, cable tail 0.5m rubber, IP65, aluminum+safety glass
Compare
LED lights - Floodlights
The dimmable LED floodlights are a simple alternative to halogen floodlights. They are ten times more effective than halogen floodlights.The housing made of powder-coated aluminum is highly corrosion-resistant and a sturdy strap ensures secure mounting on the wall or ceiling.High-quality LEDs on an aluminum core board ensure optimum heat dissipation.The high degree of protection makes them ideal for use in industrial areas.
Electrical properties
- Type of electrical connection
- Cable
- Power
- 30W
- Luminous flux
- 4,000lm
- Protection class
- I
- Luminous efficiency
- 135lm/W
- Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Design
- Cuboid
- Width
- 189mm
- Light field width
- 98mm
- Height
- 50mm
- Cable length
- 0.5m
- Length
- 227mm
- Light field length
- 136mm
- Degree of protection (IP)
- IP65
- Front screen scattering behavior
- clear
- Housing material
- Aluminum
- Material of cable sheath
- Plastic (rubber)
- Front screen material
- Safety glass
- dimensions
Optical properties
- Risk group
- 0
- Number of LEDs
- 54
- Illuminance at 500mm distance
- 3,700lx
- Illumination in the center (distance 1 m)
- 1,000lx
- Color temperature
- 6,000K
- Lamp
- LED
- Light source
- White light
- Angle of beam spread
- 120°
Other properties
- Ambient temperature
- -20 - 40°C
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 327 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 405 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27110309 |
| eClass-7.1 | 27110309 |
| eClass-8.0 | 27110309 |
| eClass-9.0 | 27110309 |
| eClass-9.1 | 27110309 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 191 building lighting |
| packaging dimensions | 207 x 62 x 261mm |
| gross weight | 979g |
| 12,18kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
