EMD00124
| amount | price | discount |
|---|---|---|
| 1 | 241,00 € | – |
| 5 | 233,77 € | 3% / 7,23 € |
| 10 | 228,95 € | 5% / 12,05 € |
| 20 | 221,72 € | 8% / 19,28 € |
| 50 | 212,08 € | 12% / 28,92 € |

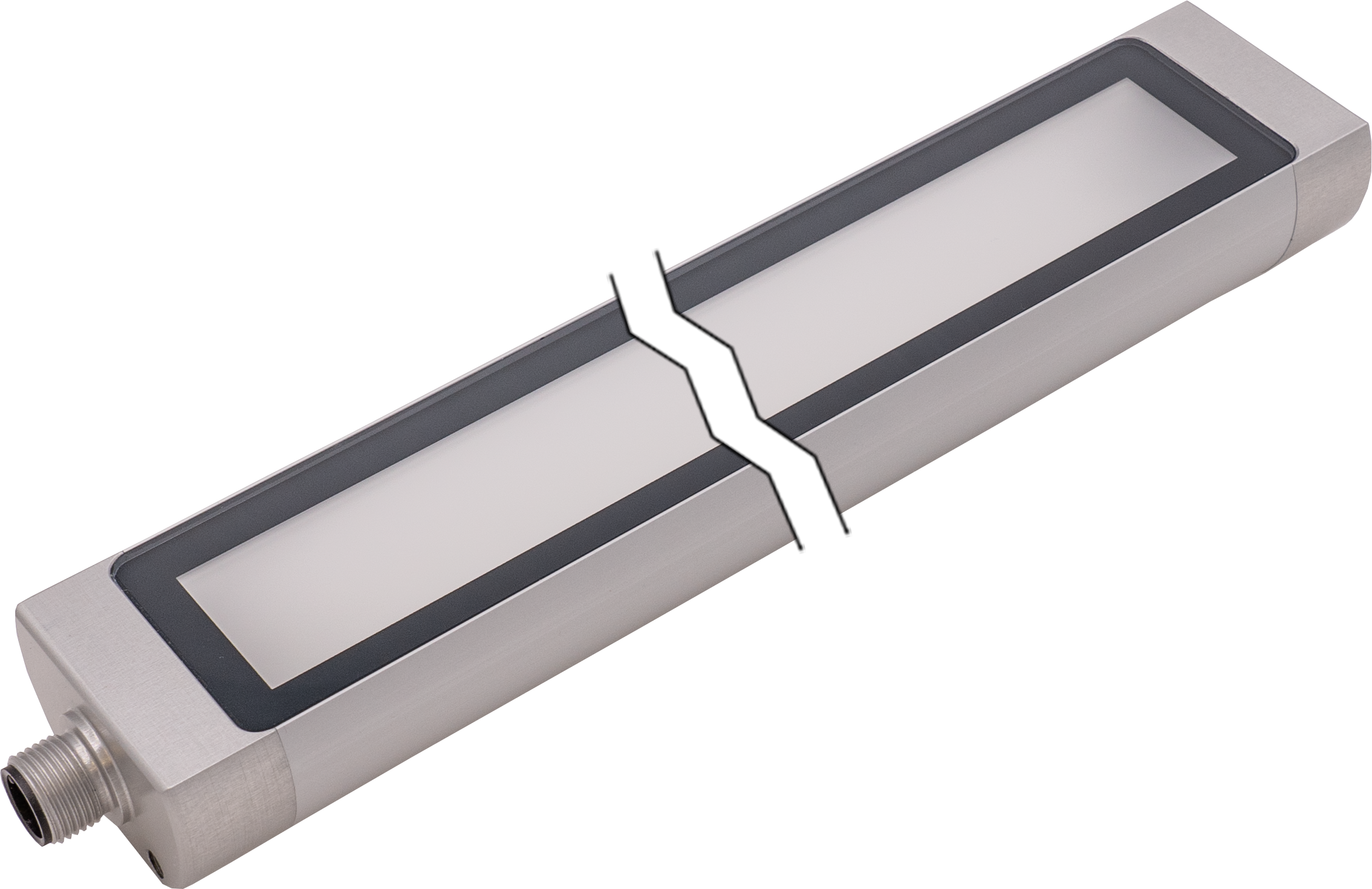

LED lights - Machine and bench lights
The lights are characterized by high quality features. These ensure high performance and a long service life. Other advantages include the robust materials and high durability against thermal and mechanical loads. The IP67 degree of protection ensures high resistance in demanding environments. The lights up withstand the most common coolants and lubricants. The diffuser ensures homogeneous and glare-free light that is 100 % flicker-free and thus contributes to fatigue-free lighting conditions.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 1,333mA
- Power
- 32W
- Luminous flux
- 4,800lm
- Number of pins
- 5
- Protection class
- III
- Luminous efficiency
- 150lm/W
- Operating voltage
- Electrical connection
Mechanical properties
- Design
- Pipe
- Length
- 715mm
- Degree of protection (IP)
- IP67
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Float glass tempered
- Diameter
- 40mm

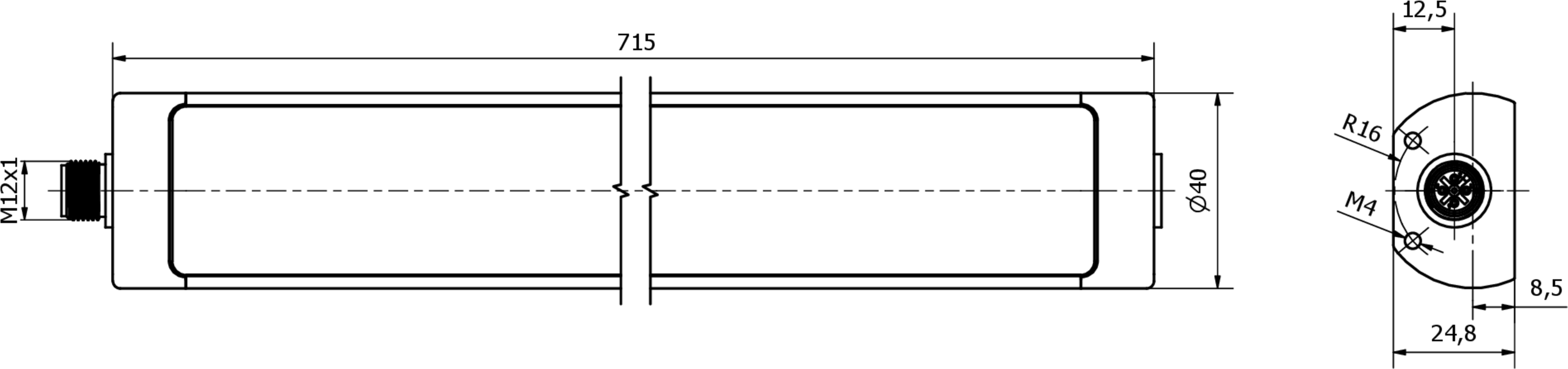

- dimensions
Optical properties
- Risk group
- 0
- Illumination in the center (distance 1 m)
- 1,350lx
- Color temperature
- 5,000K
- Light source
- White light
- Angle of beam spread
- 100°
Other properties
- Ambient temperature
- -20 - 40°C
- Harsh environmental conditions
- Yes
Assembly
Fixing material for lights Ø40
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Other sensors
Power supply 24V DC / 2 – 10A
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 80 x 65 x 825mm |
| gross weight | 943g |
| 7,19kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
