LED lights - Machine and bench lights

EMD00125

EMD00125
List price
297,00 €
amount price discount
1 297,00 €
5 288,09 € 3% / 8,91 €
10 282,15 € 5% / 14,85 €
20 273,24 € 8% / 23,76 €
50 261,36 € 12% / 35,64 €
On demand

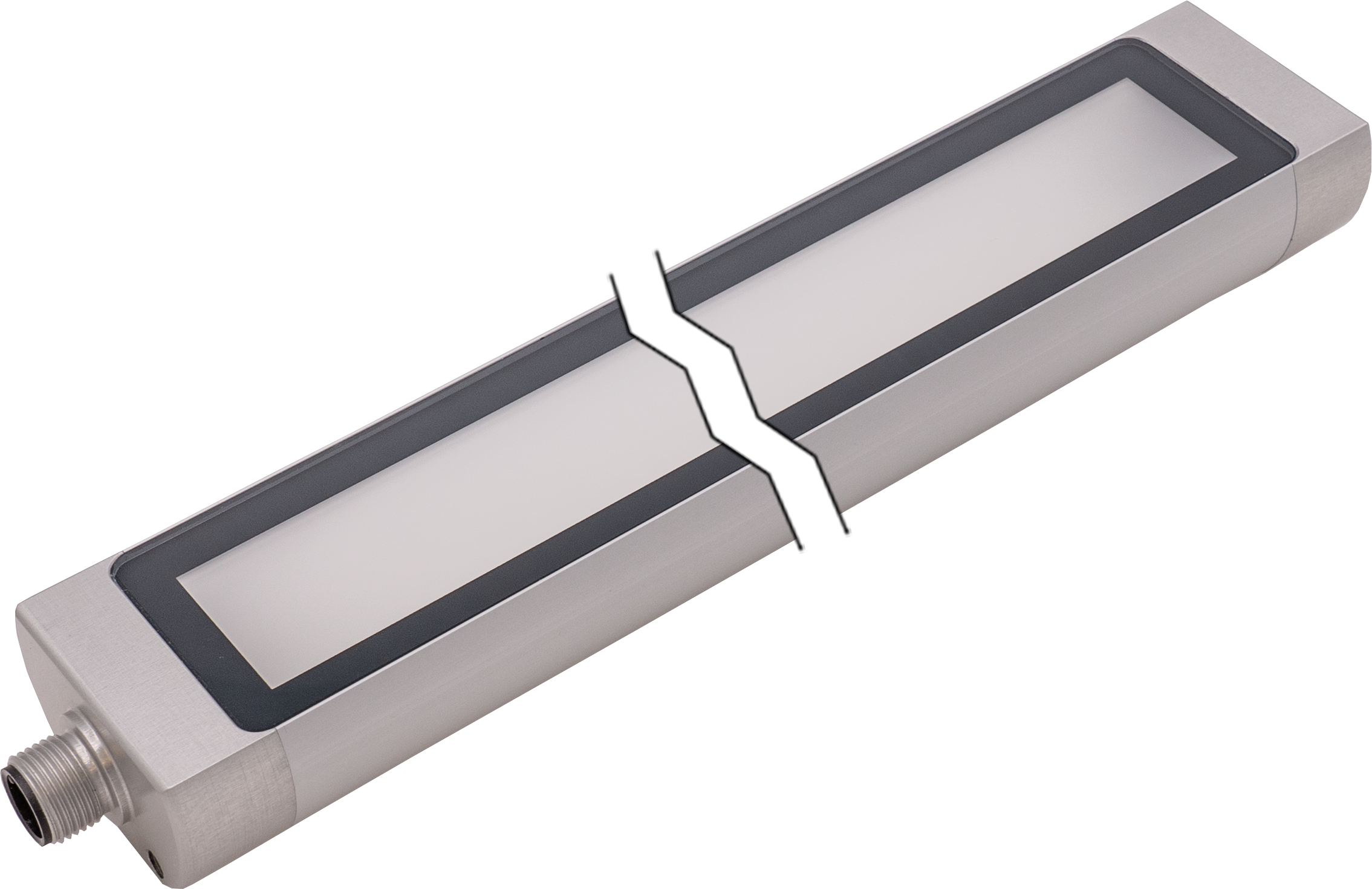

LED Machine Light, Ø40 mm, 1040 mm long, white light, 48 W, 7200 lm, 5000 K, 22–28 VDC, 5-pin M12-connector, IP67, aluminum + tempered float glass
Compare

LED lights - Machine and bench lights

The lights are characterized by high-quality features that ensure high performance and durability. Additional advantages include the robust materials and high durability against thermal and mechanical stress. The IP67 degree of protection ensures high resilience in demanding environments. The lights have durability against the most common coolants and lubricants. The diffuser provides uniform, glare-free light that is 100% flicker-free, thereby contributing to lighting conditions that reduce eye strain.

Electrical properties

Type of electrical connection
Connector M12
Rated operating current
2,000mA
Power
48W
Luminous flux
7,200lm
Number of pins
5
Protection class
III
Luminous efficiency
150lm/W
Operating voltage
Electrical connection

mechanical properties

Design
Pipe
Length
1,040mm
Degree of protection (IP)
IP67
Front screen scattering behavior
diffuse
Housing material
aluminum
Front screen material
Float glass tempered
Diameter
40mm

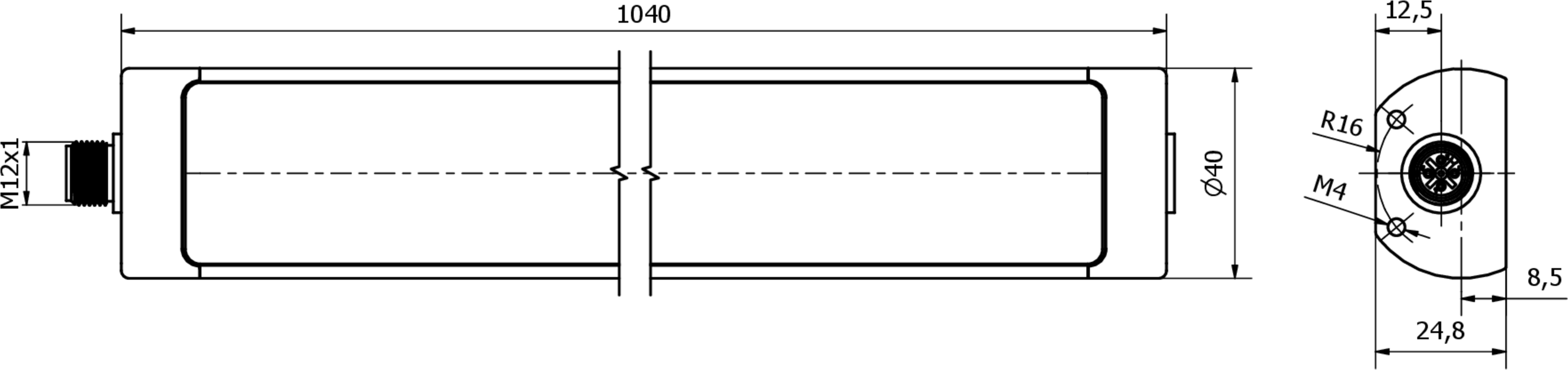

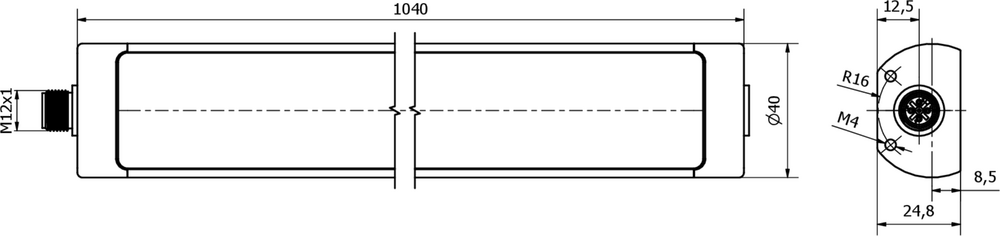

dimensions

optical properties

Risk group
0
Illumination in the center (distance 1 m)
2,000lx
Color temperature
5,000K
Light source
White light
Angle of beam spread
100°

other properties

Ambient temperature
-20 - 40°C
Harsh environmental conditions
Yes
You can find accessories for EMD00125 in these product groups:

Assembly

Fixing material for lights Ø40

Connection technology

Adapter M12 socket 3-pin / M8 connector 3-pin

Cable sockets M12 3-wire

Cable sockets M12 4-pin field attachable

Cable sockets M12 5-pin field attachable

Other sensors

Power supply 24V DC / 2 – 10A

Classification Class
eClass-7.0 27110390
eClass-7.1 27110390
eClass-8.0 27110390
eClass-9.0 27110345
eClass-9.1 27110345
ETIM-6.0 EC000348
ETIM-7.0 EC000348
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 190 machine illuminations
packaging dimensions 85 x 65 x 1,123mm
gross weight 1,360g
Carbon footprint 10,38kg CO₂e
customs tariff number 94054239
WEEE number 40951076
