camera additional lighting - Spotlights
ES350120
Scarce
LED Spotlight, camera, Ø35mm 74long, White light, 4.8W, 6000K, 19-30V DC, Connector M12 4pin, IP64, Aluminum+Acrylic glass, Screw-on plate
Compare
camera additional lighting - Spotlights
For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 200mA
- Flash controller
- internal
- Power
- 4.8W
- Number of pins
- 4
- Protection class
- III
- Operating voltage (DC)
- 19 - 30V
- Integrated flash controller for external illumination
- Yes
Mechanical properties
- Length
- 74mm
- Degree of protection (IP)
- IP64
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polymethyl methacrylate
- Diameter
- 35mm
- With C-mount thread
- Yes
Optical properties
- Number of LEDs
- 1
- Color temperature
- 6,100K
- Lamp
- LED
- Light source
- White light
- Angle of beam spread
- 26°
Other properties
- Risk group
- 2
- Ambient temperature
- 5 - 45°C
- Operational mode
- Permanent operation, Switching operation
- Changeable fronts
- Yes
- spotlight
You can find accessories for ES350120
in these product groups:
Cable sockets M12 5-pin field attachable
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Fixing material ES35/36
On demand
On demand
On demand
Datasheets
Drawings
-
jpgBlueprintJPG-file, 152 KB
-
dwg2DDWG-file, 291 KB
-
stp3DSTP-file, 142 KB
-

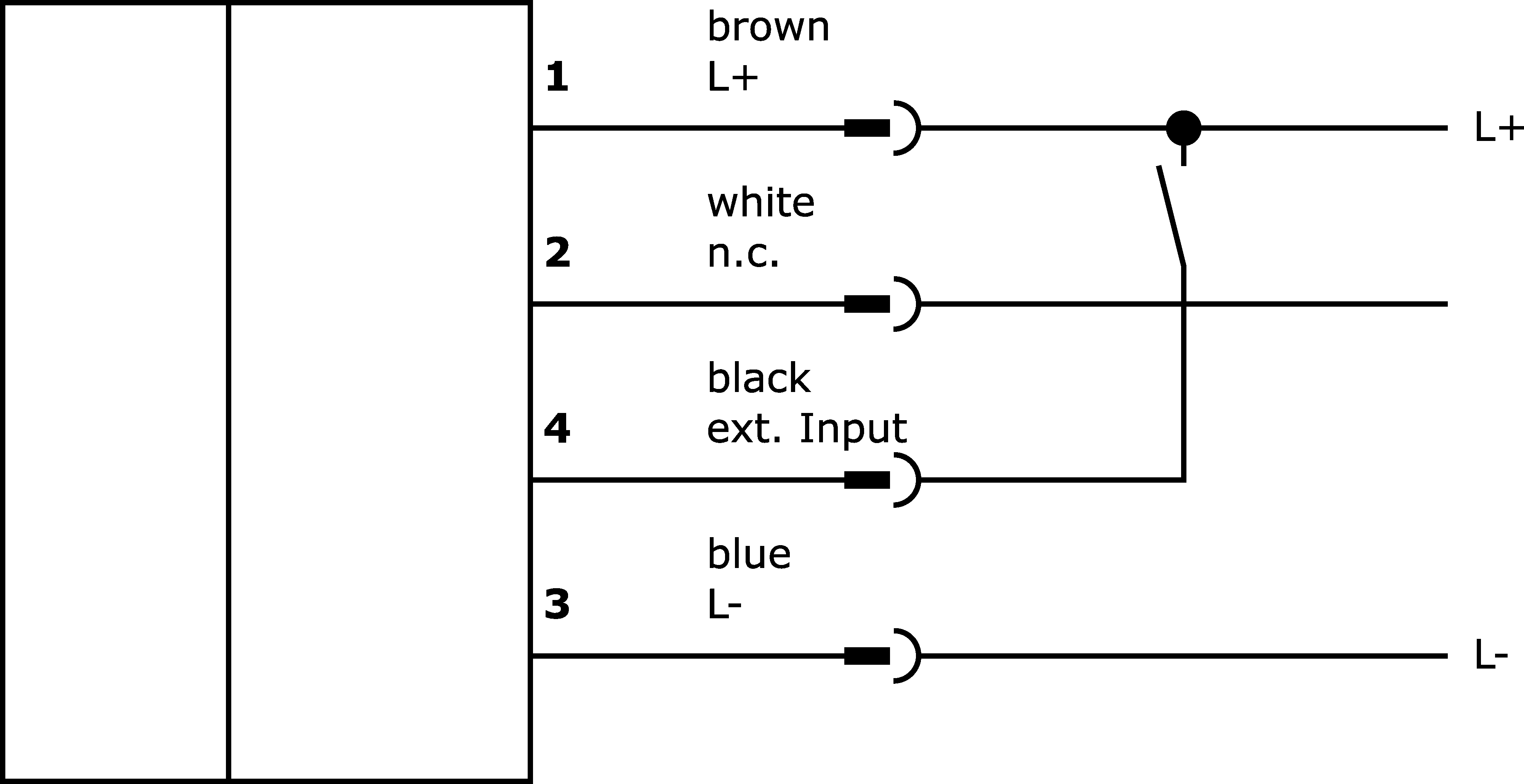

pngWiring diagram - internetPNG-file, 6.5 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27310204 |
| eClass-7.1 | 27310204 |
| eClass-8.0 | 27310204 |
| eClass-9.0 | 27310204 |
| eClass-9.1 | 27310204 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 915 camera illumination |
| packaging dimensions | 105 x 65 x 155mm |
| gross weight | 189g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
