| amount | price | discount |
|---|---|---|
| 1 | 129,70 € | – |
| 5 | 125,81 € | 3% / 3,89 € |
| 10 | 123,22 € | 5% / 6,49 € |
| 20 | 119,32 € | 8% / 10,38 € |
| 50 | 114,14 € | 12% / 15,56 € |

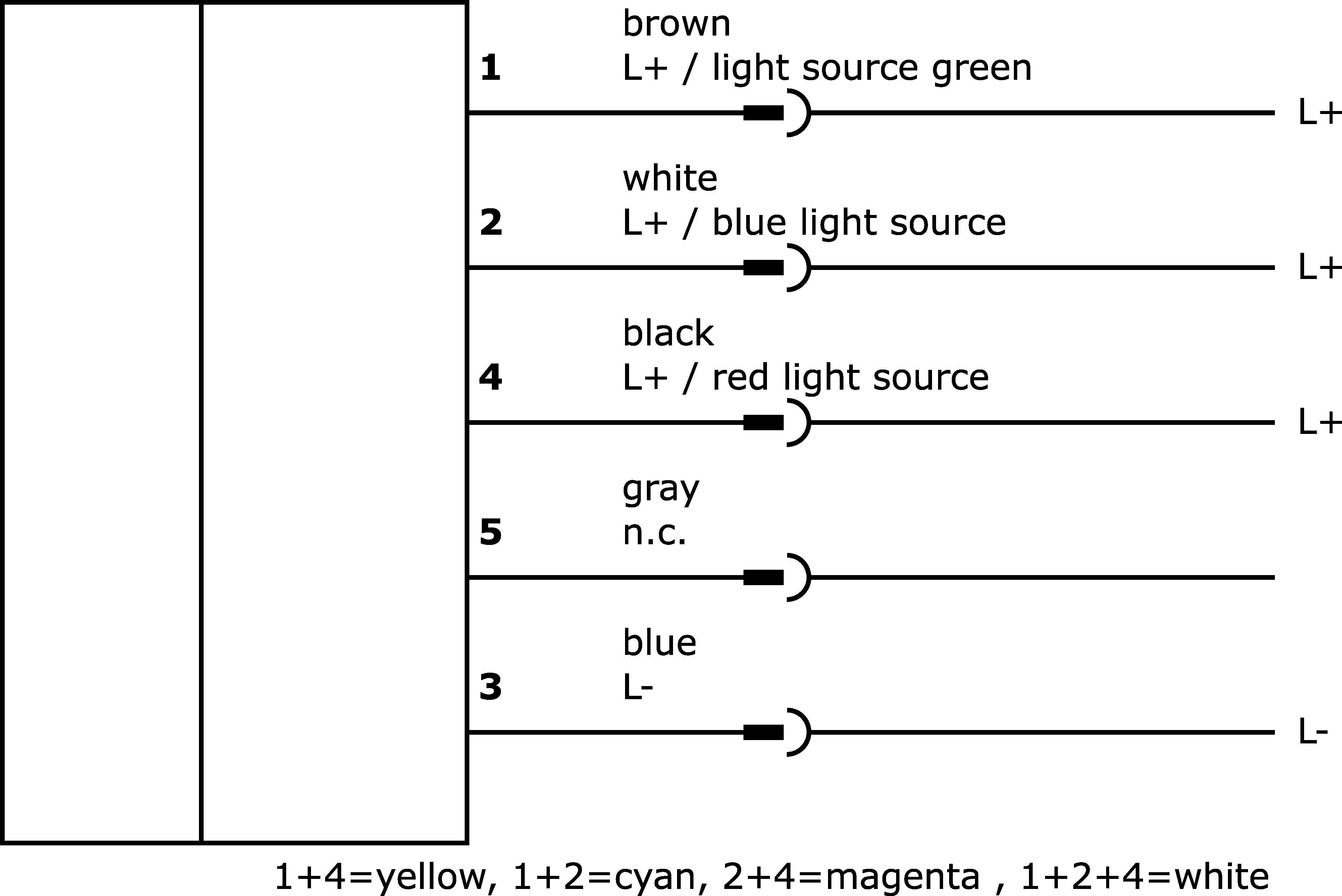

The luminaire series makes it possible to signal the different statuses of machines and systems using color changes. The colored light ensures that it is clearly visible and attracts attention in safety areas. Depending on the control and desired signal effect, all color tones of the RGB color space can be generated. The colors red, green and blue can be controlled via the individual connection pins of the light up. Mixed colors are generated by simultaneously controlling several connection PINs. White is also possible as a mixed color.
An opal, shatterproof and splinter-free polycarbonate coverage protects the LED technology from dust and splash water. The LED signal light has an IP54 degree of protection so that it can be used in the vicinity of machines and systems. This means that the light can also be used as a machine light in almost any operating range without chip bombardment or cooling lubricant. Using the holders supplied, the light can be installed in a fixed or adjustable inclination angle.
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 80 x 80 x 410mm |
| gross weight | 341g |
| 0,12kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
