Filling level sensors - guided microwave
FM910023
| amount | price | discount |
|---|---|---|
| 1 | 528,40 € | – |
| 5 | 512,55 € | 3% / 15,85 € |
| 10 | 501,98 € | 5% / 26,42 € |
| 20 | 486,13 € | 8% / 42,27 € |
| 50 | 464,99 € | 12% / 63,41 € |
On demand
Filling level sensor, microwave, 3/4" 425long, G3/4", 20-27V DC, programmable/configurable, 4-20mA, M12 plug connector 4-pin, aluminum+stainless steel 1.4571, IP67, probe 2x Ø4mm 300long, parameterization
including Sealing ring
Compare
Filling level sensors - guided microwave
There are filling level and level sensors that work according to different measuring principles. The choice of sensor depends on the medium to be detected and the environmental conditions. The material flow in a vibrating bowl can be inquired excellently with inductive level sensors whose pendulum is moved by the material in the bowl. Filling levels of liquid or solid media can be detected using capacitive filling level sensors, for example. These work according to the capacitor principle; the medium changes the dielectricity between two electrodes. The resulting change is converted into a digital output signal. Conductive filling level relays offer another alternative for detecting the filling level of conductive media. The resistance between the reference and meter electrode is determined. If the level falls below or overruns a set threshold, a relay output switches.
Electrical properties
- Type of analog output
- 4 - 20mA
- Type of electrical connection
- Connector M12
- Setting procedure
- Parameterization
- Load resistance (current output)
- 500kOhm
- No-load current
- 45mA
- Number of pins
- 4
- Voltage drop
- 2V
- Measurement principle
- Microwave
- Output functions
- Scaling
- Display
- LED display
- Relative permittivity (εr) of the medium ≥
- 2.3
- Short circuit protection, Reverse polarity protection
- Operating voltage

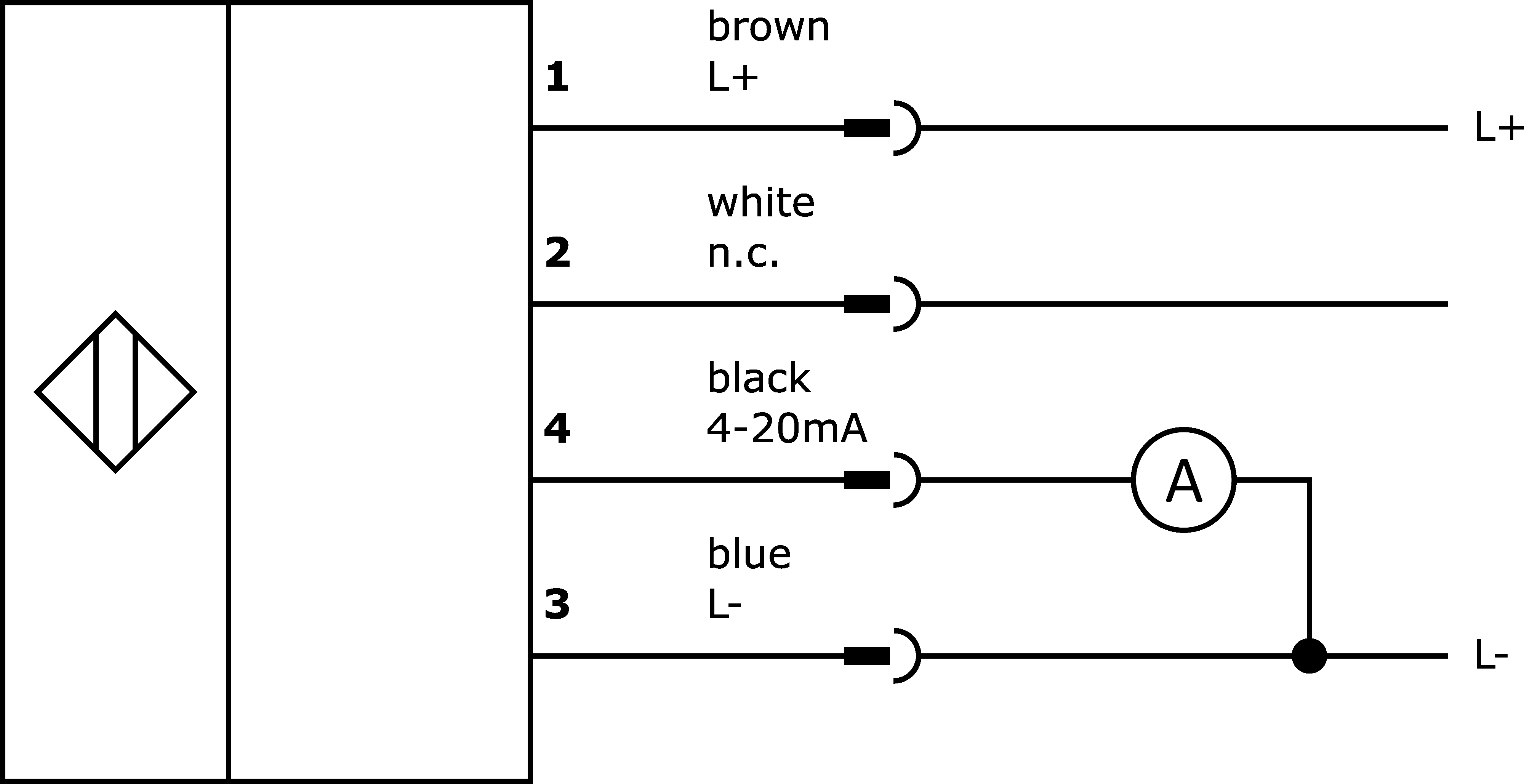

- Electrical connection
Mechanical properties
- Type of process connection
- G3/4 inch
- Design
- Round
- Pressure resistance
- 10bar
- Probe diameter
- 4mm
- Thread length
- 12mm
- Length
- 425mm
- Probe length
- 300mm
- Medium temperature
- 0 - 80°C
- Wrench size
- 32mm
- Degree of protection (IP)
- IP67
- Housing material
- Aluminum
- Sensing element material
- Stainless steel 1.4571
- Seal material at process connection
- Plastic (NBR), AFM 34
- Stainless steel 1.4571, Plastic (PTFE), Plastic (POM)
- dimensions
Other properties
- Ambient temperature
- 0 - 70°C
- Version
- parallel
You can find accessories for FM910023
in these product groups:
Assembly
Mounting accessories for lights 64x80
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire shielded
Cable sockets M12 5-pin field attachable
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27371813 |
| eClass-7.1 | 27371813 |
| eClass-8.0 | 27371813 |
| eClass-9.0 | 27371813 |
| eClass-9.1 | 27371813 |
| ETIM-6.0 | EC001447 |
| ETIM-7.0 | EC001447 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 350 filling level sensors (capacitive/conductive) |
| packaging dimensions | 100 x 80 x 700mm |
| gross weight | 769g |
| 3,39kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
