| amount | price | discount |
|---|---|---|
| 1 | 62,90 € | – |
| 5 | 61,01 € | 3% / 1,89 € |
| 10 | 59,76 € | 5% / 3,15 € |
| 20 | 57,87 € | 8% / 5,03 € |
| 50 | 55,35 € | 12% / 7,55 € |

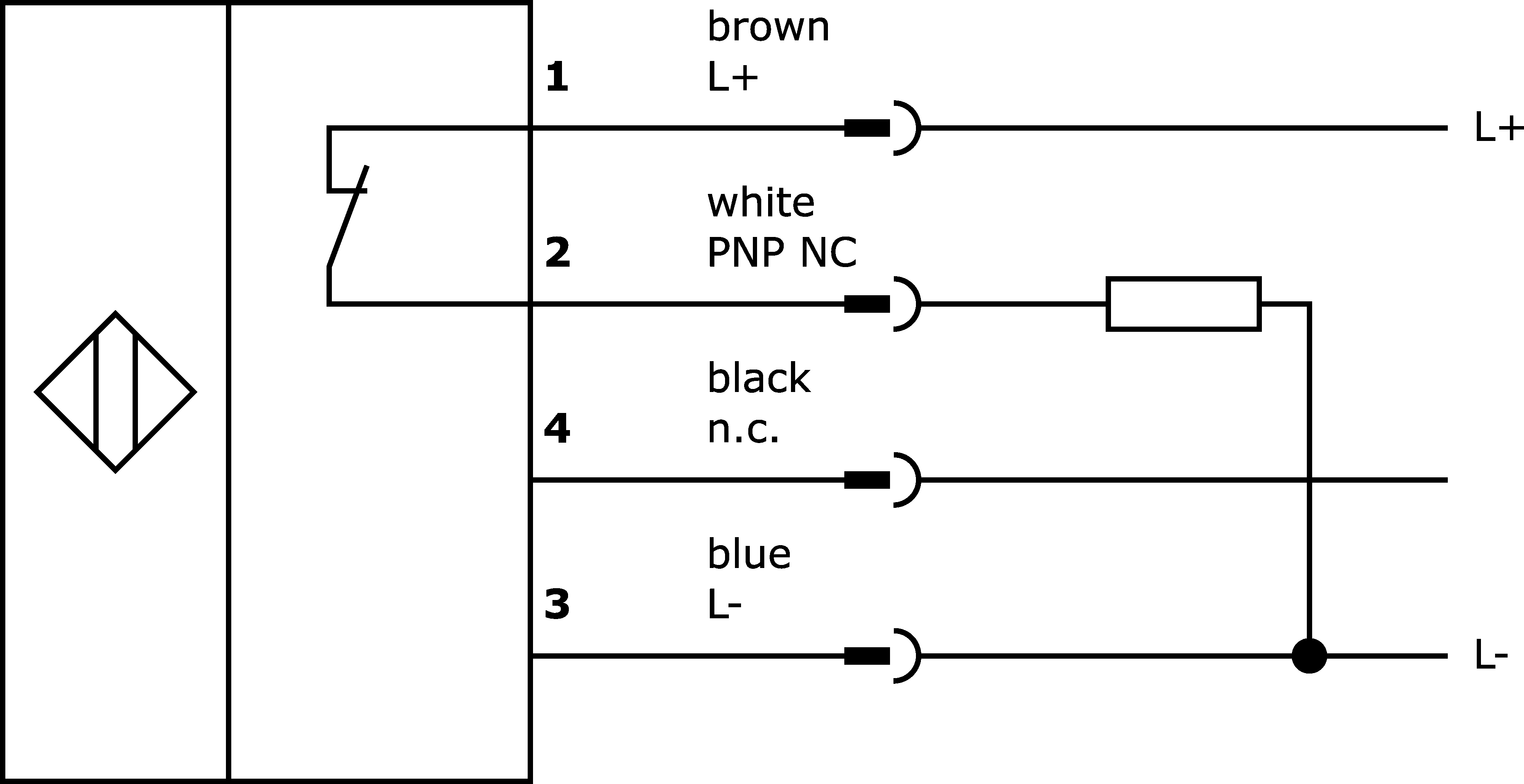

The IB080221 inductive sensor is manufactured in accordance with EN 60947-5-2 and is suitable for standard applications. It recognizes conductive metals at short distances and is insensitive to other materials, making it ideal for use in soiling and harsh environments. The sensor has a factory-set switching distance of 1.5mm, which is set in accordance with the standard using a measuring plate with a corresponding edge length. The cylindrical housing of the sensor is made of stainless steel 1.4305 and has an M8x1mm thread. The electrical connection is made via a 3-pin M12 plug connector.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 100 x 17 x 120mm |
| gross weight | 20g |
| 0,11kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
