| amount | price | discount |
|---|---|---|
| 1 | 56,80 € | – |
| 5 | 55,10 € | 3% / 1,70 € |
| 10 | 53,96 € | 5% / 2,84 € |
| 20 | 52,26 € | 8% / 4,54 € |
| 50 | 49,98 € | 12% / 6,82 € |
The IB121121 inductive sensor is specially designed for use in soiling and harsh environments. It recognizes conductive metals at short distances and is not affected by other materials. Manufactured according to EN 60947-5-2 standards, this sensor is suitable for all standard applications.
The switching distance of the sensor is set at the factory using a norm measuring plate whose edge length corresponds to the diameter of the sensor surface. In accordance with this standard, the IB121121 flush-mounted sensor achieves a switching distance of 3 mm.

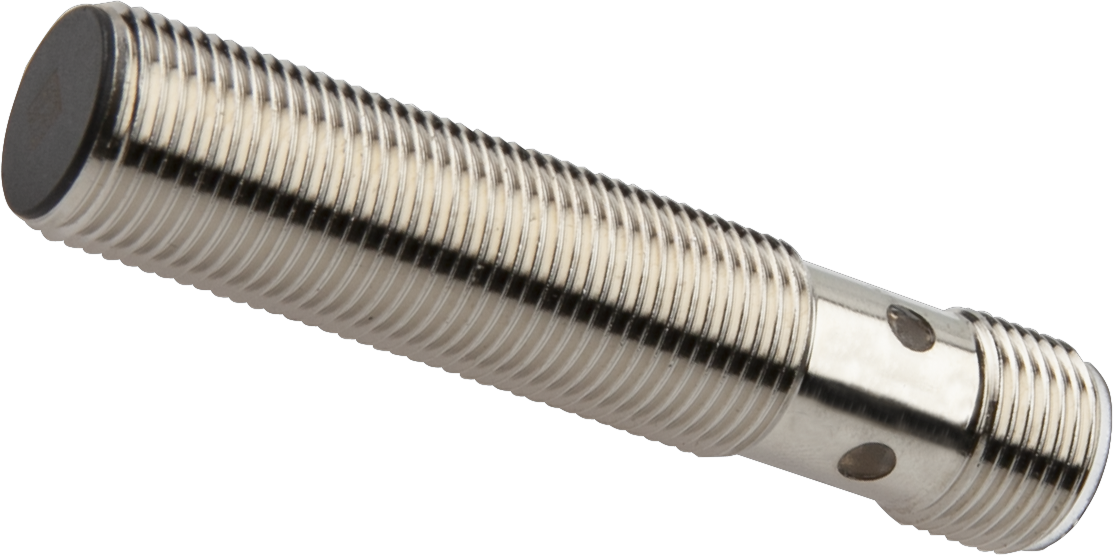

The housing of the sensor is cylindrical and made of brass. An M12x1mm thread is also cut into it. The electrical connection is made via a 3-pin M12 plug connector.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 100 x 17 x 120mm |
| gross weight | 25g |
| 0,17kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
