| amount | price | discount |
|---|---|---|
| 1 | 61,20 € | – |
| 5 | 59,36 € | 3% / 1,84 € |
| 10 | 58,14 € | 5% / 3,06 € |
| 20 | 56,30 € | 8% / 4,90 € |
| 50 | 53,86 € | 12% / 7,34 € |

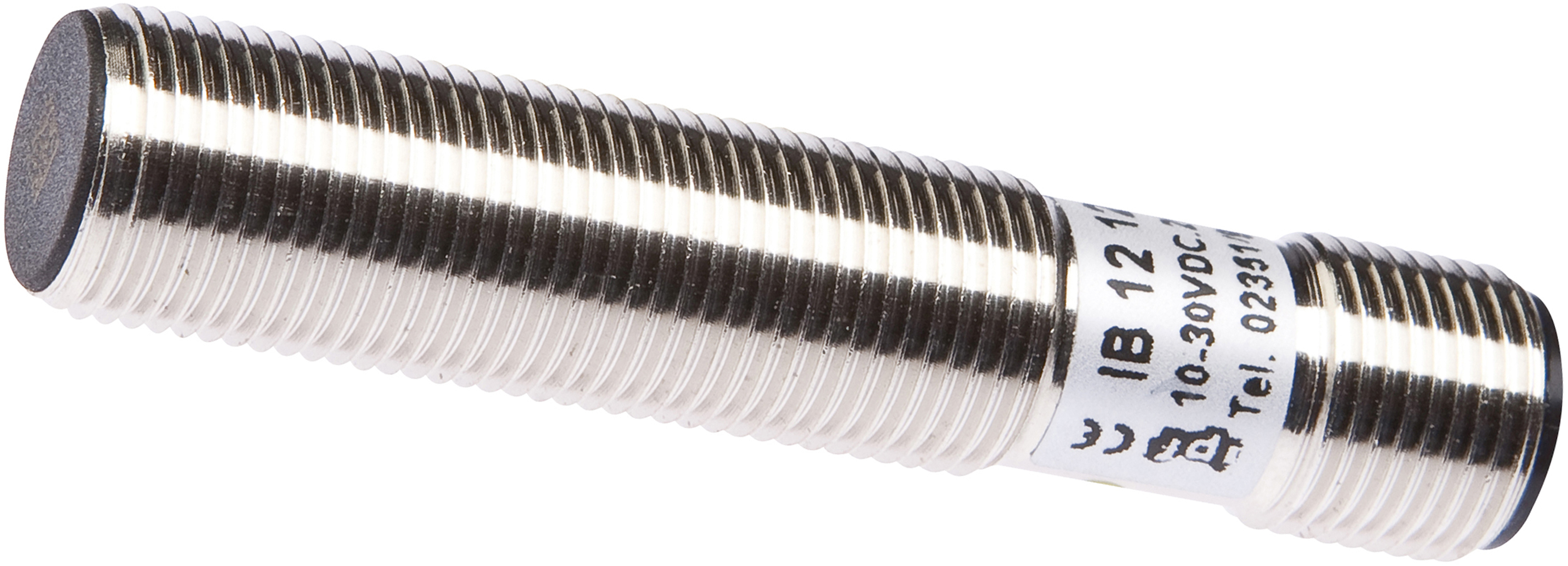

The IB121221 inductive sensor was manufactured in accordance with EN 60947-5-2 standards and is ideal for use in soiling and harsh environments. It recognizes conductive metals at short distances without being influenced by other materials. The switching distance of 3 mm is set at the factory using a norm measuring plate whose edge length corresponds to the diameter of the sensor surface. The sensor can be flush-mounted, has a brass housing with an M12x1mm thread and a 3-pin M12 connector for the electrical connection.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 100 x 20 x 120mm |
| gross weight | 25g |
| 0,17kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
