| amount | price | discount |
|---|---|---|
| 1 | 386,30 € | – |
| 5 | 374,71 € | 3% / 11,59 € |
| 10 | 366,99 € | 5% / 19,32 € |
| 20 | 355,40 € | 8% / 30,90 € |
| 50 | 339,94 € | 12% / 46,36 € |

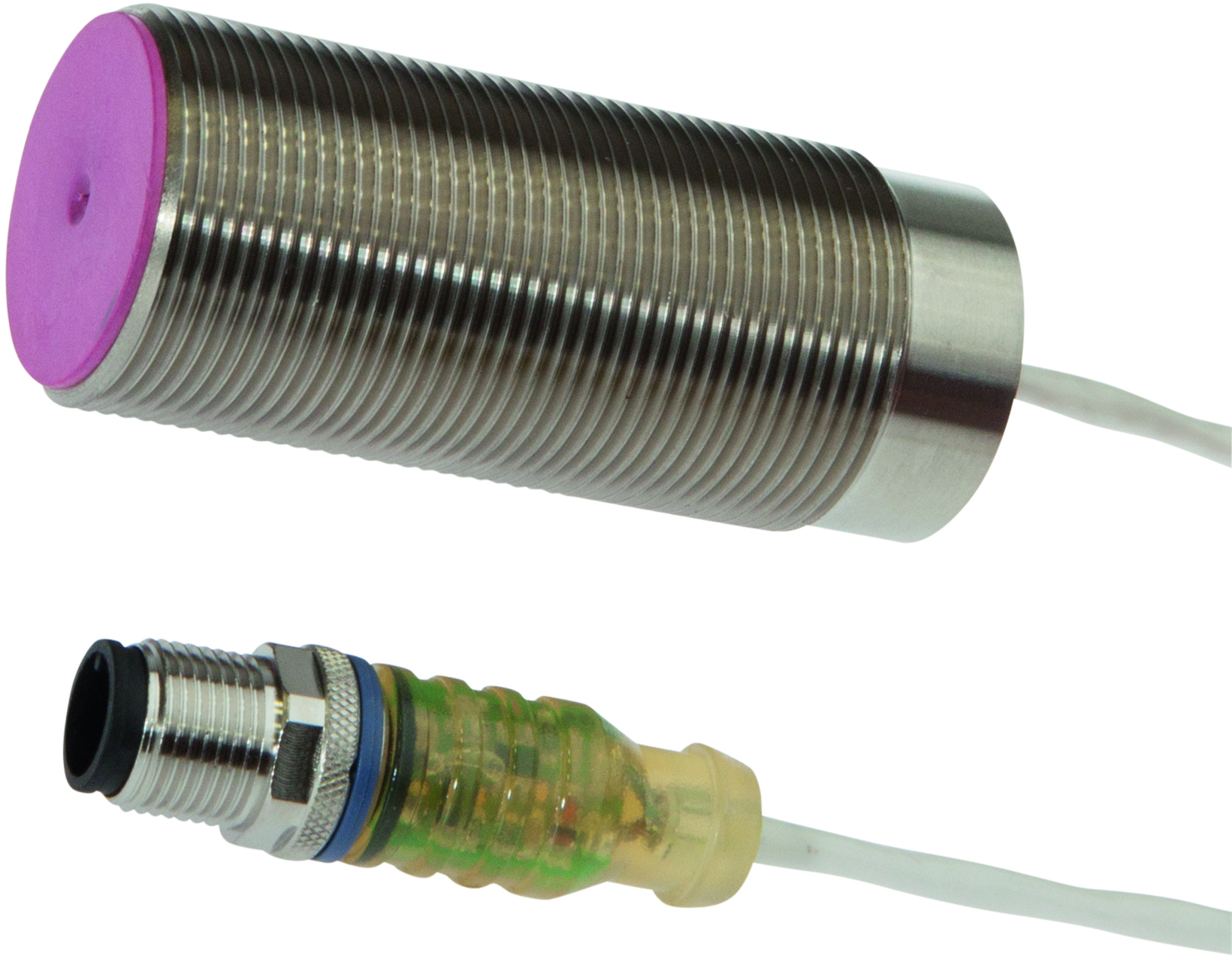

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 202 inductive sensors (high temperature) |
| packaging dimensions | 124 x 35 x 149mm |
| gross weight | 290g |
| 1,03kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
