AY000015
accessories sensor, Reduction sleeve, M30, Plastic
Available
Inductive sensors - Increased ambient temperature
IB30C148
| amount | price | discount |
|---|---|---|
| 1 | 326,10 € | – |
| 5 | 316,32 € | 3% / 9,78 € |
| 10 | 309,80 € | 5% / 16,31 € |
| 20 | 300,01 € | 8% / 26,09 € |
| 50 | 286,97 € | 12% / 39,13 € |
Available

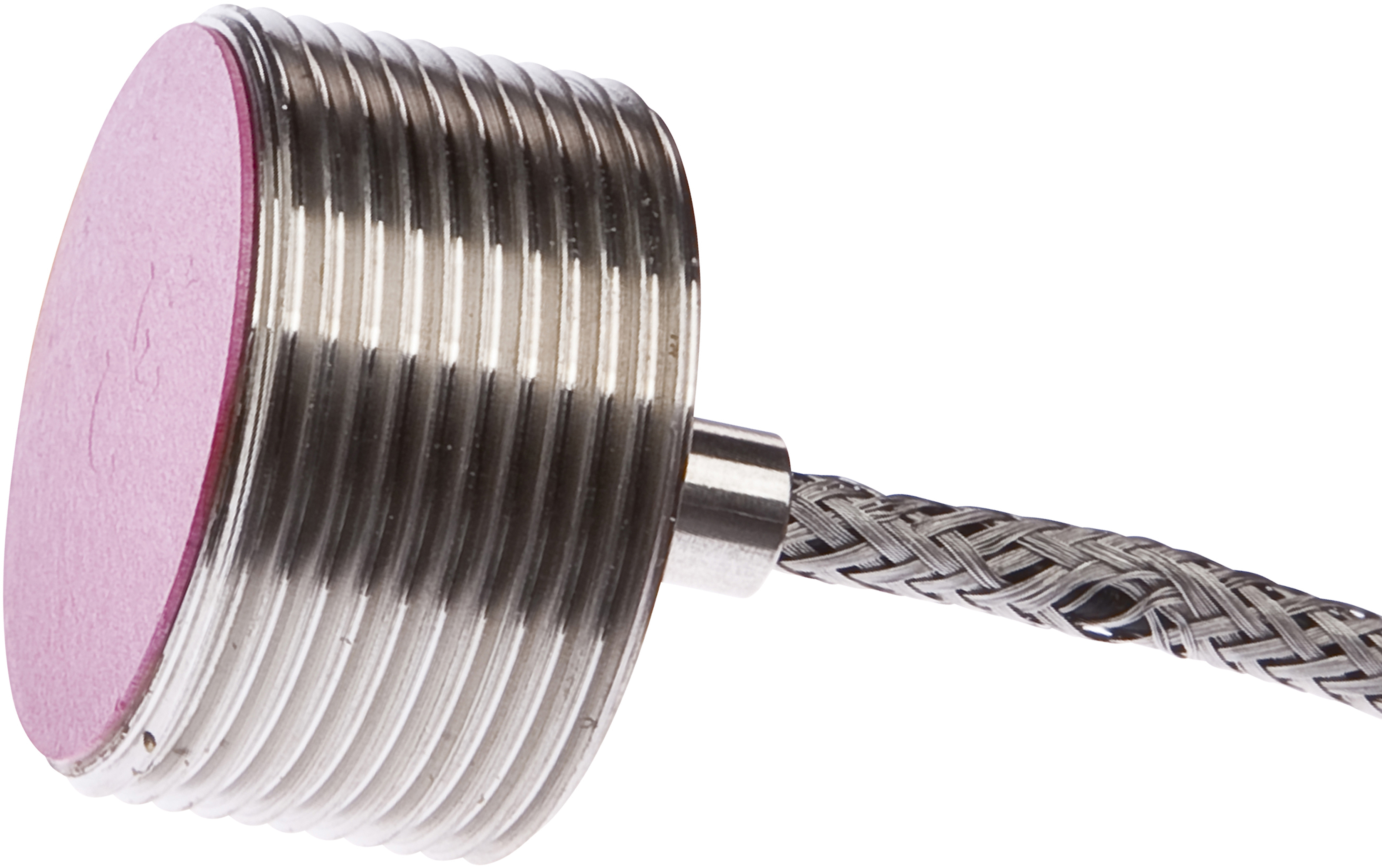

sensor inductive, M30x1.5 28long, Flush, Sn: 8, 10-35V DC, 0-140°C, PNP NO, Cable connector M12 10m PTFE with stainl. steel mesh, IP65, Stainless steel 1.4305
including Nut
Compare
Inductive sensors - Increased ambient temperature
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Cable connector M12
- Type of switching output
- PNP
- Rated switching current
- 150mA
- Relative hysteresis
- 15%
- No-load current
- 15mA
- Switching distance
- 8mm
- Switching frequency
- 200Hz
- Voltage drop
- 2V
- protection functions
- short circuit protection, reverse polarity protection
- Operating voltage
- Electrical connection
mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Thread length
- 18mm
- Thread pitch
- 1.5mm
- Cable length
- 10m
- Cable infeed
- axial
- Length
- 27.6mm
- Mechanical mounting condition for sensor
- flush
- Degree of protection (IP)
- IP50
- Active area material of sensor
- Plastic (Vectra®)
- Housing material
- stainless steel 1.4305
- material of cable sheath
- PTFE with stainl. steel mesh
- Thread dimension
- M30

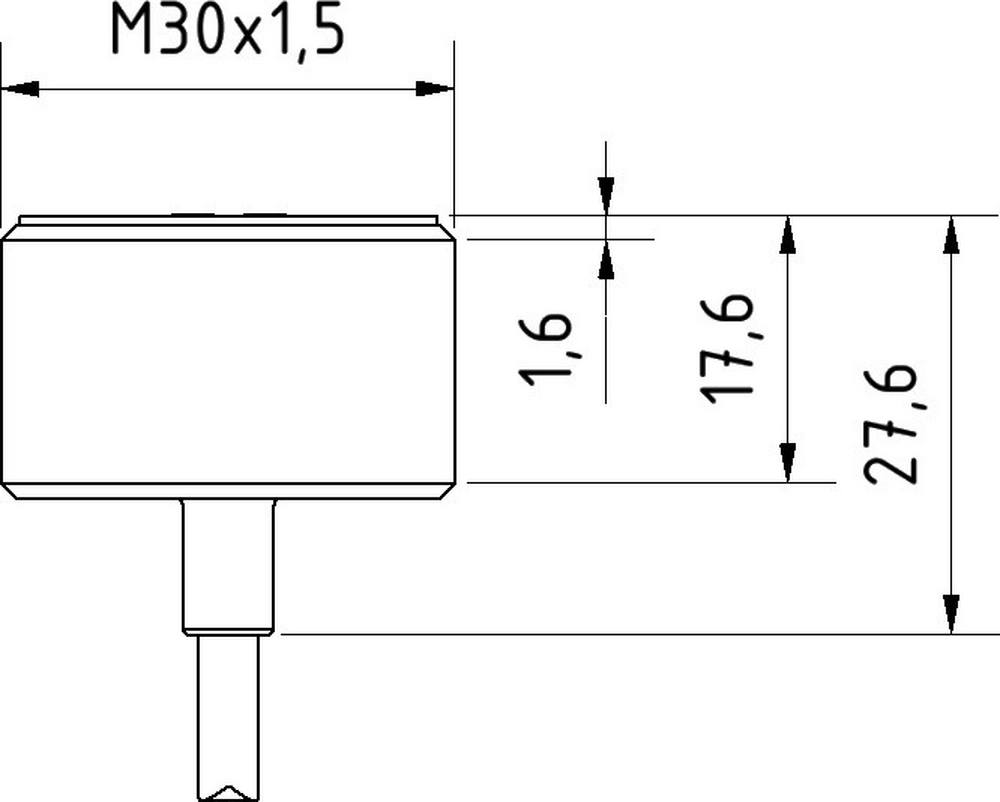

- dimensions
other properties
- Ambient temperature
- 0 - 140°C
- Reference medium / object
- Standard measuring plate FE360 30x30x1mm
You can find accessories for IB30C148
in these product groups:
Assembly
Adapter sleeve M30 to Ø34
Clamp holder for IB30
Fixing material ball-head holder
Available
Fixing material design M30, high temperature
Mounting clip M12 connector/socket
Available
Mounting system, cylindrical, M30
Connection technology
Cable sockets M12 3-wire high-temperature
Other sensors
Power supply 24V DC / 100mA switching amplifier
Power supply 24V DC / 2 – 10A
Protection cap, teflon M30
Tool
Sensor tester
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
-
pdfFlyer unique sensor solutionsPDF-file, 2.6 MB
-
pdfFlyer inductive sensorsPDF-file, 16 MB
-
pdfFlyer sensors with enlarged temperature rangePDF-file, 3.1 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
-
pdfWhitepaper sensors for harsh enviromentsPDF-file, 1.6 MB
-
pdfWhitepaper inductive sensorsPDF-file, 1.4 MB
-
pdfWhitepaper high temperature sensorsPDF-file, 494 KB
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 202 inductive sensors (high temperature) |
| packaging dimensions | 200 x 30 x 300mm |
| gross weight | 390g |
| Carbon footprint | 1,86kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
