Inductive sensors - Norm switching distance
IM120120
| amount | price | discount |
|---|---|---|
| 1 | 32,90 € | – |
| 5 | 31,91 € | 3% / 0,99 € |
| 10 | 31,26 € | 5% / 1,65 € |
| 20 | 30,27 € | 8% / 2,63 € |
| 50 | 28,95 € | 12% / 3,95 € |
Available

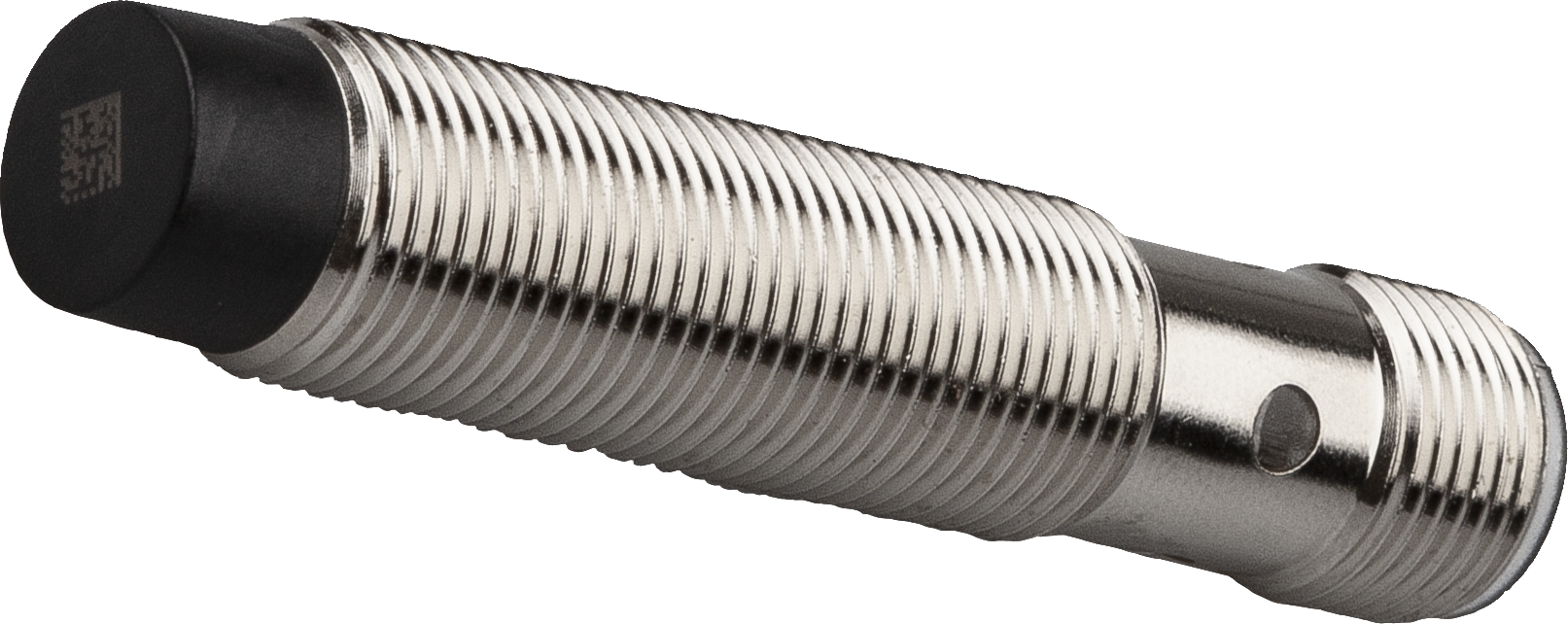

Sensor inductive, preferential, M12x1 60long, non-flush, Sn: 4, 10-30V DC, PNP NO, M12 plug connector 3-pin, IP67, nickel-plated (n-pltd) brass
including Nut
Compare
Inductive sensors - Norm switching distance
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Relative hysteresis
- 15%
- Correction factor (aluminum)
- 0.3
- Correction factor (copper)
- 0.2
- Correction factor (brass)
- 0.4
- Correction factor (St37)
- 1
- Correction factor (stainl. steel)
- 0.7
- No-load current
- 15mA
- Number of pins
- 3
- Relative repeat accuracy
- 10%
- Switching distance
- 4mm
- Switching frequency
- 400Hz
- Voltage drop
- 2V
- Display
- LED display
- Short circuit protection, Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Thread length
- 34mm
- Thread pitch
- 1mm
- Cable infeed
- axial
- Length
- 60mm
- Maximum tightening torque
- 10Nm
- Mechanical mounting condition for sensor
- non-flush
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PBT)
- Housing material
- Brass
- Thread dimension
- M12

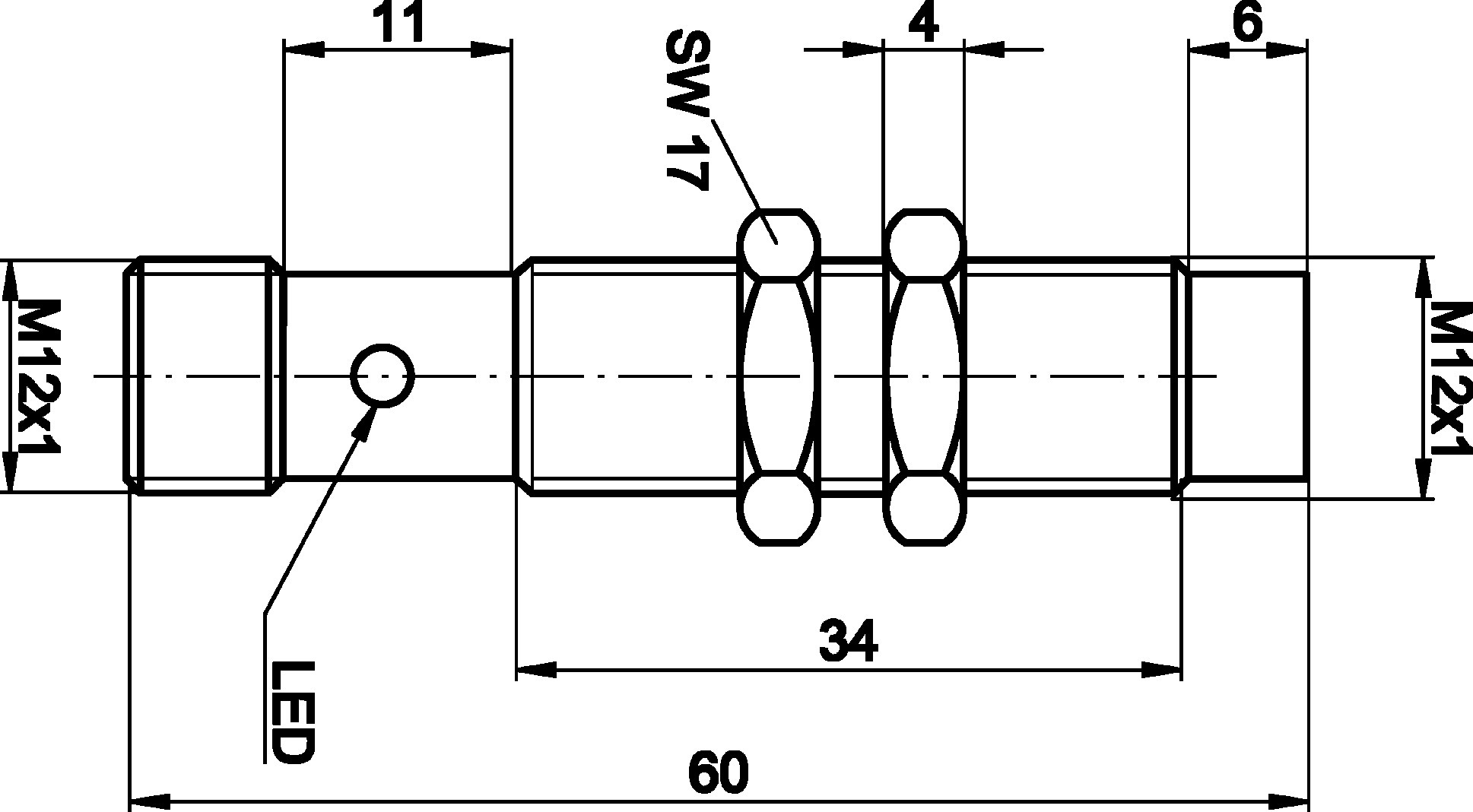

- dimensions
Other properties
- Ambient temperature
- -25 - 70°C
- Reference medium / object
- Standard measuring plate FE360 12x12x1mm
You can find accessories for IM120120
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system, cylindrical, M12
Available
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 3-wire
Cable sockets M12 3-wire with LED
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Cable sockets M12-socket with LED M8-connector 3-wire
Other sensors
Power supply 24V DC / 100mA switching amplifier
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 216 inductive sensors (preferential) |
| packaging dimensions | 100 x 17 x 120mm |
| gross weight | 30g |
| 0,14kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
