NEW IN THE PROGRAM
IN800127
| amount | price | discount |
|---|---|---|
| 1 | 229,00 € | – |
| 5 | 222,13 € | 3% / 6,87 € |
| 10 | 217,55 € | 5% / 11,45 € |
| 20 | 210,68 € | 8% / 18,32 € |
| 50 | 201,52 € | 12% / 27,48 € |
On demand

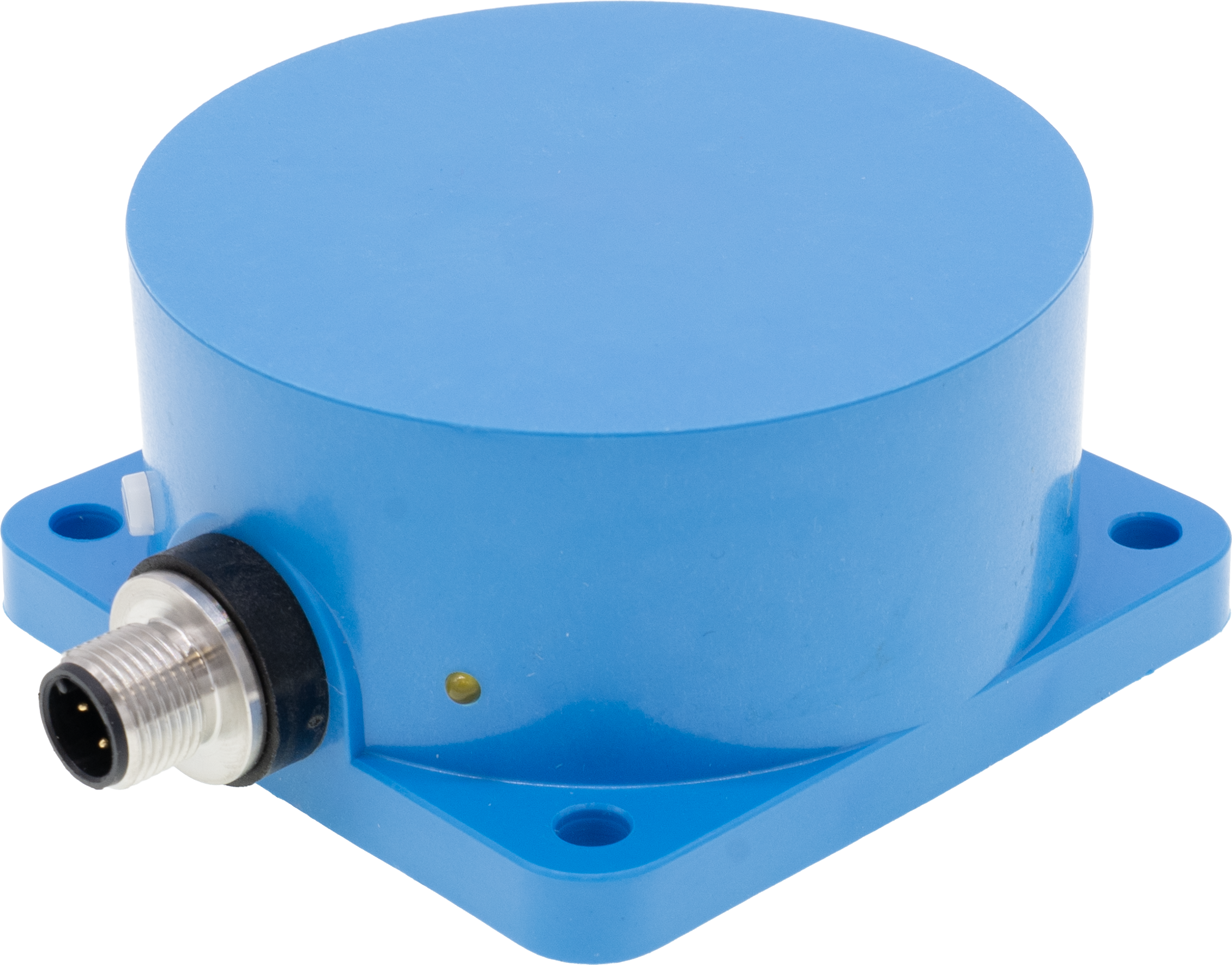

Inductive sensor, Ø80 mm, 40 long, non-flush, Sn: 70, 10–30 V DC, PNP NO, 4-pin M12 connector, IP67, PTB, Factor 1
including Screwdriver
Compare
Inductive sensors - Increased switching distance
Inductive proximity switches are contactless sensors. They detect all conductive metals, regardless of whether they are moving or not. The achievable switching distance of the devices depends on the object material and its dimensions. These vibration-resistant sensors can be approached laterally or from the front. Inductive proximity switches are used for presence detection (e.g., product carriers), positioning (e.g., furnace doors), counting (e.g., nuts/screws), speed detection (e.g., on gears), in conveyor systems (e.g., hose feeders), or for distance measurements (e.g., press-fit inspection) of metallic objects.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Potentiometer
- Relative hysteresis
- 10%
- Correction factor (aluminum)
- 1
- Correction factor (copper)
- 1
- Correction factor (brass)
- 1
- Correction factor (St37)
- 1
- Correction factor (stainl. steel)
- 1
- No-load current
- 25mA
- Number of pins
- 4
- Switching distance
- 70mm
- Voltage drop
- 2V
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
- Operating voltage
- Electrical connection
mechanical properties
- Design
- Cylinder plain
- Length
- 40mm
- Mechanical mounting condition for sensor
- non-flush
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PBT)
- Housing material
- PBT
- Diameter
- 80mm
- dimensions
other properties
- Ambient temperature
- -25 - 75°C
You can find accessories for IN800127
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system, cylindrical, M12
Available
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 3-wire
Cable sockets M12 3-wire with LED
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Cable sockets M12-socket with LED M8-connector 3-wire
Other sensors
Power supply 24V DC / 100mA switching amplifier
Datasheets
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 477 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 95 x 60 x 225mm |
| gross weight | 335g |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
