Inductive sensors - Switching amplifiers
IV98F001
| amount | price | discount |
|---|---|---|
| 1 | 2.640,00 € | – |
| 5 | 2.560,80 € | 3% / 79,20 € |
| 10 | 2.508,00 € | 5% / 132,00 € |
| 20 | 2.428,80 € | 8% / 211,20 € |
| 50 | 2.323,20 € | 12% / 316,80 € |
On demand
Inductive amplifier, 260x160x93mm, 24V DC, change-over contact (NO/NC), terminals, IP67, aluminum, LED
Compare
Inductive sensors - Switching amplifiers
Inductive proximity switches are contactless sensors. They detect all conductive metals, regardless of whether they are moving or not. The switching distance that the devices can achieve depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or from the front. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. oven flaps), counting (e.g. nuts / screws), speed detection (e.g. on gear wheels), on conveyor systems (e.g. hose feeds) or distance measurement (e.g. press-fit inspection) of metallic objects.
Electrical properties
- Number of contacts as change-over contact
- 1
- Type of switching function
- Change-over contact (NO/NC)
- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Rated switching current
- 2,000mA
- No-load current
- 250mA
- Switching capacity
- 125VA
- Switching voltage AC
- 250V
- Switching voltage DC
- 220V
- Display
- LED display
- Operating voltage

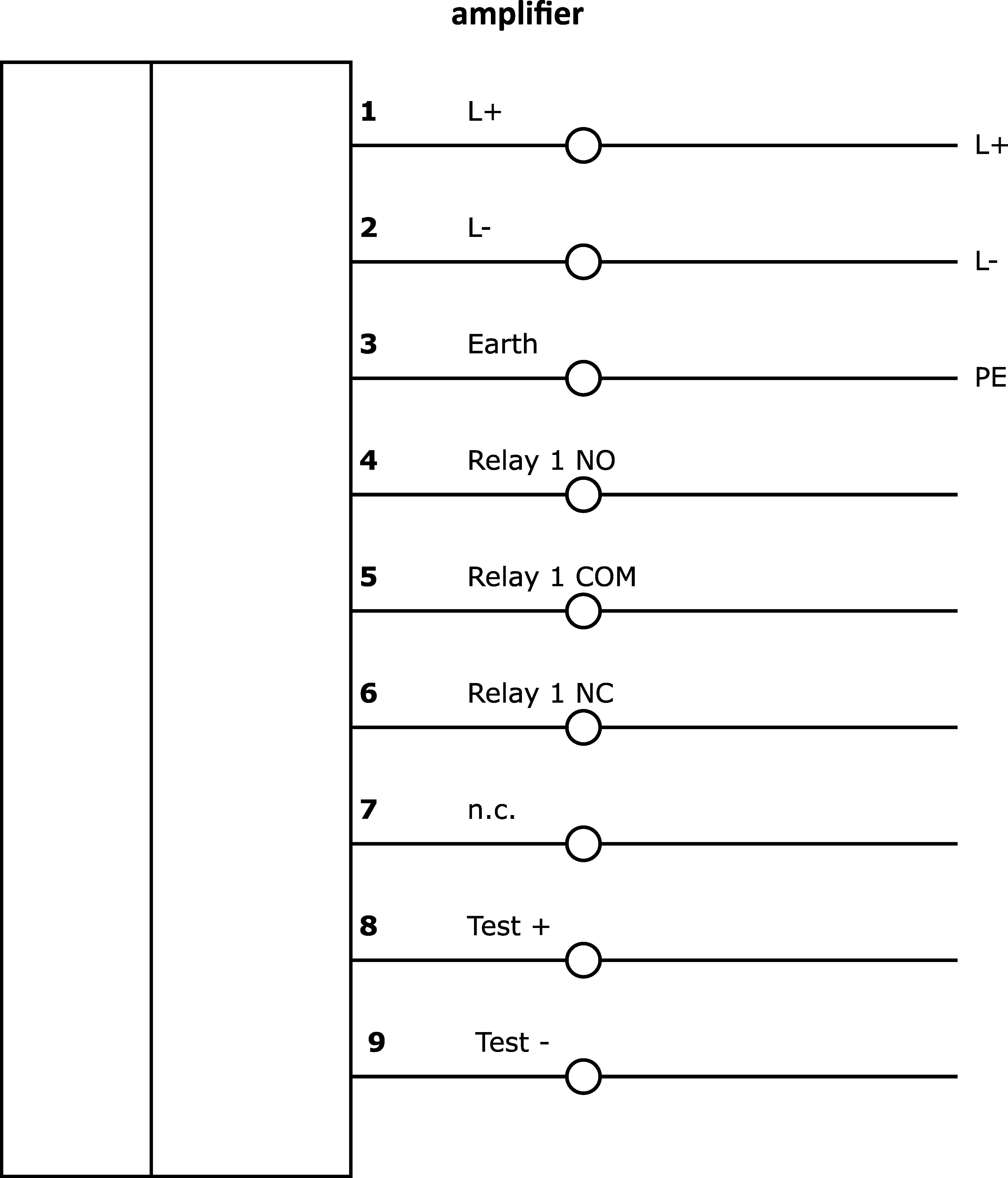

- Electrical connection
Mechanical properties
- Design
- Cuboid
- Width
- 160mm
- Height
- 93mm
- Length
- 260mm
- Mounting method
- Surface mounted (plaster)
- Degree of protection (IP)
- IP67
- Housing material
- Aluminum
- dimensions
Other properties
- Ambient temperature
- -25 - 60°C
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27210121 |
| eClass-7.1 | 27210121 |
| eClass-8.0 | 27210121 |
| eClass-9.0 | 27210121 |
| eClass-9.1 | 27210121 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 203 inductive sensors (diverse) |
| packaging dimensions | 255 x 167 x 355mm |
| gross weight | 3,760g |
| 9,75kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
