Inductive sensors - Switching amplifier for high temperature sensors
IV991196
| amount | price | discount |
|---|---|---|
| 1 | 170,70 € | – |
| 5 | 165,58 € | 3% / 5,12 € |
| 10 | 162,17 € | 5% / 8,54 € |
| 20 | 157,04 € | 8% / 13,66 € |
| 50 | 150,22 € | 12% / 20,48 € |
Available
Amplifier inductive, high temperature, 75x99x22mm, 10-35V DC, PNP NO, terminal, IP20, plastic, LED
Compare
Inductive sensors - Switching amplifier for high temperature sensors
Inductive proximity switches are contactless sensors. They detect all conductive metals, regardless of whether they are moving or not. The switching distance that the devices can achieve depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or from the front. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. oven flaps), counting (e.g. nuts / screws), speed detection (e.g. on gear wheels), on conveyor systems (e.g. hose feeds) or distance measurement (e.g. press-fit inspection) of metallic objects.
Electrical properties
- Number of channels
- 1
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Clamped terminal connection

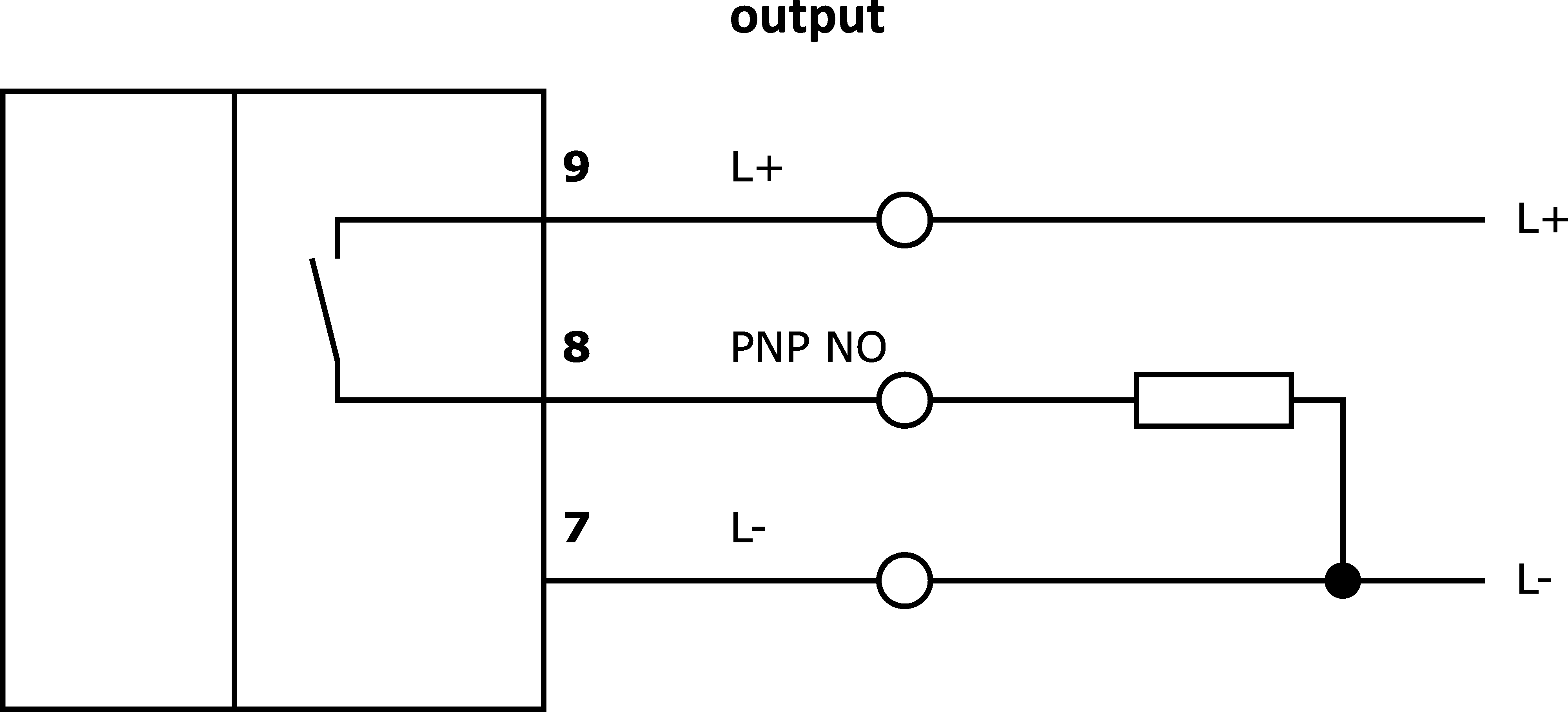

- Type of switching output
- PNP
- Rated switching current
- 300mA
- Turn-on delay
- 0.1s
- Switching capacity
- 7.2VA
- Switching voltage
- 35V
- Display
- LED display
- Operating voltage
- Electrical connection
Mechanical properties
- Design
- Cuboid
- Width
- 22.5mm
- Height
- 75mm
- Length
- 99mm
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic
- dimensions
Other properties
- Ambient temperature
- -25 - 70°C
- Version
- Built-in device
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 477 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer unique sensor solutionsPDF-file, 2.6 MB
-
pdfFlyer inductive sensorsPDF-file, 16 MB
-
pdfFlyer sensors with enlarged temperature rangePDF-file, 3.1 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27210121 |
| eClass-7.1 | 27210121 |
| eClass-8.0 | 27210121 |
| eClass-9.0 | 27210121 |
| eClass-9.1 | 27210121 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 202 inductive sensors (high temperature) |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 100g |
| 1,73kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
