Fiber optic sensors - Fiber optics plastic fiber barrier
LS208161
| amount | price | discount |
|---|---|---|
| 1 | 86,90 € | – |
| 5 | 84,29 € | 3% / 2,61 € |
| 10 | 82,56 € | 5% / 4,35 € |
| 20 | 79,95 € | 8% / 6,95 € |
| 50 | 76,47 € | 12% / 10,43 € |
Available

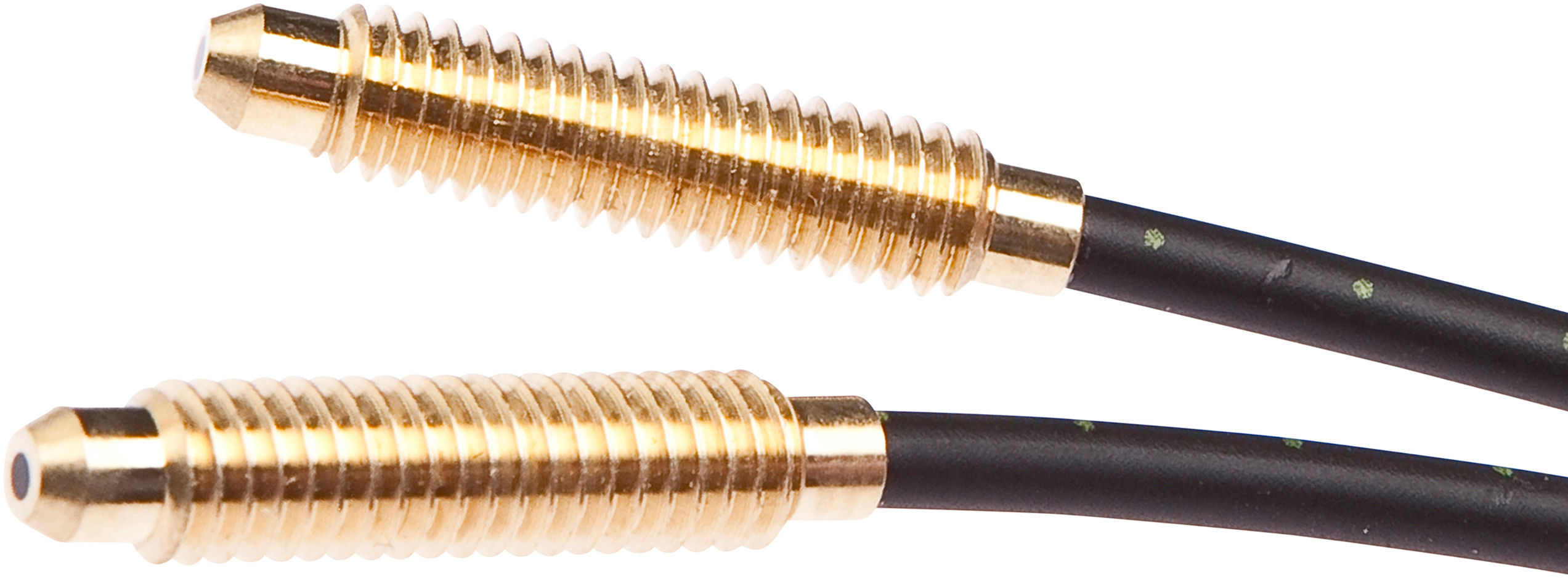

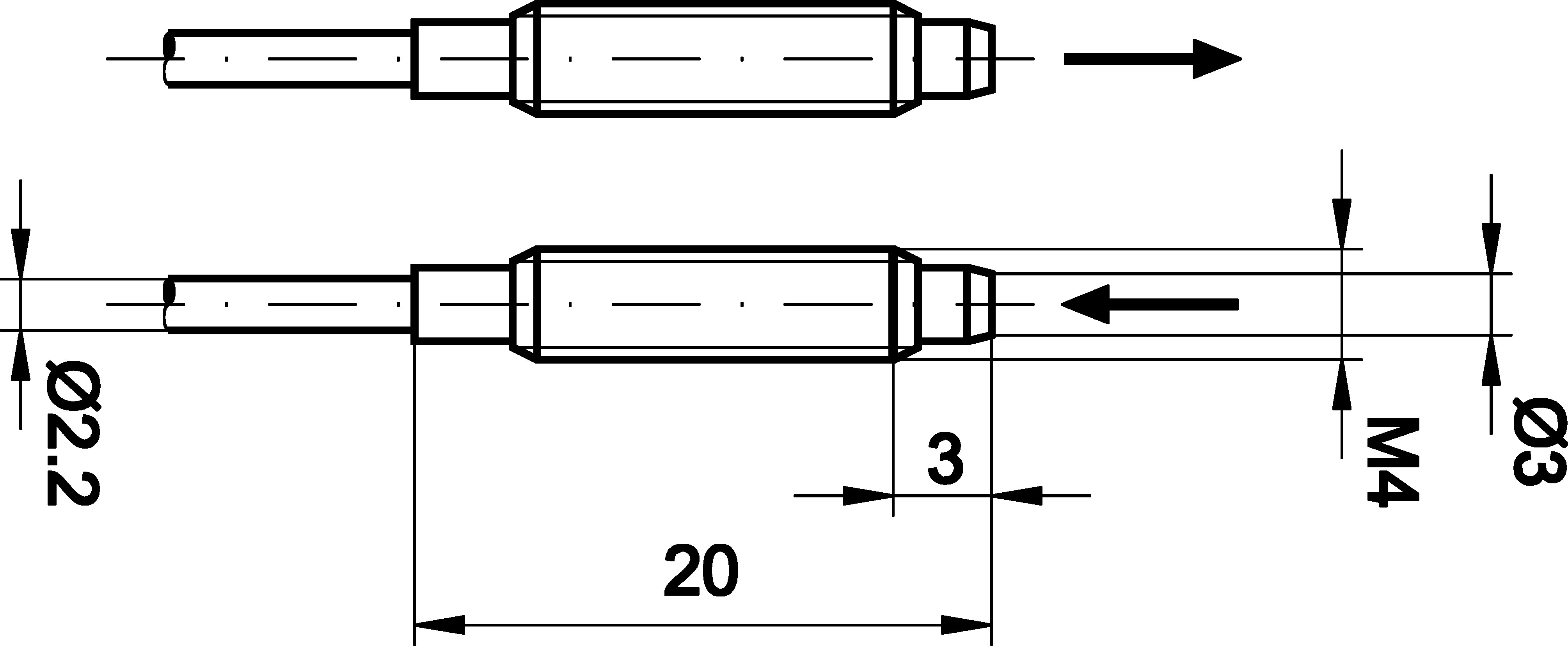

fiber optic barrier, 2m, head: Brass 20long M4 M4x0.7, Light exit Axial, conductor: Plasticfiber+PE, Sn: 200, -30-70°C, IP67
including 4x Nut, 4x Washer
Compare
Fiber optic sensors - Fiber optics plastic fiber barrier
Fiber optics in combination with the appropriate fiber optic amplifier function as contactless and wear-free position switches that can also be used in harsh environmental conditions. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). Because the ends and heads of the fiber optics have small dimensions and the fiber optics are flexible, very elegant solutions can be created for detecting objects in places that are difficult to access. Fiber optics can be used without special precautions in potentially explosive areas and in zones with electrical and/or magnetic fields (high-voltage installations, electrical welding equipment) as their function is not thereby affected. Fiber optics are available in versions for implementing the function as through-beam sensor or diffuse reflection sensor.
Electrical properties
- Bending section of the sensing head
- 0mm
- Bending angle of the sensing head
- 0°
- Short-circuit protection
- No
- Sensing head length
- 20mm
- Switching distance
- 0 - 200mm
- Reverse polarity protection
- No
Mechanical properties
- Type of fiber
- Mono
- Design
- Cylinder plain
- Bending radius (fixed)
- 15mm
- Sensing head diameter 1
- 3
- Fiber diameter
- 1mm
- Fiber optic cable diameter, receiver end
- 2.2
- Fiber optic cable diameter, transmitter end
- 2.2
- Sensing head diameter
- 4mm
- Number of fibers
- 2
- Length
- 2,000mm
- Degree of protection (IP)
- IP67
- Sheathing material
- Plastic (PE)
- Fiber optics core material
- Plastic
- Sensing head material
- Brass
- Design of the fiber optic connection
- terminal connection
- Thread dimension of sensing head
- M4
- Thread dimension of sensing head 2
- M4
- Ejection control
- Yes
- Punching tools
- Yes
- Heavy soiling
- Yes
Optical properties
- Light exit
- axial
Other properties
- Sensing head thread pitch 2
- 0.7
- Ambient temperature
- -30 - 70°C
- Feeding technology
- Yes
- Through-beam sensor
Color sensors with plastic fiber optic connection
Fiber cutter
Amplifier for plastic fiber optics
| Classification | Class |
|---|---|
| eClass-7.0 | 27279208 |
| eClass-7.1 | 27279208 |
| eClass-8.0 | 27279208 |
| eClass-9.0 | 27270905 |
| eClass-9.1 | 27270905 |
| ETIM-6.0 | EC002651 |
| ETIM-7.0 | EC002651 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| IPF Product Group | 151 plastic fibers |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 30g |
| Customs tariff number | 90011090 |
| WEEE number | 40951076 |
