Magnetic field sensors - Proximity switches

MR124100

List price

50,30 €

amount	price	discount
1	50,30 €	–
5	48,79 €	3% / 1,51 €
10	47,79 €	5% / 2,52 €
20	46,28 €	8% / 4,02 €
50	44,26 €	12% / 6,04 €

On demand

Sensor magnetic, reed, M12x1 69long, 250V AC/DC, 1x reed contact NO, cable 2-pole 1m PVC, IP67, nickel-plated (n-pltd) brass

including Nut

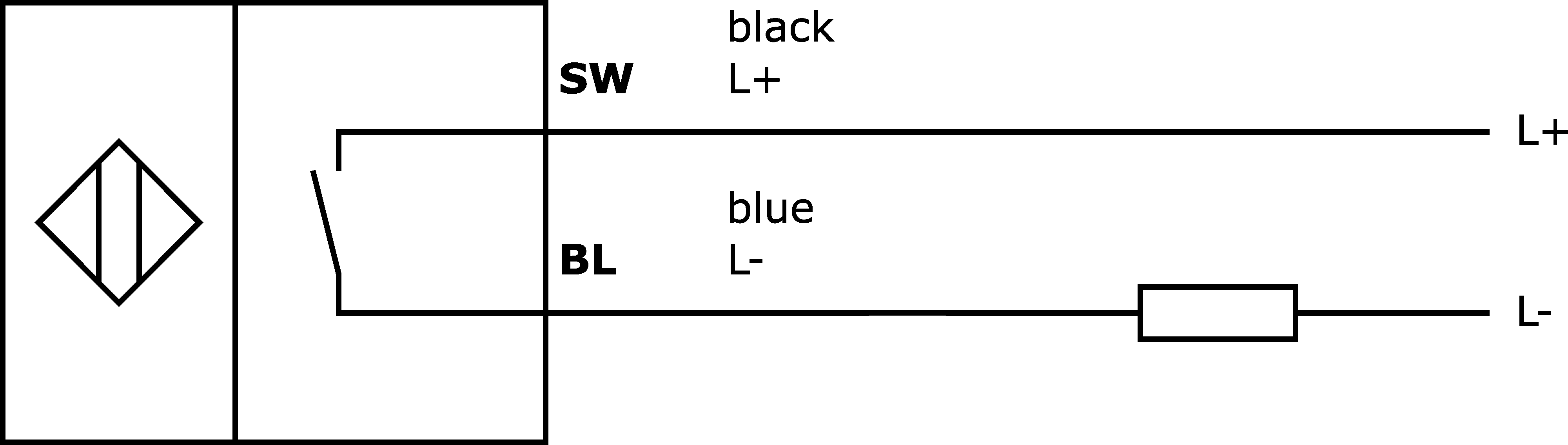

circuit diagram

Compare

Magnetic field sensors - Proximity switches

Electrical properties

Response/decay time: 2ms

Number of switching outputs: 1

Type of switching function: Normally open contact (NO)

Type of electrical connection: Cable

Type of switching output: Dry reed contact

Rated switching current: 480mA

Contact life: ≤ 10^5 ... 10^6 circuitry

Switching distance: 12mm

Switching frequency: 250Hz

Decay time: 1ms

Mechanical properties

Conductor cross-section: 0.75mm²

Number of cores: 2

Tightening torque: 10Nm

Design: Cylinder, screw-thread

Thread length: 69mm

Thread pitch: 1mm

Cable length: 1m

Length: 69mm

Degree of protection (IP): IP67

Housing material: Nickel-plated brass

Material of cable sheath: Plastic (PVC)

Thread dimension: M12

Diameter: 12mm

Other properties

Ambient temperature: -25 - 70°C

Reference medium / object
