Magnetic field sensors - Proximity switches

MR124104

MR124104
List price
50,30 €
amount price discount
1 50,30 € –
5 48,79 € 3% / 1,51 €
10 47,79 € 5% / 2,52 €
20 46,28 € 8% / 4,02 €
50 44,26 € 12% / 6,04 €
On demand
Sensor magnetic, reed, M12x1 45long, 150V AC/DC, 1x reed contact NO, cable tail 2-pin 2.5m PVC, IP67, nickel-plated (n-pltd) brass, LED
including Nut

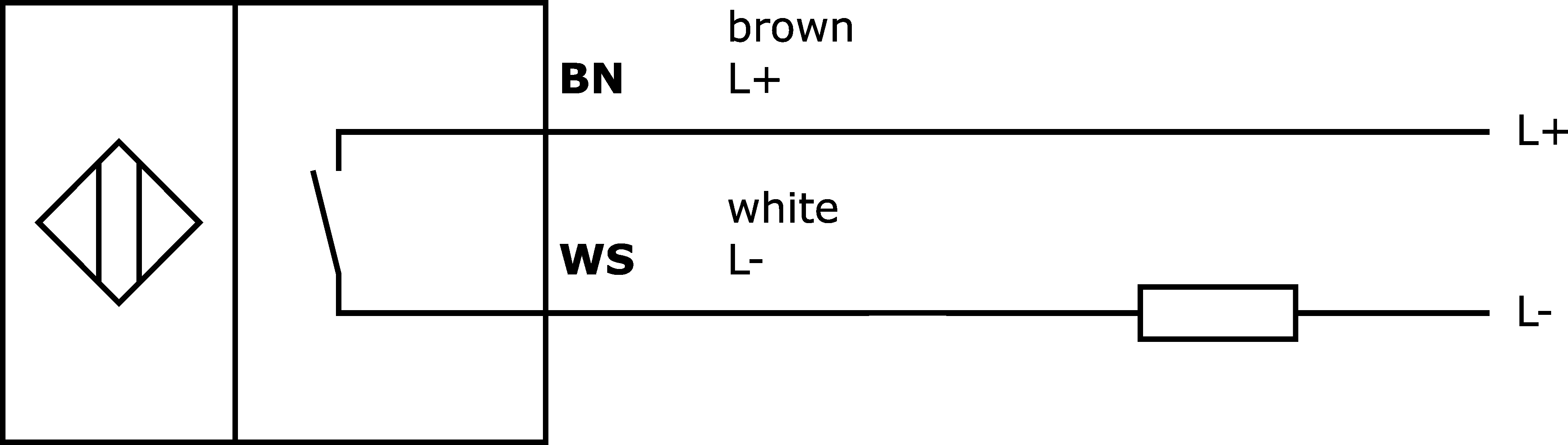

circuit diagram
Compare

Magnetic field sensors - Proximity switches

Electrical properties

Response/decay time
2ms
Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of electrical connection
Cable
Type of switching output
Dry reed contact
Rated switching current
500mA
Contact life
≤ 10^5 ... 10^6 circuitry
Switching distance
40mm
Switching frequency
250Hz
Decay time
0.1ms
Display
LED display

Mechanical properties

Conductor cross-section
0.34mm²
Number of cores
2
Tightening torque
10Nm
Design
Cylinder, screw-thread
Thread length
35mm
Thread pitch
1mm
Cable length
2.5m
Length
45mm
Degree of protection (IP)
IP67
Housing material
Nickel-plated brass
Material of cable sheath
Plastic (PVC)
Thread dimension
M12
Diameter
12mm

Other properties

Ambient temperature
-25 - 70°C
Reference medium / object
You can find accessories for MR124104 in these product groups:

Assembly

Fixing material design M12

AY000025
AY000025
accessories, Hexagon nut, M12x1, Wrench size 17mm, Brass Nickel-plated
2,60 €
Your price
Available
AY000032
AY000032
accessories sensor, Ø12mm, Aluminum, For sensor 12mm, for Wall mounting, Screw mounting
14,50 €
Your price
Available
AY000037
AY000037
accessories, Hexagon nut, M12x1, Wrench size 17mm, Stainless steel
5,00 €
Your price
Available
AY000049
AY000049
accessories sensor, Ø12mm, Plastic, For sensor 12mm, for Wall mounting, Screw mounting
5,80 €
Your price
Available
AY000050
AY000050
accessories sensor, Ø12mm, Plastic, For sensor 12mm, for Wall mounting, Screw mounting, With positive stop
5,80 €
Your price
Available
AY000053
AY000053
accessories sensor, Fixture kit, Plastic
4,20 €
Your price
Scarce
AY000054
AY000054
accessories sensor, Mounting angle bracket, 61x30x40mm, Mounting material for holder, Plastic, 90°
5,10 €
Your price
Available
AY000099
AY000099
accessories sensor, Mounting angle bracket, 32x23x36mm, Toothed washer for sensor, bracket, Stainless steel
7,30 €
Your price
Available
AY000115
AY000115
accessories sensor, Fixture kit, Metal, ball joint
32,20 €
Your price
Available
AY000169
AY000169
Accessories Sensor, mounting bracket, 36x36x30mm, V2A
5,30 €
Your price
Available
AY98C074
AY98C074
accessories sensor, Mounting angle bracket, Angle
92,20 €
Your price
On demand
AY98C075
AY98C075
accessories sensor, Mounting angle bracket, M12x1 14long, Angle
103,60 €
Your price
On demand
AY98C739
AY98C739
accessories sensor, Mounting angle bracket, 30x24x20mm, Angle
45,70 €
Your price
On demand

Mounting system, cylindrical, M12

AY000159
AY000159
Accessories sensor, mounting tube, Ø12mm 200long, aluminum anodized/anodized
7,10 €
Your price
Available
AY000160
AY000160
Accessories sensor, mounting tube, Ø12mm 500long, aluminum anodized/anodized
9,90 €
Your price
Scarce
AY000161
AY000161
Accessories Sensor, foot clamp holder, Ø38mm 25 high, aluminum
21,80 €
Your price
Available
AY000162
AY000162
Accessories, magnetic, Ø43mm, neodymium-iron-boron, inside thread M5, rubber
16,70 €
Your price
Available
AY000163
AY000163
Accessories Sensor, clamp holder, 16x38x16mm, aluminum
9,60 €
Your price
Available
AY000164
AY000164
Sensor accessories, surface-mounted terminal holder, 16x32x16mm, inside thread 6, aluminum
10,30 €
Your price
Available
AY000165
AY000165
Accessories Sensor, parallel clamp holder, 16x45x16mm, aluminum
16,90 €
Your price
Available
AY000166
AY000166
Accessories Sensor, cross clamp holder, 16x48x16mm, aluminum
13,50 €
Your price
Scarce
AY000167
AY000167
Accessories Sensor, adjustable cross clamp holder, 20x72x20mm, aluminum
29,00 €
Your price
Available
AY000169
AY000169
Accessories Sensor, mounting bracket, 36x36x30mm, V2A
5,30 €
Your price
Available

Connection technology

Inverters – terminal

VY850001
VY850001
Inverter/signal-inversion/turn-off delay, 85x65x18mm, 0.01-10s, 12-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Available
VY850002
VY850002
Inverter/signal-inversion/turn-off delay, 85x65x18mm, 0.01-10s, 12-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Scarce
VY85C102
VY85C102
Inverter/signal-inversion/turn-on delay, 85x65x18mm, 0.01-10s, 10-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Scarce

Sheath

AY000141
AY000141
Plastic sheath, Ø17mm, Inner diameter 10mm, -40-250°C, Glass fiber with silicone rubber, Short-term resistance to weld…
39,30 €
Your price
Available

Other sensors

Magnets for magnetic proximity switches

AM000001
AM000001
Accessories, magnetic, Ø20mm 6.5long, strontium ferrite, internal hole Ø4.3mm, max. 130°C
5,50 €
Your price
Available
AM000002
AM000002
Accessories, magnetic, Ø32mm 15long, strontium ferrite, internal hole Ø5.6mm, max. 130°C
8,10 €
Your price
Available
AM000009
AM000009
Accessories, magnetic, Ø30mm 10long, strontium ferrite, 25-130°C
7,10 €
Your price
Available
AM000010
AM000010
Accessories, magnetic, Ø35mm 17long, internal hole Ø5.6mm, plastic
27,30 €
Your price
Scarce
AM000020
AM000020
Accessories, magnetic, Ø10mm 3long, samarium-cobalt, 50-180°C
16,30 €
Your price
Available
AM000107
AM000107
Accessories, magnetic, Ø5mm 2high, Delta SMCO
6,40 €
Your price
Available
Classification Class
eClass-7.0 27270104
eClass-7.1 27270104
eClass-8.0 27270104
eClass-9.0 27270104
eClass-9.1 27270104
ETIM-6.0 EC002544
ETIM-7.0 EC002544
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 230 magnetic sensors
packaging dimensions 77 x 25 x 123mm
gross weight 90g
0,21kg CO₂e
Customs tariff number 85365080
WEEE number 40951076
